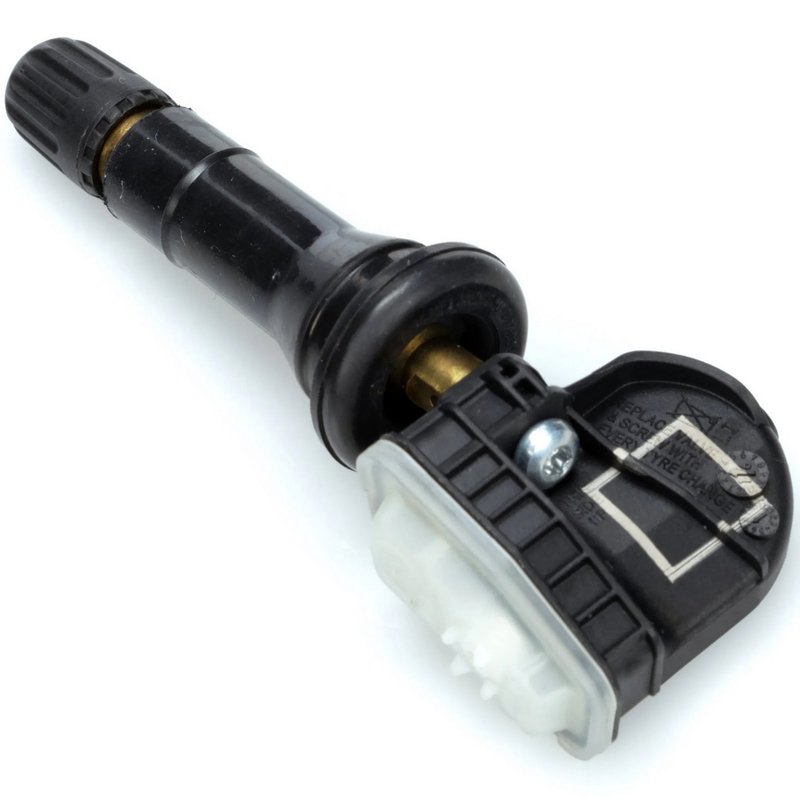

Schrader Valves 20602 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 20602 |
|---|---|
| Material | Rubber |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Snap-in |
| Mounting Hardware Included | Yes |
| Valve Color | Black |
| Frequency | 315mhz |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Tpms sensor with rubber valve |
| Package Quantity | 1 |
| Fits | Subaru · 59 vehicles |
Direct monitoring. Tracks tire pressure in real time for accurate readings.
Snap-in design. Installs easily with a rubber valve and included hardware.
Pre-programmed sensor. Ready to use with non-programmable activation.
Cross-references Continental SE10003A, Standard Ignition TPM93A and 8023 for the same application. See all 6.
Schrader TPMS Sensor for Subaru Applications
The Schrader Valves 20602 is a direct tire pressure monitoring system sensor built for Subaru vehicles that use a 315MHz TPMS signal. It uses a snap-in rubber valve design with a pre-programmed, non-programmable setup for straightforward service on supported applications.
Compatible With select Subaru Crosstrek, Forester, Impreza, Legacy, Outback, Ascent, WRX, XV, and WRX STI models, this Schrader TPMS sensor 20602 provides real-time pressure signal transmission for direct monitoring systems.
Key Features
- Direct TPMS sensor with real-time pressure signal transmission
- 315MHz frequency for supported Subaru applications
- Pre-programmed, non-programmable sensor format
- Snap-in mounting method with black rubber valve
- Plastic housing with battery power source
- Mounting hardware included
- Manufacturer part number: 20602
Product Details
The Schrader Valves 20602 TPMS sensor is intended for direct tire pressure monitoring systems that report tire pressure data to the vehicle in real time. Its snap-in rubber valve construction and black valve finish match common OE-style service requirements, while the battery-powered sensor housing supports normal TPMS operation on listed Subaru fitments. This part cross-references Continental SE10003A for the same application.
Use this sensor when servicing Subaru TPMS systems on listed Crosstrek, Forester, Impreza, Legacy, Outback, Ascent, WRX, XV, and WRX STI models. The 20602 part number is also referenced in interchange listings with OE-style service numbers used across Subaru TPMS applications.
What It Helps Address
- TPMS warning light caused by a failed tire pressure sensor
- Loss of tire pressure signal on direct monitoring systems
- Sensor replacement during tire service or wheel replacement
- Incorrect or unstable pressure readings from an aging TPMS unit
- Service needs on Subaru vehicles using a 315MHz sensor
Installation Notes
Verify vehicle year, model, and TPMS frequency before installation. This sensor is pre-programmed and non-programmable, so it should be matched to the listed Subaru applications and installed according to TPMS service procedures. For the 2017-2021 Subaru Crosstrek, 2017-2021 Forester, 2016-2021 Impreza, 2018-2021 Outback, 2018-2021 WRX, 2018-2020 Legacy, 2019-2021 Ascent, and 2017 WRX STI applications, follow the specified torque notes in the fitment data during service.
After installation, perform the required TPMS relearn or initialization procedure for the vehicle. Confirm proper sensor communication and pressure reporting before returning the vehicle to service.
Quality Assurance
Schrader Valves is a recognized TPMS component manufacturer, and this sensor is backed by a 1-year manufacturer warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Subaru | Crosstrek | N/A | Quantity Included: 1 |
| 2025 | Subaru | Forester | N/A | Quantity Included: 1 |
| 2025 | Subaru | Impreza | N/A | Quantity Included: 1 |
| 2025 | Subaru | Legacy | N/A | Quantity Included: 1 |
| 2025 | Subaru | Outback | N/A | Quantity Included: 1 |
| 2024 | Subaru | Ascent | N/A | Quantity Included: 1 |
| 2024 | Subaru | Crosstrek | N/A | Quantity Included: 1 |
| 2024 | Subaru | Forester | N/A | Quantity Included: 1 |
| 2024 | Subaru | Impreza | N/A | Quantity Included: 1 |
| 2024 | Subaru | Legacy | N/A | Quantity Included: 1 |
| 2024 | Subaru | Outback | N/A | Quantity Included: 1 |
| 2024 | Subaru | WRX | N/A | Quantity Included: 1 |
| 2023 | Subaru | Ascent | N/A | Quantity Included: 1 |
| 2023 | Subaru | Crosstrek | N/A | Quantity Included: 1 |
| 2023 | Subaru | Forester | N/A | Quantity Included: 1 |
| 2023 | Subaru | Impreza | N/A | Quantity Included: 1 |
| 2023 | Subaru | Legacy | N/A | Quantity Included: 1 |
| 2023 | Subaru | Outback | N/A | Quantity Included: 1 |
| 2023 | Subaru | WRX | N/A | Quantity Included: 1 |
| 2022 | Subaru | Crosstrek | N/A | Quantity Included: 1 |
| 2022 | Subaru | Forester | N/A | Quantity Included: 1 |
| 2022 | Subaru | Impreza | N/A | Quantity Included: 1 |
| 2022 | Subaru | Legacy | N/A | Quantity Included: 1 |
| 2022 | Subaru | Outback | N/A | Quantity Included: 1 |
| 2022 | Subaru | WRX | N/A | Quantity Included: 1 |
| 2021 | Subaru | Ascent | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Subaru | Crosstrek | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Subaru | Forester | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Subaru | Legacy | N/A | Quantity Included: 1 |
| 2021 | Subaru | Outback | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Subaru | WRX | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Ascent | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Crosstrek | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Forester | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Legacy | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | Outback | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Subaru | WRX | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Ascent | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Crosstrek | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Forester | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Legacy | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | Outback | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | WRX | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2019 | Subaru | XV | N/A | Quantity Included: 1 |
| 2018 | Subaru | Crosstrek | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | Forester | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | Legacy | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | Outback | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | WRX | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2018 | Subaru | XV | N/A | Quantity Included: 1 |
| 2017 | Subaru | Crosstrek | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2017 | Subaru | Forester | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2017 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2017 | Subaru | WRX STI | N/A | Quantity Included: 1 |
| 2016 | Subaru | Impreza | N/A | 433MHz; Screw torque: 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
