Home› Tire and Wheel > Tire Service› Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service Kit
Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service KitOE Quality 60-Day Returns

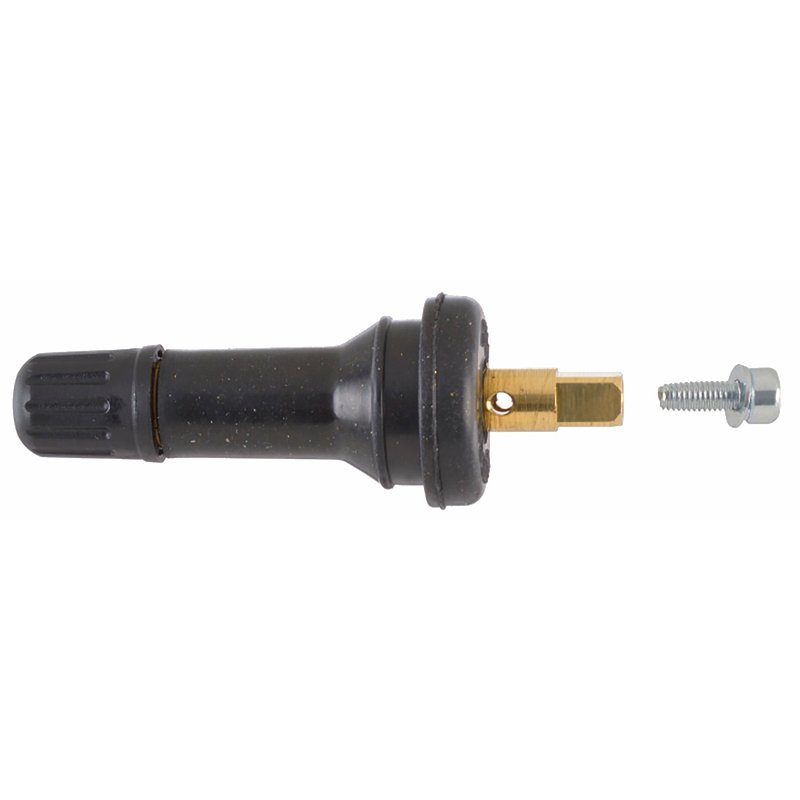

Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service Kit - view 1
Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service Kit - view 2
Part #: 20635

Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service Kit

⚙️ 35 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$17.84Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Jeep and Ram, 1500, 1500 Classic, 2500, 3500, and Cherokee
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Tire Pressure Monitoring System (TPMS) Sensor Service Kit options

Reliable TPMS Sensor Service Kit for Jeep and Ram Vehicles

The Schrader Valves 20635 Tire Pressure Monitoring System (TPMS) Sensor Service Kit is designed to maintain accurate tire pressure monitoring on select Jeep and Ram models. This kit includes essential components to service TPMS sensors, ensuring your vehicle's tire pressure system functions properly.

  • Includes 50 individual bags, each containing 1 rubber valve assembly and 1 valve
  • Caps included for secure valve protection
  • Grommets not required for installation
  • Compatible with Jeep Cherokee and Ram 1500, 1500 Classic, 2500, and 3500 models
  • Manufacturer warranty of 1 year for quality assurance

Comprehensive TPMS Sensor Service Kit Details

This Schrader Valves 20635 kit provides 50 individual service bags, each containing a rubber valve assembly and a valve, designed to replace worn or damaged components in your vehicle's TPMS sensors. The inclusion of valve caps helps protect the valve stems from dirt and debris, contributing to the longevity and reliability of the tire pressure monitoring system. Since grommets are not required, installation is straightforward for compatible Jeep and Ram models. This kit supports maintaining accurate tire pressure readings, which is critical for vehicle safety and tire performance.

Compatible Jeep and Ram Models

This TPMS sensor service kit is compatible with a range of Jeep and Ram vehicles, including Jeep Cherokee and Ram 1500, 1500 Classic, 2500, and 3500 models. Using the Schrader Valves 20635 ensures proper fitment and function for these specific vehicles, helping maintain factory-level tire pressure monitoring system performance.

Common Applications and Issues Addressed

  • Replacement of worn or leaking rubber valve assemblies in TPMS sensors
  • Restoring proper tire pressure sensor function after valve damage
  • Preventing air leaks caused by damaged or missing valve caps
  • Maintaining accurate tire pressure readings to support vehicle safety systems
  • Supporting routine TPMS sensor maintenance for Jeep Cherokee and Ram trucks

Installation Notes and Tips

Installation of the Schrader Valves 20635 TPMS sensor service kit is simplified by the absence of grommets, reducing the number of components needed. Each bag contains one valve and one rubber valve assembly, allowing for individual sensor servicing. Ensure the valve caps are securely tightened to prevent contamination and air leaks. It is recommended to follow vehicle-specific service manuals for proper TPMS sensor handling and installation procedures.

Quality Assurance and Warranty

Schrader Valves backs the 20635 TPMS sensor service kit with a 1-year manufacturer warranty, reflecting confidence in the product's durability and performance. This warranty provides assurance that the kit meets industry standards for tire pressure monitoring system components, supporting reliable operation on compatible Jeep and Ram vehicles.

BrandSchrader Valves
Part Number20635
Caps IncludedYes
Grommets IncludedNot required
Kit Contents50 individual bags, each containing 1 rubber valve assembly and 1
Manufacturer Warranty1 year
Valves Included1

This part fits 35 vehicles. Search below:

YearMakeModelPositionNotes
2021JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021Ram1500 ClassicN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020Ram1500 ClassicN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019Ram1500 ClassicN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014JeepCherokeeN/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014Ram1500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014Ram2500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014Ram3500N/A50 pack; TRW rubber snap-in valve with square Keying; Nut torque = 11.5in-lbs, 1.3 Nm; Valve core torque = 3.5 in-lbs, 0.4Nm

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

920228TPM204VS65

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
