Schrader Valves 20720 Tire Pressure Monitoring System (TPMS) Sensor
OE Quality 60-Day Returns
Schrader Valves

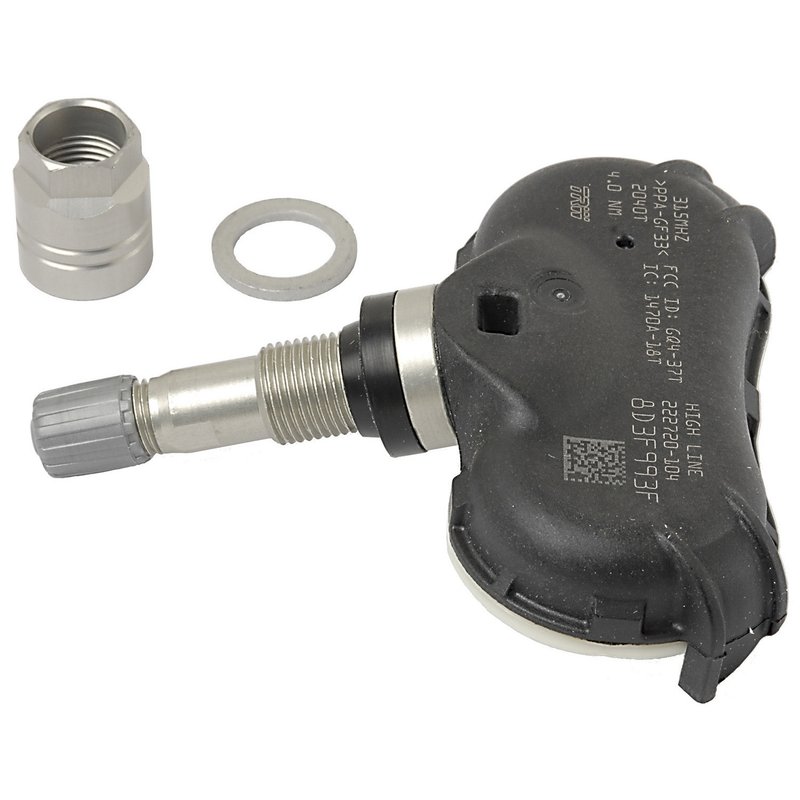

Schrader Valves 20720 Tire Pressure Monitoring System (TPMS) Sensor

Brand Schrader Valves 20720
Material Aluminum
Power Source Battery
Activation Type Pre-programmed, non-programmable
Monitor Type Direct
Real Time Pressure Signal Transmission Yes
Mounting Method Clamp-in
Mounting Hardware Included Yes
Valve Color Silver
Frequency 433
Housing Material Plastic
Manufacturer Warranty 1 year
Package Contents Transmitter, ni plated valve core (installed), plastic cap (insta
Package Quantity 1
Fits Acura · 12 vehicles

Direct monitoring. Tracks tire pressure in real time for immediate feedback.

Clamp-in design. Includes installed valve core, cap, and aluminum nut.

Pre-programmed sensor. Non-programmable setup simplifies installation and setup.

Cross-references Dorman - OE Solutions 974-301, FEL-PRO 1214 and 42753-TK4-A01 for the same application. See all 6.

$53.14Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $53.14
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options

Schrader TPMS Sensor for Acura Applications

Schrader Valves 20720 is a direct tire pressure monitoring system sensor built for select Acura vehicles with 433 MHz systems. It uses a clamp-in aluminum valve stem, pre-programmed non-programmable activation, and real-time pressure signal transmission for OE-style TPMS service.

Compatible with 2009-2014 Acura TL, 2010-2013 Acura ZDX, and 2014-2015 Acura RLX, this Schrader Valves 20720 sensor is a direct replacement for factory TPMS service on supported 433 MHz applications.

Key Features

  • Direct TPMS sensor with real-time pressure signal transmission
  • Pre-programmed, non-programmable design for supported vehicle applications
  • 433 MHz frequency for listed Acura fitments
  • Clamp-in aluminum valve stem with silver valve color
  • Battery-powered sensor with plastic housing
  • Mounting hardware included
  • OE cross-reference support for common replacement applications

Detailed Description

The Schrader Valves 20720 TPMS sensor is engineered for vehicles that use a direct tire pressure monitoring system and a 433 MHz signal. It is a clamp-in style sensor with an aluminum valve stem, installed valve core, plastic cap, and aluminum nut, making it a practical OE-style service part for tire and wheel maintenance. This part number is commonly referenced for Acura TL, Acura ZDX, and Acura RLX applications where the factory system requires a pre-programmed replacement sensor.

This part cross-references Dorman - OE Solutions 974-301 for the same application. Schrader Valves 20720 is also listed with interchange references including 42753-TK4-A01, 921067C, 921102, and TPM103.

What It Helps Address

  • TPMS warning light caused by a failed sensor
  • Loss of tire pressure signal from a damaged internal sensor
  • Service needs after tire replacement or wheel repair
  • Replacement of an aging battery-powered TPMS transmitter
  • Restoring direct pressure monitoring on 433 MHz Acura systems

Installation Notes and Tips

Use the listed torque specifications during installation: nut torque is 35 in-lbs (4 Nm) and valve core torque is 3.5 in-lbs (0.4 Nm). Confirm the vehicle uses a 433 MHz direct TPMS system before installation. Fitment includes 2009-2014 Acura TL, 2010-2013 Acura ZDX, and 2014-2015 Acura RLX.

Quality Assurance

Schrader Valves 20720 includes a 1-year manufacturer warranty. It is built as a direct TPMS sensor for the specified Acura applications and supports OE-style service requirements for 433 MHz systems.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2015AcuraRLXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014AcuraRLXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2013AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2013AcuraZDXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2012AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2012AcuraZDXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2011AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2011AcuraZDXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2010AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2010AcuraZDXN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2009AcuraTLN/A433MHz; Nut torque: 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 974-301FEL-PRO — 121442753-TK4-A01921067C921102TPM103
