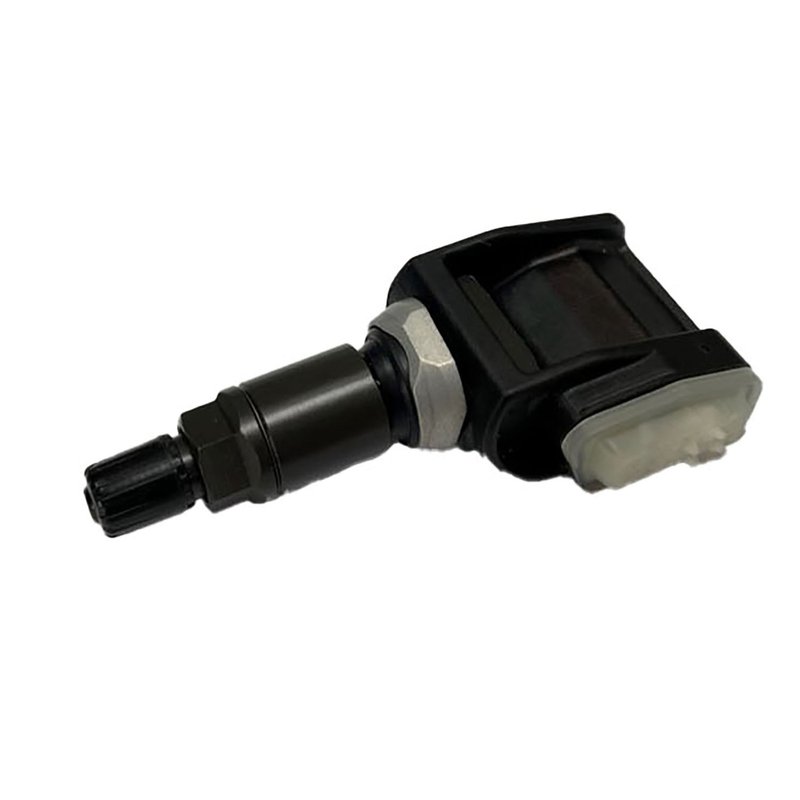

Schrader Valves 23309T Tire Pressure Monitoring System (TPMS) Sensor

Schrader TPMS Sensor for Tesla Fitment

The Schrader Valves 23309T is a pre-programmed tire pressure monitoring system sensor built for wheel-mounted applications. It uses a clamp-in design with an aluminum valve stem, titanium grey valve color, and included valve stem, cap, grommets, and mounting hardware for a direct service replacement on select Tesla models.

Compatible With 2021-2025 Tesla 3 and 2024 Tesla Cybertruck, this TPMS sensor is built for vehicles that require a wheel-mounted, pre-programmed sensor with a clamp-in attachment method. The Schrader 23309T supports accurate tire pressure monitoring without requiring user programming.

Key Features

• Part Number: 23309T
• Pre-programmed TPMS sensor; no programming required
• Clamp-in mounting method for wheel installation
• Aluminum valve stem with titanium grey finish
• Nickel-plated brass valve core material
• Plastic housing for sensor protection
• Valve stem, valve cap, grommets, and mounting hardware included
• Recommended nut torque: 71 in-lbs / 8 Nm
• Manufacturer warranty: 2 years

Detailed Description

Schrader Valves 23309T is a TPMS sensor engineered for wheel-mounted tire pressure monitoring service on select Tesla applications. Schrader has a long history in valve and sensing technology, and this sensor reflects that focus with a clamp-in aluminum valve stem, pre-programmed operation, and included service components for a clean replacement process. It is a practical choice for Tesla 3 TPMS sensor replacement and Tesla Cybertruck TPMS sensor service where the vehicle calls for a pre-programmed unit.

This part number 23309T is listed for 2021-2025 Tesla 3 and 2024 Tesla Cybertruck applications. If you are searching for a Schrader 23309T TPMS sensor for Tesla 3 or a Tesla Cybertruck tire pressure sensor replacement, this unit matches the confirmed fitment shown here.

What It Helps Address

• TPMS warning light caused by a failed wheel sensor
• Loss of tire pressure monitoring signal at the wheel
• Service replacement for a damaged clamp-in valve stem sensor
• Need for a pre-programmed sensor on supported Tesla applications
• Replacement after corrosion or wear at the valve stem assembly

Installation Notes and Tips

Install the sensor at the wheel mounting location and follow the recommended nut torque of 71 in-lbs (8 Nm). Verify that the valve stem, grommets, and hardware are seated correctly during installation. Because this sensor is pre-programmed and not programmable, confirm vehicle application before service and complete any required TPMS relearn or system check according to the vehicle procedure.

Quality Assurance

Schrader Valves backs this TPMS sensor with a 2-year manufacturer warranty. The brand is known for valve and sensing solutions used in automotive applications, and part number 23309T is built to meet the needs of select Tesla 3 and Tesla Cybertruck fitments.
