Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

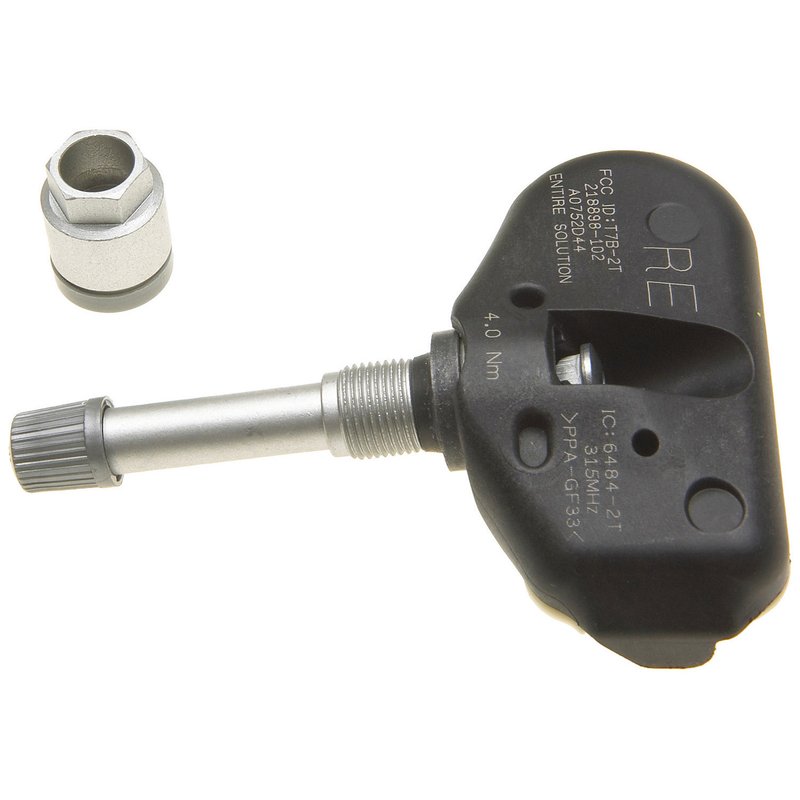

Schrader Valves 28982 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 28982 |
|---|---|
| Material | Aluminum |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Clamp-in |
| Mounting Hardware Included | Yes |
| Valve Color | Silver |
| Frequency | 315 |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Transmitter, ni plated valve core (installed), plastic cap (insta |
| Package Quantity | 1 |
| Fits | Honda · 3 vehicles |
Direct monitoring. Tracks tire pressure in real time for immediate feedback.
Clamp-in design. Secure mounting with included hardware for a clean install.
Pre-programmed sensor. Ready to use with no programming required.
Cross-references Dorman - OE Solutions 974-037, Standard Ignition TPM48 and 1059 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Schrader 28982 TPMS Sensor for Honda
Schrader Valves 28982 is a direct tire pressure monitoring system sensor built for select Honda applications with 315 MHz operation. It uses a clamp-in aluminum valve design with a plastic housing, pre-programmed activation, and real-time pressure signal transmission for direct TPMS monitoring.
Key Features
- Direct TPMS sensor with real-time pressure signal transmission
- Pre-programmed, non-programmable activation type
- 315 MHz frequency for supported Honda vehicles
- Clamp-in mounting with aluminum valve construction
- Battery-powered sensor with plastic housing
- Silver valve finish
- Package includes transmitter, installed Ni plated valve core, installed plastic cap, and aluminum nut
- Manufacturer warranty: 1 year
Detailed Description
Schrader 28982 is a direct tire pressure monitoring system sensor for 2007-2008 Honda Ridgeline and 2005 Honda Pilot applications that use a 315 MHz TPMS setup. This Schrader Valves TPMS sensor is pre-programmed and non-programmable, which simplifies replacement for the listed vehicles while maintaining direct pressure monitoring at the wheel. The clamp-in aluminum valve design and included mounting hardware support a secure installation in the intended Honda Ridgeline and Honda Pilot fitments. This part cross-references Dorman OE Solutions 974-037 for the same application.
What It Is Used For
- Replacing a failed TPMS sensor on a 2007-2008 Honda Ridgeline
- Replacing a failed TPMS sensor on a 2005 Honda Pilot
- Restoring tire pressure signal transmission to the vehicle monitoring system
- Addressing TPMS warning lights caused by sensor battery or signal failure
- Maintaining direct tire pressure monitoring on 315 MHz Honda systems
Installation Notes and Tips
Compatible With 2007-2008 Honda Ridgeline and 2005 Honda Pilot, 315 MHz TPMS systems. Follow the listed torque specifications during installation: nut torque is 35 in-lbs (4 Nm) and valve core torque is 3.5 in-lbs (0.4 Nm). Verify sensor frequency and vehicle application before installation, and confirm relearn or initialization requirements for the vehicle after replacement.
Quality Assurance
Schrader Valves 28982 is backed by a 1-year manufacturer warranty. It is a direct TPMS sensor built for the specified Honda applications and supplied with the listed components for service replacement.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2008 | Honda | Ridgeline | RT | 315 MHz; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Replaced by ~29102~ |
| 2007 | Honda | Ridgeline | RT | 315 MHz; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Replaced by ~29102~ |
| 2005 | Honda | Pilot | LX | 315 MHz; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm; Replaced by ~29102~ |
| No rows match your filter. | ||||
