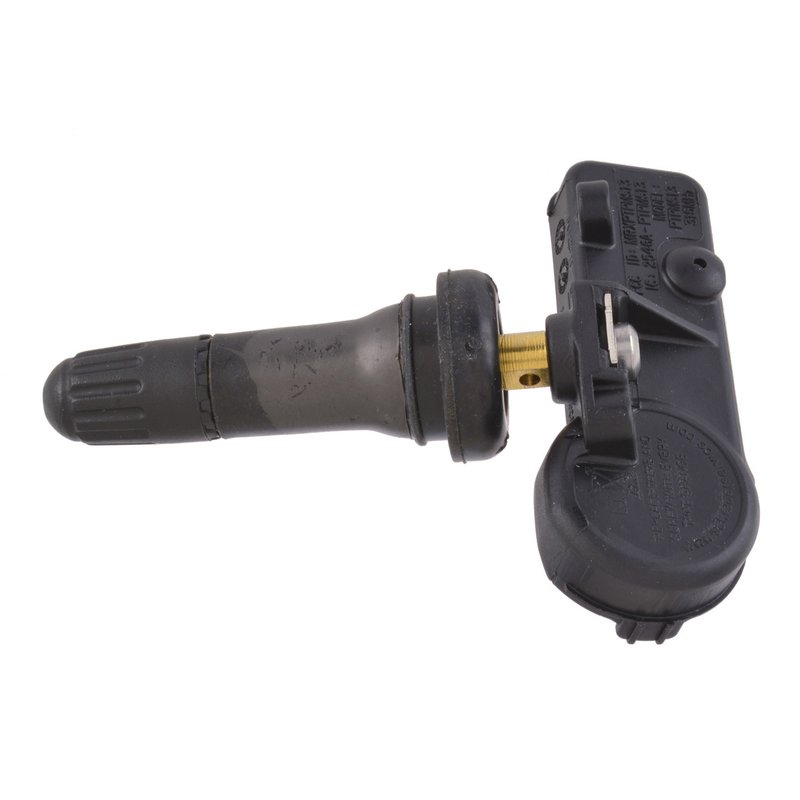

Schrader Valves 29089 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 29089 |
|---|---|
| Material | Rubber |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Snap-in |
| Mounting Hardware Included | Yes |
| Valve Color | Black |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Tpms sensor |
| Package Quantity | 1 |
| Fits | Buick, Cadillac, Chevrolet, and GMC · 22 vehicles |
Direct TPMS sensor. Monitors tire pressure in real time for accurate readings.
Snap-in installation. Rubber and plastic construction with included mounting hardware.
Pre-programmed design. Non-programmable sensor with battery power for easy setup.
Cross-references 13228566 for the same application. See all 1.
Schrader 29089 TPMS Sensor Overview
Schrader Valves 29089 is a direct tire pressure monitoring system sensor built for vehicles that use a snap-in rubber valve design and real-time pressure signal transmission. It is pre-programmed and non-programmable, making it a straightforward replacement for select Cadillac, Chevrolet, Buick, and GMC applications.
Use Schrader 29089 when replacing a failed TPMS sensor on models such as the Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, and GMC Terrain. This Schrader 29089 sensor is designed for direct monitoring and battery-powered operation.
Key Features
- Direct TPMS sensor with real-time pressure signal transmission
- Pre-programmed, non-programmable design for listed applications
- Snap-in mounting method with rubber material and black valve color
- Battery-powered sensor construction
- Plastic housing with mounting hardware included
- Interchange reference: 13228566
- Manufacturer warranty: 1 year
Detailed Description
Schrader Valves 29089 is a direct tire pressure monitoring system sensor engineered for vehicles equipped with factory TPMS systems that read pressure data from each wheel. It uses a snap-in mount, rubber valve stem material, and a black valve finish, with a plastic housing and battery power source. The sensor is pre-programmed and non-programmable, which helps streamline replacement on supported vehicles without additional programming steps.
Compatible With 2020-2021 Cadillac XT4, 2020-2021 Chevrolet Camaro, 2020-2021 Chevrolet Equinox, 2019-2021 Chevrolet Silverado 2500 HD, 2019-2021 Chevrolet Silverado 3500 HD, 2020-2021 GMC Terrain, 2020 Buick Envision, 2020 Cadillac Escalade, 2019-2020 Chevrolet Bolt EV, 2020 Chevrolet Impala, 2020 Chevrolet Tahoe, 2020 GMC Yukon, and 2020 GMC Yukon XL. For Silverado HD applications, note the listed 314.9MHz frequency and torque specifications in the fitment data.
This part cross-references 13228566 for the same application.
Common Issues This Sensor Can Address
- TPMS warning light illuminated on the dash
- Loss of tire pressure signal from one wheel
- Faulty or aging factory sensor battery
- Inaccurate tire pressure readings from a failed sensor
- Sensor replacement after tire service or wheel repair
Installation Notes and Tips
Verify the vehicle’s TPMS frequency and service specifications before installation, especially on 2019-2021 Chevrolet Silverado 2500 HD and Silverado 3500 HD models. Follow the listed valve core torque and screw torque values where provided in the fitment notes. After installation, perform the required TPMS relearn or initialization procedure for the vehicle.
Quality Assurance
Schrader Valves is a recognized name in tire pressure monitoring components, and this 29089 sensor is backed by a 1-year manufacturer warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Cadillac | XT4 | — | — | N/A | Quantity Included: 1 |
| 2021 | Chevrolet | Camaro | — | — | N/A | Quantity Included: 1 |
| 2021 | Chevrolet | Equinox | — | — | N/A | Quantity Included: 1 |
| 2021 | Chevrolet | Silverado 2500 HD | 6.6L | V8 | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
| 2021 | Chevrolet | Silverado 3500 HD | 6.6L | V8 | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
| 2021 | GMC | Terrain | — | — | N/A | Quantity Included: 1 |
| 2020 | Buick | Envision | — | — | N/A | Quantity Included: 1 |
| 2020 | Cadillac | Escalade | — | — | N/A | Quantity Included: 1 |
| 2020 | Cadillac | XT4 | — | — | N/A | Quantity Included: 1 |
| 2020 | Chevrolet | Bolt EV | — | — | N/A | Quantity Included: 1 |
| 2020 | Chevrolet | Camaro | — | — | N/A | Quantity Included: 1 |
| 2020 | Chevrolet | Equinox | — | — | N/A | Quantity Included: 1 |
| 2020 | Chevrolet | Impala | — | — | N/A | Quantity Included: 1 |
| 2020 | Chevrolet | Silverado 2500 HD | 6.6L | V8 | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
| 2020 | Chevrolet | Silverado 3500 HD | 6.6L | V8 | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
| 2020 | Chevrolet | Tahoe | — | — | N/A | Quantity Included: 1 |
| 2020 | GMC | Terrain | — | — | N/A | Quantity Included: 1 |
| 2020 | GMC | Yukon | — | — | N/A | Quantity Included: 1 |
| 2020 | GMC | Yukon XL | — | — | N/A | Quantity Included: 1 |
| 2019 | Chevrolet | Bolt EV | — | — | N/A | Quantity Included: 1 |
| 2019 | Chevrolet | Silverado 2500 HD | — | — | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
| 2019 | Chevrolet | Silverado 3500 HD | — | — | N/A | 314.9MHz; Valve core torque = 3.5 in-lbs, 0.4Nm; Screw torque = 11.5 in-lbs, 3.5Nm |
