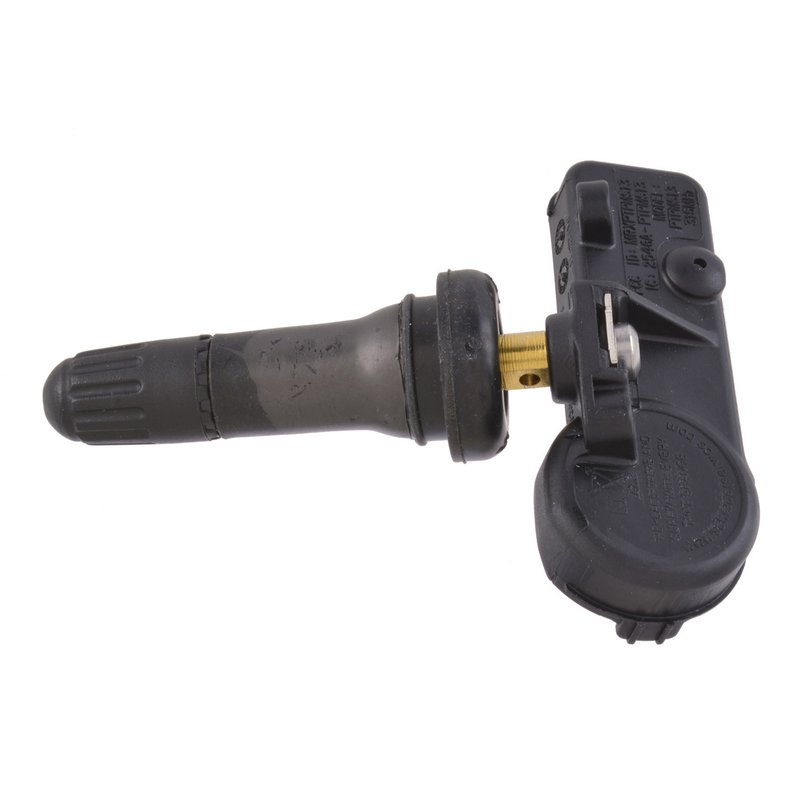

Schrader Valves 29093 Tire Pressure Monitoring System (TPMS) Sensor

TPMS Sensor for Chrysler, Dodge, Jeep, and Ram

Restore accurate tire pressure monitoring with this Schrader Valves TPMS sensor, part number 29093. It uses a direct monitoring design with real-time pressure signal transmission and a snap-in mounting method for Chrysler Gen 6 applications across select Chrysler, Dodge, Jeep, Ram, Fiat, and Volkswagen vehicles.

Built with a rubber stem, black valve color, plastic housing, and battery power source, this pre-programmed, non-programmable sensor is made for straightforward replacement service. Schrader 29093 is a fitment-based TPMS solution for vehicles such as the Chrysler 300, Dodge Charger, Jeep Wrangler, and Ram ProMaster models that use a 433 MHz sensor setup.

• Direct TPMS sensor with real-time pressure signal transmission
• Pre-programmed, non-programmable design for select Chrysler Gen 6 applications
• Snap-in mounting method with rubber stem and black valve
• Battery-powered sensor with plastic housing
• Includes mounting hardware
• 1-year manufacturer warranty

Detailed Product Information

Schrader Valves 29093 is a direct tire pressure monitoring system sensor engineered for vehicles that rely on a 433 MHz TPMS signal and snap-in installation. It is a practical replacement for select Chrysler, Dodge, Jeep, Ram, Fiat, and Volkswagen platforms, including long-tail applications such as a TPMS sensor for 2010-2021 Chrysler 300, 2010-2021 Dodge Charger, and 2013-2020 Jeep Wrangler. This part cross-references Dorman - OE Solutions 974-001 and 974-043 for the same application.

Use this sensor when the original TPMS unit no longer reports pressure data correctly or when a service replacement is needed after wheel or tire work. Schrader 29093 supports direct pressure monitoring so the vehicle can receive live tire pressure information from the wheel assembly.

What It Helps Solve

• TPMS warning light caused by a failed sensor
• Loss of tire pressure signal from one wheel
• Incorrect or inconsistent tire pressure readings
• Replacement needs after tire service or wheel repair
• Sensor aging related to battery depletion

Installation Notes and Fitment

Compatible With select Chrysler Gen 6 TPMS applications using snap-in installation and 433 MHz frequency. Fitment includes:

• Fits 2010-2021 Chrysler 300, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2010-2021 Dodge Challenger, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2010-2021 Dodge Charger, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2021 Jeep Wrangler, N/A, Schrader Chrysler Gen 6 WAL TFA Potted Snap-in Tx 433 MHz; Torque: 11.5in-lbs, 1.3 N.m; To 05/2021
• Fits 2015-2021 Ram ProMaster City, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2020 Chrysler Voyager, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2011-2020 Dodge Grand Caravan, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2010-2020 Dodge Journey, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2014-2020 Fiat 500L, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2013-2020 Jeep Wrangler, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2012-2019 Fiat 500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2018-2019 Ram ProMaster 1500, N/A, Quantity Included: 1
• Fits 2018 Jeep Wrangler JK, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2018 Ram ProMaster 2500, N/A, Quantity Included: 1
• Fits 2018 Ram ProMaster 3500, N/A, Quantity Included: 1
• Fits 2014-2017 Ram ProMaster 1500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2014-2017 Ram ProMaster 2500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2014-2017 Ram ProMaster 3500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2011-2016 Chrysler Town & Country, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2016 Fiat 500X, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2016 Jeep Renegade, N/A, Quantity Included: 1
• Fits 2011-2015 Dodge Durango, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2010-2015 Jeep Grand Cherokee, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2015 Ram 3500, N/A, Quantity Included: 1
• Fits 2012-2015 Ram C/V, N/A, Quantity Included: 1
• Fits 2011-2014 Ram 2500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2011-2014 Ram 3500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2012-2014 Ram 4000, N/A, Quantity Included: 1
• Fits 2009-2014 Volkswagen Routan, N/A, Quantity Included: 1
• Fits 2011-2013 Ram 1500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m
• Fits 2011 Fiat 500, N/A, Quantity Included: 1
• Fits 2010 Dodge Ram 3500, N/A, Chrysler Gen 6 TPMS Sensor with Snap-in Installation, 433 MHz frequency, Torque: 11.5in-lbs, 1.3 N.m

Quality Assurance

Schrader Valves backs this TPMS sensor with a 1-year manufacturer warranty.
