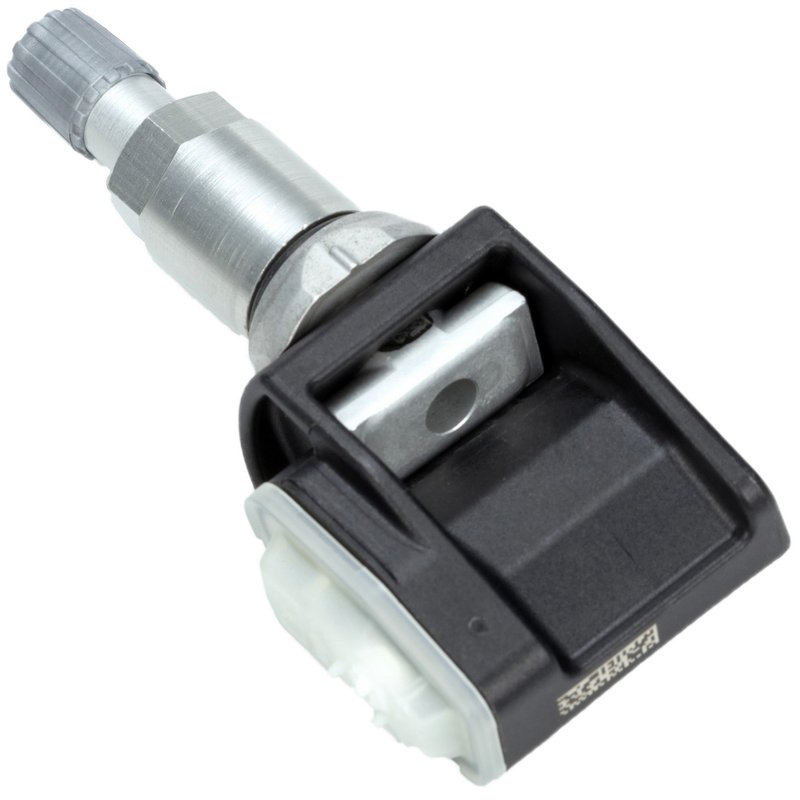

Schrader Valves 29096 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 29096 |
|---|---|
| Material | Aluminum |
| Power Source | Battery |
| Activation Type | Pre-programmed, non-programmable |
| Monitor Type | Direct |
| Real Time Pressure Signal Transmission | Yes |
| Mounting Method | Clamp-in |
| Mounting Hardware Included | Yes |
| Valve Color | Silver |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 year |
| Package Contents | Tpms sensor |
| Package Quantity | 1 |
| Fits | Cadillac, Chevrolet, Chrysler, and GMC · 9 vehicles |
Direct TPMS sensor. Monitors tire pressure in real time for accurate readings.
Clamp-in design. Includes mounting hardware for a secure installation.
Battery-powered. Pre-programmed, non-programmable sensor for quick setup.
Cross-references 13529770 for the same application. See all 1.
Schrader TPMS Sensor for Direct Tire Pressure Monitoring
Schrader Valves Part Number 29096 is a direct tire pressure monitoring system sensor built for vehicles that rely on real-time pressure signal transmission. It uses a battery power source, a clamp-in mounting method, and a pre-programmed, non-programmable design for straightforward OE-style replacement.
- Direct TPMS sensor with real-time pressure signal transmission
- Pre-programmed, non-programmable activation type
- Clamp-in design with aluminum construction
- Silver valve color with plastic housing material
- Mounting hardware included
- Manufacturer warranty: 1 year
- Interchange reference: 13529770
Fitment and Application Details
Compatible with select Cadillac, Chevrolet, Chrysler, and GMC applications, including Fits 2020-2021 Cadillac CT4, N/A; Fits 2020-2021 Cadillac CT5, N/A; Fits 2020-2021 Chevrolet Corvette, N/A; Fits 2022 Chevrolet Corvette, N/A; Fits 2022 Chrysler 300, N/A; and Fits 2022 GMC Hummer EV Pickup, N/A. For 2020-2021 Cadillac CT4, 2020-2021 Cadillac CT5, and 2020-2021 Chevrolet Corvette, the notes specify 433MHz signal requirements and torque values for the nut and valve core. Schrader Valves 29096 is a direct replacement choice for drivers searching for a TPMS sensor for 2020-2022 Cadillac CT4, CT5, Chevrolet Corvette, Chrysler 300, or GMC Hummer EV Pickup.
What This Sensor Helps Address
- TPMS warning light caused by a failed sensor
- Loss of tire pressure signal transmission
- Incorrect or missing tire pressure readings
- Sensor replacement needs after battery depletion
- OE-style service replacement for monitored tire systems
Installation Notes and Tips
Verify the vehicle’s TPMS frequency and service specifications before installation. For listed Cadillac CT4, Cadillac CT5, and Chevrolet Corvette applications, follow the noted 433MHz requirement and torque values for the nut and valve core. Because this is a pre-programmed, non-programmable sensor, confirm application match before mounting and relearning the system according to the vehicle service procedure.
Quality Assurance
Schrader Valves Part Number 29096 is backed by a 1-year manufacturer warranty. The direct TPMS design, clamp-in construction, and OE cross-reference support a service replacement approach for monitored tire and wheel systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Chevrolet | Corvette | N/A | Quantity Included: 1 |
| 2022 | Chrysler | 300 | N/A | Quantity Included: 1 |
| 2022 | GMC | Hummer EV Pickup | N/A | Quantity Included: 1 |
| 2021 | Cadillac | CT4 | N/A | 433MHz; Nut torque = 71 in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2021 | Cadillac | CT5 | N/A | Quantity Included: 1 |
| 2021 | Chevrolet | Corvette | N/A | 433MHz; Nut torque = 71 in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Cadillac | CT4 | N/A | 433MHz; Nut torque = 71 in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Cadillac | CT5 | N/A | 433MHz; Nut torque = 71 in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
| 2020 | Chevrolet | Corvette | N/A | 433MHz; Nut torque = 71 in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm |
