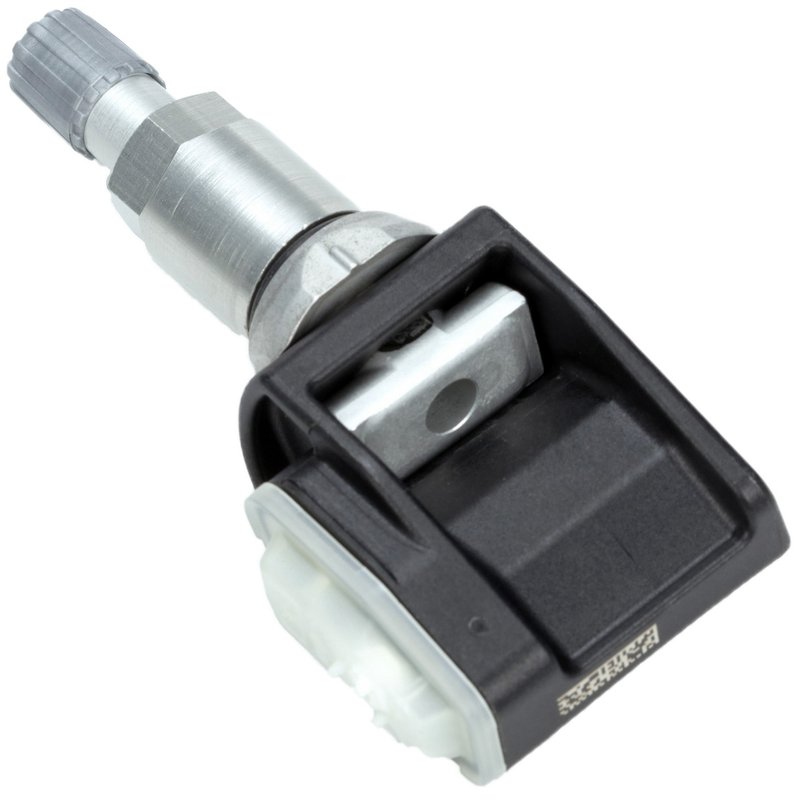

Schrader Valves 29099 Tire Pressure Monitoring System (TPMS) Sensor

OE Quality 60-Day Returns

Schrader Valves 29099 Tire Pressure Monitoring System (TPMS) Sensor

Brand	Schrader Valves 29099
Material	Aluminum
Power Source	Battery
Activation Type	Pre-programmed, programmable
Monitor Type	Direct
Real Time Pressure Signal Transmission	Yes
Mounting Method	Clamp-in
Mounting Hardware Included	Yes
Valve Color	Silver
Housing Material	Plastic
Manufacturer Warranty	1 year
Package Contents	Tpms sensor with aluminum valve and aluminum nut
Package Quantity	1
Fits	Jeep and Ram · 46 vehicles

Direct TPMS sensor. Monitors tire pressure in real time for accurate readings.

Clamp-in design. Includes an aluminum valve and nut for secure mounting.

Pre-programmed, programmable. Ready for setup with flexible activation options.

Cross-references Continental SE52081, Mopar 68249201AA and National 6815 for the same application. See all 11.

$37.72Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options

TPMS Sensor for Jeep and Ram Applications

Schrader Valves 29099 is a direct tire pressure monitoring system sensor built for select Jeep and Ram vehicles. It uses a battery-powered, clamp-in design with an aluminum valve stem and real-time pressure signal transmission for accurate TPMS communication.

Key Features

Direct TPMS sensor with real-time pressure signal transmission
Pre-programmed and programmable activation type
Clamp-in mounting method with aluminum valve and aluminum nut
Silver valve color with plastic housing and aluminum construction
Battery-powered sensor for direct tire pressure monitoring
Includes mounting hardware
1-year manufacturer warranty

Detailed Product Overview

This Schrader Valves TPMS sensor, part number 29099, is engineered for direct tire pressure monitoring on select Jeep Cherokee, Jeep Grand Cherokee L, and Ram truck and van platforms. It is a clamp-in sensor with an aluminum valve stem, designed for 433MHz applications listed in the fitment data. The sensor supports both pre-programmed and programmable activation, making it suitable for service replacement where OE-style TPMS communication is required. Cross-reference part numbers include Continental SE52081 and Standard Ignition TPM204 for the same application.

Compatible With 2014-2021 Jeep Cherokee, 2021 Jeep Grand Cherokee L, 2014-2021 Ram 1500, 2019-2021 Ram 1500 Classic, 2014-2021 Ram 2500, 2014-2021 Ram 3500, 2014-2019 Ram 4000, and 2015-2016 Ram ProMaster City. The Schrader 29099 is a direct replacement option for vehicles that rely on a clamp-in TPMS sensor with aluminum valve construction.

Common TPMS Issues This Sensor Can Address

TPMS warning light caused by a failed internal sensor battery
Loss of tire pressure data after sensor damage or corrosion
Intermittent or missing pressure readings from a worn sensor
Service replacement needs after tire or wheel work on TPMS-equipped vehicles
Fault codes related to an inoperative direct TPMS sensor

Installation Notes and Tips

Fits 2014-2021 Jeep Cherokee, N/A; 2021 Jeep Grand Cherokee L, N/A; 2014-2021 Ram 1500, N/A; 2019-2021 Ram 1500 Classic, N/A; 2014-2021 Ram 2500, N/A; 2014-2021 Ram 3500, N/A; 2014-2019 Ram 4000, N/A; and 2015-2016 Ram ProMaster City, N/A. Fitment notes list 433MHz coverage for several applications, along with Schrader clamp-in specifications. Nut torque is 35 in-lbs (4 Nm) and valve core torque is 3.5 in-lbs (0.4 Nm) where specified. Verify vehicle year, model, and TPMS frequency before installation.

Quality Assurance

Schrader Valves 29099 is backed by a 1-year manufacturer warranty. The sensor is built with an aluminum valve stem, aluminum nut, and plastic housing for direct TPMS service on the listed Jeep and Ram applications.

This part fits 46 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2023	Jeep	Cherokee	N/A	Quantity Included: 1
2022	Jeep	Cherokee	N/A	Quantity Included: 1
2021	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021	Jeep	Grand Cherokee L	N/A	Quantity Included: 1
2021	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021	Ram	1500 Classic	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2021	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020	Ram	1500 Classic	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2020	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Ram	1500 Classic	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2019	Ram	4000	N/A	Quantity Included: 1
2018	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2018	Ram	4000	N/A	Quantity Included: 1
2017	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2017	Ram	4000	N/A	Quantity Included: 1
2016	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2016	Ram	4000	N/A	Quantity Included: 1
2016	Ram	ProMaster City	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2015	Ram	4000	N/A	Quantity Included: 1
2015	Ram	ProMaster City	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014	Jeep	Cherokee	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014	Ram	1500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014	Ram	2500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014	Ram	3500	N/A	433MHz; Schrader Clamp-in; Nut torque = 35in-lbs, 4Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2014	Ram	4000	N/A	Quantity Included: 1
No rows match your filter.

Directly replaces or cross-references 11 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Continental — SE52081Mopar — 68249201AANational — 6815Standard Ignition — TPM20492123268157568AA68239720AA68239720AB68239720AC68239729AA68249197AA
