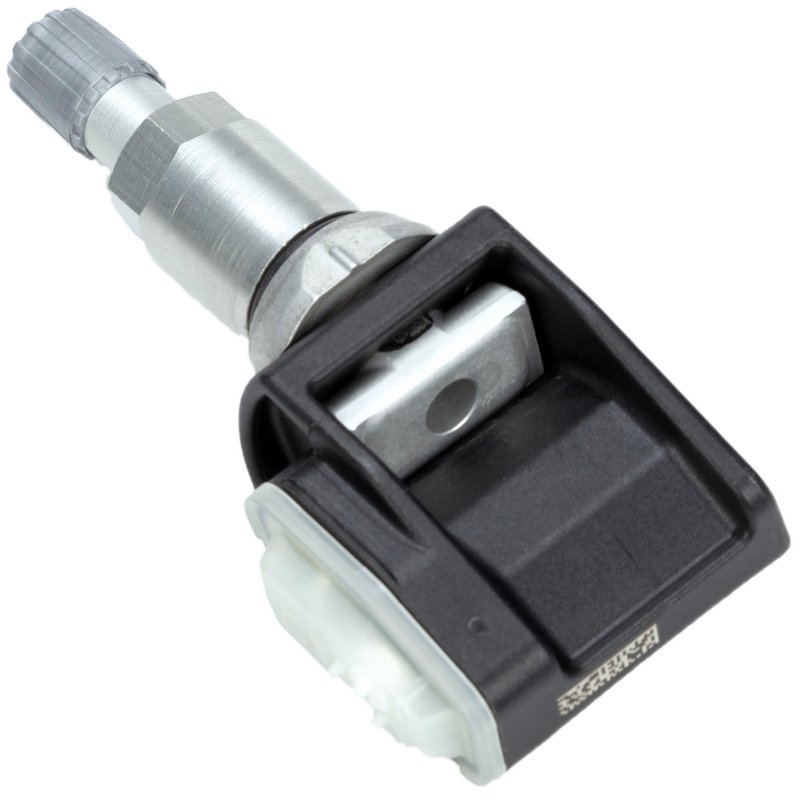

Schrader Valves 29105 Tire Pressure Monitoring System (TPMS) Sensor

TPMS Sensor for Toyota, Hyundai, and Kia

Schrader Valves 29105 is a direct tire pressure monitoring system sensor built for vehicles that use a clamp-in TPMS design. It provides real-time pressure signal transmission and is available as a pre-programmed, programmable sensor for service work on a wide range of Toyota, Hyundai, and Kia applications.

Use this Schrader Valves 29105 TPMS sensor when replacing a failed sensor on models such as the Toyota Sienna, Toyota Tundra, Hyundai Santa Fe, and Kia Sportage. It is a direct-monitor sensor with a battery power source, aluminum construction, and a silver valve stem finish.

Key Features

• Direct TPMS sensor with real-time pressure signal transmission
• Clamp-in mounting method with aluminum nut included
• Pre-programmed and programmable activation type
• Battery-powered sensor design
• Aluminum material with plastic housing and silver valve color
• Cross-references Dorman OE Solutions 974-032 and 974-076 for the same application

Detailed Description

Schrader Valves 29105 is a tire pressure monitoring system sensor for direct TPMS setups that require accurate tire pressure data sent to the vehicle in real time. The clamp-in design and aluminum valve construction support OE-style service replacement on many Asian-market vehicles, including Toyota Sienna, Toyota Sequoia, Toyota Tundra, Hyundai Elantra, Hyundai Sonata, Kia Rio, and Kia Sportage applications. This part number is also referenced as 29105 in service and catalog listings.

Fitment coverage includes 2004-2022 model years across Toyota, Hyundai, and Kia platforms. Confirm the vehicle year, make, model, and TPMS frequency before installation, especially on applications noted as 315 MHz or replacements for OE part 28849. For search relevance, this sensor is commonly selected for Toyota Sienna TPMS sensor replacement, Hyundai Santa Fe TPMS service, and Kia Sportage tire pressure sensor repair.

What It Helps Solve

• TPMS warning light caused by a failed tire pressure sensor
• Loss of tire pressure signal from a damaged or aging sensor
• Service replacement for clamp-in direct TPMS systems
• Sensor replacement after wheel or tire service
• OE part number replacement needs on supported Toyota, Hyundai, and Kia vehicles

Installation Notes and Tips

Verify the vehicle’s TPMS frequency and OE reference before installation. This sensor is listed as pre-programmed and programmable, so setup may vary by vehicle and scan tool procedure. Use the correct clamp-in mounting method and torque the aluminum nut to the vehicle manufacturer’s specification. After installation, perform a TPMS relearn or initialization procedure as required by the vehicle.

Quality Assurance

Schrader Valves 29105 is backed by a 1-year manufacturer warranty. The sensor uses a direct-monitor design with battery power and is built for service replacement in supported OE applications.
