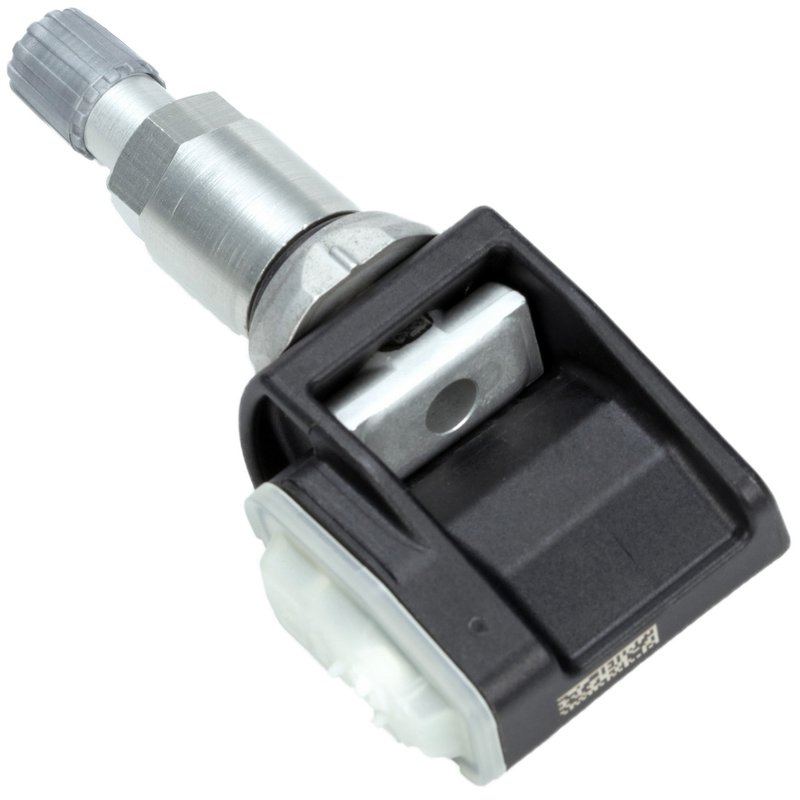

Schrader Valves 29109 Tire Pressure Monitoring System (TPMS) Sensor

TPMS Sensor for Hyundai and Kia Applications

Schrader Valves 29109 is a direct tire pressure monitoring system sensor built for select Hyundai, Kia, Genesis, and Chrysler applications. It uses a battery-powered, clamp-in design with real-time pressure signal transmission to support accurate tire pressure readings from the wheel.

Key Features

• Direct TPMS sensor with real-time pressure signal transmission
• Pre-programmed and programmable activation type
• Clamp-in mounting method with aluminum valve construction
• Silver valve finish with plastic housing
• Battery-powered sensor design
• Includes aluminum valve and aluminum nut
• 1-year manufacturer warranty

Detailed Product Information

Schrader Valves part number 29109 is a direct TPMS sensor engineered for vehicles that rely on in-wheel pressure monitoring. It is listed for a wide range of fitments, including Hyundai Sonata, Hyundai Kona, Kia Soul, Kia Sportage, Genesis GV70, and other select models across 2013-2025 applications. This sensor is also cross-referenced to Continental SE55923 for the same application.

The clamp-in aluminum valve design supports secure wheel mounting, while the battery-powered sensor transmits tire pressure data in real time to the vehicle’s monitoring system. For service work on Hyundai and Kia TPMS systems, 29109 provides a direct replacement option where the OE-style sensor specification calls for a 433 MHz clamp-in unit.

Vehicle Fitment

• Fits 2025 Genesis Electrified GV70, N/A
• Fits 2025 Genesis G80, N/A
• Fits 2025 Genesis GV70, N/A
• Fits 2022 Genesis GV70, N/A
• Fits 2022 Genesis GV80, N/A
• Fits 2017 Genesis G90, N/A
• Fits 2021-2025 Kia Soul, N/A
• Fits 2019 Kia Soul, N/A
• Fits 2020 Kia Soul, N/A
• Fits 2020 Kia Soul EV, N/A
• Fits 2021-2023 Kia Soul EV, N/A
• Fits 2022-2024 Hyundai Kona Electric, N/A
• Fits 2022-2023 Hyundai Kona, N/A
• Fits 2022-2023 Hyundai Kona N, N/A
• Fits 2020-2024 Hyundai Sonata, N/A
• Fits 2020-2023 Hyundai Venue, N/A
• Fits 2021-2024 Kia K5, N/A
• Fits 2022-2023 Hyundai Grand i10, N/A
• Fits 2022 Hyundai Ioniq, N/A
• Fits 2022 Hyundai Veloster N, N/A
• Fits 2022 Kia Niro, N/A
• Fits 2019-2022 Kia Niro EV, N/A
• Fits 2016-2022 Kia Sportage, N/A
• Fits 2021 Chrysler Grand Caravan, N/A
• Fits 2018-2021 Hyundai Elantra, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2017-2021 Hyundai Ioniq, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2018-2021 Hyundai Kona, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2019-2021 Hyundai Kona Electric, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2018-2021 Hyundai Santa Fe, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2019-2021 Hyundai Veloster, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2017 Hyundai Veloster, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2019-2021 Hyundai Veloster N, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2017-2021 Kia Niro, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2018-2020 Hyundai Elantra GT, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2019-2020 Hyundai Nexo, N/A
• Fits 2018-2020 Kia Cadenza, N/A
• Fits 2015-2020 Kia Optima, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2018-2020 Kia Sorento, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2018-2019 Hyundai Santa Fe XL, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2017-2018 Hyundai Santa Fe Sport, N/A; Schrader Clamp-in 433 MHz Hyundai; Torque: 35in-lbs, 4N.m
• Fits 2017 Hyundai Elantra, N/A
• Fits 2015-2017 Hyundai Santa Fe XL, N/A
• Fits 2013 Hyundai Santa Fe XL, N/A
• Fits 2017 Kia Sorento, N/A
• Fits 2014 Hyundai Elantra Coupe, N/A

Common Issues This Sensor Helps Address

• TPMS warning light illuminated on the dash
• Inaccurate tire pressure readings from a failed sensor
• Loss of tire pressure signal after battery depletion
• Service replacement after wheel or tire work on Hyundai and Kia models
• Sensor replacement for direct TPMS systems using a clamp-in design

Installation Notes and Tips

Verify the vehicle’s TPMS frequency and sensor style before installation. This Schrader 29109 sensor uses a clamp-in mounting method and is specified with a 35 in-lbs (4 N.m) torque note on select Hyundai applications. Always follow the vehicle service procedure for relearn, activation, and torque settings after installation.

Quality Assurance

Schrader Valves 29109 includes a 1-year manufacturer warranty. The sensor is built with an aluminum valve, aluminum nut, and direct TPMS signal transmission for service on supported Hyundai, Kia, Genesis, and Chrysler applications.
