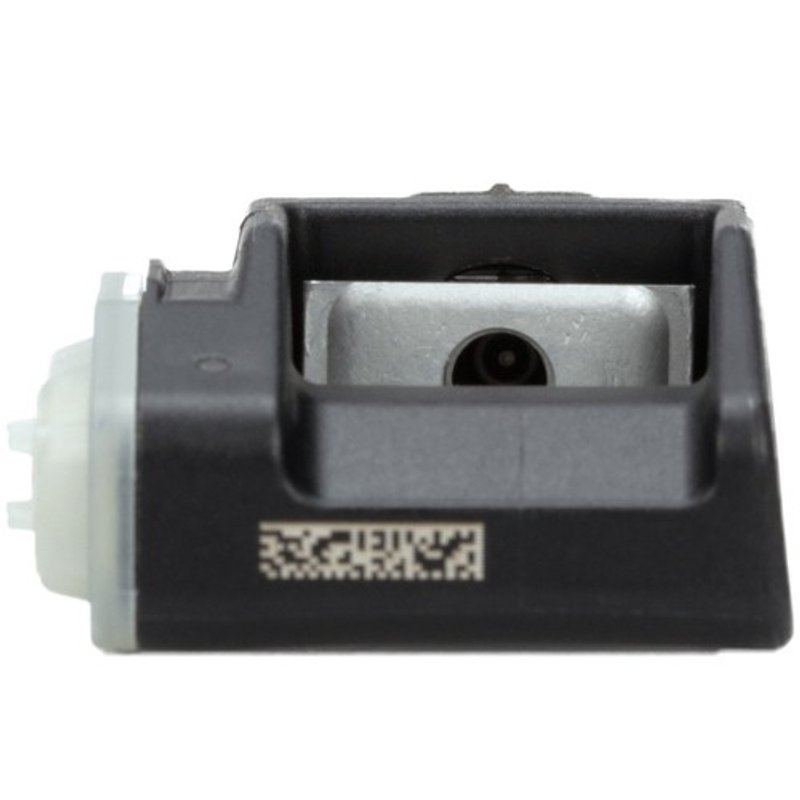

Schrader Valves 29178 Tire Pressure Monitoring System (TPMS) Sensor
| Brand | Schrader Valves 29178 |
|---|---|
| Valve Material | Aluminum |
| Mounting Method | Clamp-in |
| Mounting Hardware Included | Yes |
| Housing Material | Plastic |
| Valve Color | Silver |
| Valve Core Material | Nickel plated |
| Programmable | No |
| Valve Cap Included | Yes |
| Frequency | 315.0 |
| Pre-Programmed | Yes |
| Attachment Method | Clamp-in |
| Core Material | Nickel-plated brass |
| Grommets Included | Yes |
| Hardware Included | Yes |
| Manufacturer Warranty | 2 years |
| Mounting Location | Wheel |
| Package Contents | Transmitter, ni plated valve core (installed), plastic cap (insta |
| Package Quantity | 1 |
| Pre-programmed | Yes |
| Programmable | No |
| Recommended Torque (in/Lbs) | 71 inch/lbs. |
| Recommended Torque (N-m) | 8 n-m |
| Valve Stem Included | Yes |
| Washer Included | No |
| Fits | Chevrolet · 4 vehicles |
OE replacement sensor. Matches OE quality and performance standards.
Clamp-in design. Includes aluminum valve hardware for secure mounting.
Pre-programmed. Ready for service with no programming required.
Cross-references Anchor 8006, Continental SE10001HP and DENSO Auto Parts 550-2409 for the same application. See all 8.
Schrader TPMS Sensor for Corvette
Restore accurate tire pressure monitoring with Schrader Valves part number 29178. This direct TPMS sensor is a pre-programmed, clamp-in replacement built for 315 MHz applications and OE-style service on select Chevrolet Corvette models.
Key Features
- Direct tire pressure monitoring system sensor for wheel-mounted service
- Pre-programmed for installation on supported applications
- Clamp-in aluminum valve stem with silver finish
- Plastic housing with nickel-plated brass core
- Valve cap, grommets, and mounting hardware included
- 315.0 frequency for supported vehicle applications
- Recommended torque: 71 in/lbs. or 8 N-m
Detailed Description
Schrader Valves 29178 is a TPMS sensor engineered for OE-style replacement service on 1997-2000 Chevrolet Corvette models. Schrader is a long-standing OE supplier in tire pressure monitoring technology, and this sensor reflects that background with direct-fit construction, pre-programmed operation, and OE-quality testing standards. The clamp-in design uses an aluminum valve stem and nickel-plated brass core for wheel-mounted installation.
This part number 29178 is a practical choice when servicing a Chevrolet Corvette TPMS warning concern or replacing a failed wheel sensor on supported 1997-2000 Corvette applications. It is not programmable and requires a vehicle-specific relearn procedure after installation using a TPMS programming and diagnostic tool with OBD capability. This part cross-references DENSO Auto Parts 550-2409 for the same application.
What It Helps Solve
- TPMS warning light illuminated on the dash
- Inaccurate tire pressure readings from a failed wheel sensor
- Loss of sensor communication after battery or sensor failure
- Service needs after tire or wheel replacement on a Chevrolet Corvette
- Replacement of a damaged clamp-in TPMS sensor assembly
Installation Notes
Fits 1997-2000 Chevrolet Corvette, N/A. Verify the 315 MHz frequency before installation and follow the specified torque values during wheel service. After the sensor is installed, perform the required vehicle relearn procedure with the proper TPMS diagnostic and OBD-capable programming tool. Professional installation is recommended because TPMS service requires the correct tools and procedures.
Quality Assurance
Schrader manufactures OE replacement TPMS sensors to meet OE quality and performance standards, with testing that includes high-speed and extreme-temperature validation. Part number 29178 is backed by a 2-year manufacturer warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Chevrolet | Corvette | N/A | Quantity Included: 1 |
| 1999 | Chevrolet | Corvette | N/A | Quantity Included: 1 |
| 1998 | Chevrolet | Corvette | N/A | Quantity Included: 1 |
| 1997 | Chevrolet | Corvette | N/A | Quantity Included: 1 |
