Home› Tire and Wheel > Sensors› Schrader Valves 29181 Tire Pressure Monitoring System (TPMS) Sensor
Schrader Valves 29181 Tire Pressure Monitoring System (TPMS) SensorOE Quality 60-Day Returns
Part #: 29181

Schrader Valves 29181 Tire Pressure Monitoring System (TPMS) Sensor

52 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$42.41Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Buick, Cadillac, Chevrolet, GMC, Isuzu, and Saab, 9-7x, Ascender, CTS, Envoy, Envoy XL, Rainier, SRX, SSR, Trailblazer, and Trailblazer EXT
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Tire Pressure Monitoring System (TPMS) Sensor options

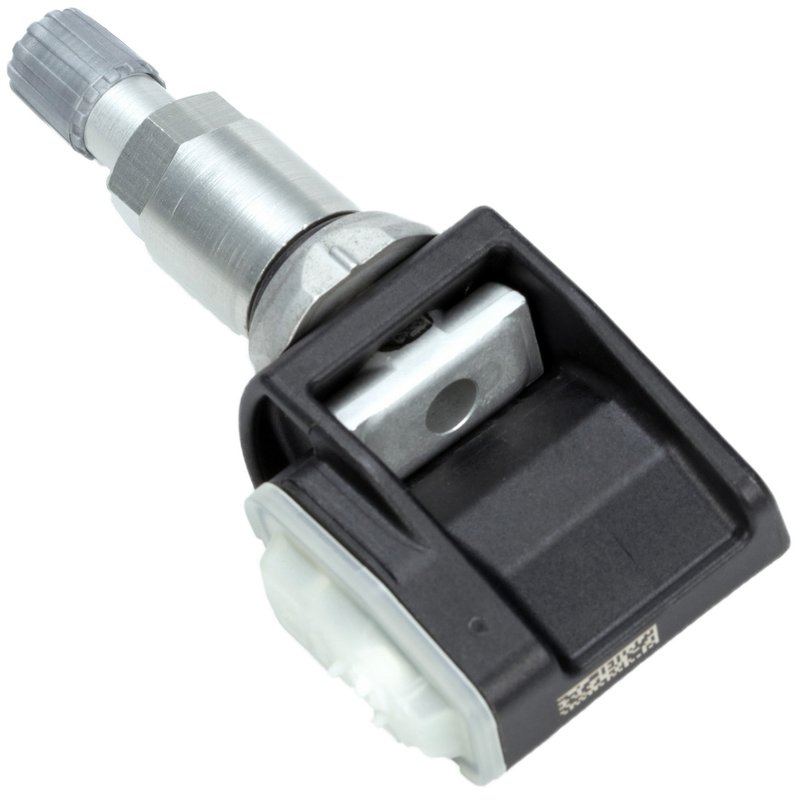

Schrader 29181 TPMS Sensor Overview

Schrader Valves 29181 is a direct tire pressure monitoring system sensor built for vehicles that use a 315 MHz signal and clamp-in mounting. It combines an aluminum valve stem with a plastic housing, battery power, and real-time pressure signal transmission for accurate TPMS communication.

Compatible With Chevrolet Trailblazer, GMC Envoy, Saab 9-7x, Isuzu Ascender, Buick Rainier, Cadillac CTS, Cadillac SRX, Chevrolet SSR, Chevrolet Trailblazer EXT, and GMC Envoy XL applications that call for a 315 MHz direct TPMS sensor. Schrader 29181 is also a direct replacement for OE-style service needs on these platforms.

Key Features

  • Direct TPMS sensor with real-time pressure signal transmission
  • 315 MHz frequency for supported GM and related applications
  • Clamp-in design with aluminum valve stem and silver valve color
  • Battery-powered sensor with pre-programmed and programmable activation
  • Plastic housing with installed nickel-plated valve core and plastic cap
  • Includes mounting hardware and uses a direct monitoring system
  • Manufacturer warranty: 1 year

Detailed Product Description

Schrader Valves 29181 is a tire pressure monitoring system sensor engineered for direct TPMS setups that require a 315 MHz transmitter. The clamp-in aluminum valve construction supports secure wheel mounting, while the battery-powered sensor sends pressure data in real time to the vehicle’s monitoring system. This part number is commonly used across Chevrolet Trailblazer, GMC Envoy, and related GM applications, including Saab 9-7x, Isuzu Ascender, Buick Rainier, Cadillac CTS, Cadillac SRX, Chevrolet SSR, Trailblazer EXT, and Envoy XL.

This part cross-references OE numbers 25774006 and 8257740060 for the same application. Schrader 29181 is a practical service replacement when the original TPMS sensor is no longer reporting correctly or when the vehicle requires a 315 MHz direct sensor with clamp-in mounting.

What This TPMS Sensor Helps Address

  • TPMS warning light caused by a failed sensor
  • Loss of tire pressure signal transmission
  • Incorrect or missing tire pressure readings in the dash display
  • Sensor replacement needs after wheel service or aging battery failure
  • Direct TPMS communication issues on 315 MHz applications

Installation Notes and Tips

Verify the vehicle uses a 315 MHz direct TPMS sensor before installation. For listed applications, the notes specify nut torque of 62 in-lbs (7 Nm) and valve core torque of 3.5 in-lbs (0.4 Nm). Confirm wheel and sensor compatibility, then follow the vehicle service procedure for TPMS relearn or activation after installation. Schrader 29181 is pre-programmed and programmable, which supports setup on the listed applications.

Quality Assurance

Schrader Valves backs this TPMS sensor with a 1-year manufacturer warranty. The part is built with an aluminum valve stem, plastic housing, and direct-monitoring sensor design for service on supported Chevrolet Trailblazer, GMC Envoy, and related vehicle applications.

BrandSchrader Valves
Part Number29181
MaterialAluminum
Power SourceBattery
Activation TypePre-programmed, programmable
Monitor TypeDirect
Real Time Pressure Signal TransmissionYes
Mounting MethodClamp-in
Mounting Hardware IncludedYes
Valve ColorSilver
Frequency315
Housing MaterialPlastic
Manufacturer Warranty1 year
Package ContentsTransmitter, ni plated valve core (installed), plastic cap (insta
Package Quantity1

This part fits 52 vehicles. Search below:

YearMakeModelPositionNotes
2009ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2009GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2009Saab9-7xN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2008ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2008GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2008IsuzuAscenderN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2008Saab9-7xN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007BuickRainierN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007CadillacCTSN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007IsuzuAscenderN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2007Saab9-7xN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006BuickRainierN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006CadillacCTSN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006CadillacSRXN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006ChevroletSSRN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006ChevroletTrailblazer EXTN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006GMCEnvoy XLN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006IsuzuAscenderN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2006Saab9-7xN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005BuickRainierN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005CadillacCTSN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005CadillacSRXN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005ChevroletSSRN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005ChevroletTrailblazer EXTN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005GMCEnvoy XLN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005IsuzuAscenderN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2005Saab9-7xN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004BuickRainierN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004CadillacCTSN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004CadillacSRXN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004ChevroletSSRN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004ChevroletTrailblazer EXTN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004GMCEnvoy XLN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2004IsuzuAscenderN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003CadillacCTSN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003ChevroletSSRN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003ChevroletTrailblazer EXTN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2003GMCEnvoy XLN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2002ChevroletTrailblazerN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2002ChevroletTrailblazer EXTN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2002GMCEnvoyN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm
2002GMCEnvoy XLN/A315 MHz; Nut torque = 62in-lbs,7Nm; Valve core torque = 3.5 in-lbs, 0.4Nm

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

257740068257740060

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
