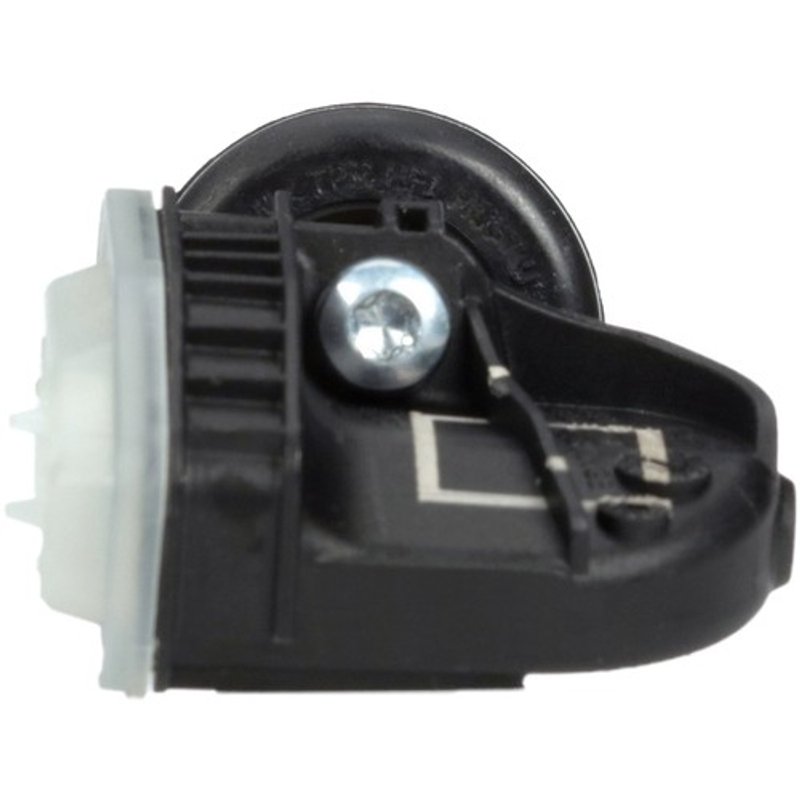

Schrader Valves 29182 Tire Pressure Monitoring System (TPMS) Sensor

Schrader 29182 TPMS Sensor Overview

Schrader 29182 is a direct tire pressure monitoring system sensor built for OE-style replacement on a wide range of Chrysler, Dodge, Jeep, Ram, and select BMW applications. It uses a 315.0 MHz signal, a snap-in rubber valve stem, and comes pre-programmed for service-ready installation on supported vehicles.

For drivers servicing a Jeep Wrangler TPMS sensor, Dodge Nitro TPMS sensor, or Chrysler Town & Country TPMS sensor application, this Schrader sensor supports accurate tire pressure monitoring with OE-quality construction and vehicle-specific relearn requirements.

Key Features

• Direct TPMS sensor for wheel-mounted tire pressure monitoring
• Part number 29182 with pre-programmed operation
• 315.0 MHz frequency for supported vehicle platforms
• Snap-in rubber valve stem with black valve color
• Plastic housing with nickel plated valve core
• Valve stem, valve cap, and mounting hardware included
• Recommended torque: 11.5 in/lbs. or 1.3 N-m
• 2-year manufacturer warranty

Detailed Description

Schrader Valves 29182 is a TPMS sensor engineered for direct replacement service where OE-style tire pressure monitoring is required. Schrader is known for OE sensing solutions and direct TPMS technology used across global vehicle platforms, and this sensor follows that service approach with pre-programmed functionality and a snap-in rubber valve design. It is a practical replacement for vehicles such as the Jeep Compass, Jeep Patriot, Dodge Caliber, Chrysler Sebring, and BMW X5 applications listed in the fitment data.

This part cross-references Continental SE57772 and DENSO Auto Parts 550-2502 for the same application.

What It Helps Solve

• TPMS warning light caused by a failed wheel sensor
• Loss of tire pressure data from a damaged sensor assembly
• Intermittent sensor communication on supported 315 MHz systems
• Service issues after replacing a wheel or tire on listed vehicles
• Replacement needs for aging OE tire pressure sensors

Installation Notes and Tips

TPMS sensor service requires proper tools, knowledge, and equipment. After installation, perform the vehicle-specific relearn procedure with a TPMS programming and diagnostic tool that has OBD capability. Follow the recommended torque specification during installation and verify the sensor is mounted at the wheel location specified by the vehicle service procedure.

Quality Assurance

Schrader tests its OE replacement sensors to OE quality standards, including high-speed and extreme-temperature validation. Part number 29182 is backed by a 2-year manufacturer warranty.

• Fits 2018 BMW M5, N/A
• Fits 2018 BMW M6, N/A
• Fits 2017-2018 BMW M6 Gran Coupe, N/A
• Fits 2018 BMW X3, N/A
• Fits 2018 BMW X4, N/A
• Fits 2018 BMW X5, N/A
• Fits 2018 BMW X6, N/A
• Fits 2015-2018 Jeep Compass, N/A
• Fits 2008-2013 Jeep Compass, N/A
• Fits 2017 BMW 640i, N/A
• Fits 2015-2017 Jeep Patriot, N/A
• Fits 2008-2013 Jeep Patriot, N/A
• Fits 2016 BMW 228i, N/A
• Fits 2011-2015 Chrysler 200, N/A
• Fits 2008-2014 Dodge Avenger, N/A
• Fits 2009-2013 Jeep Liberty, N/A
• Fits 2007 Jeep Liberty, N/A
• Fits 2010-2012 Dodge Caliber, N/A
• Fits 2008 Dodge Caliber, N/A
• Fits 2009-2012 Dodge Nitro, N/A
• Fits 2007 Dodge Nitro, N/A
• Fits 2009-2012 Jeep Wrangler, N/A
• Fits 2007 Jeep Wrangler, N/A
• Fits 2010-2011 Dodge Dakota, N/A
• Fits 2011 Ram Dakota, N/A
• Fits 2008-2010 Chrysler Cirrus, N/A
• Fits 2004-2010 Chrysler PT Cruiser, N/A
• Fits 2006-2010 Chrysler Sebring, N/A
• Fits 2006-2010 Chrysler Town & Country, N/A
• Fits 2005-2008 Chrysler Crossfire, N/A
• Fits 2007-2008 Chrysler Pacifica, N/A
• Fits 2008 Chrysler Voyager, N/A
• Fits 2006-2007 Chrysler 300, N/A
• Fits 2007 Chrysler Aspen, N/A
• Fits 2006-2007 Dodge Caravan, N/A
• Fits 2007 Dodge Charger, N/A
• Fits 2004-2007 Dodge Durango, N/A
• Fits 2006-2007 Dodge Grand Caravan, N/A
• Fits 2005-2007 Dodge Magnum, N/A
• Fits 2007 Jeep Commander, N/A
• Fits 2007 Jeep Grand Cherokee, N/A
• Fits 2004 Jeep Grand Cherokee, N/A
