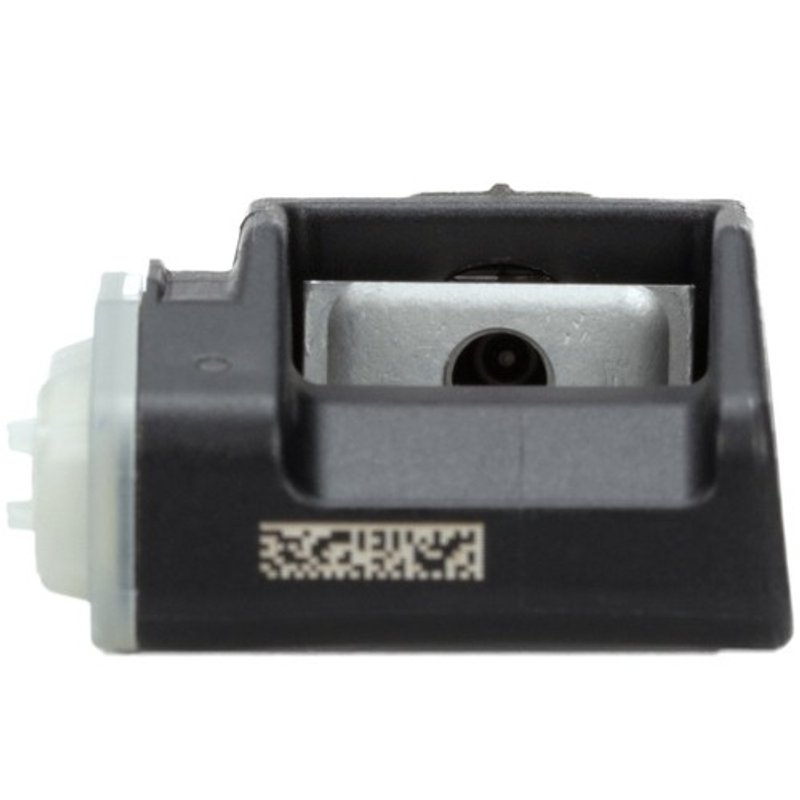

Schrader Valves 29189 Tire Pressure Monitoring System (TPMS) Sensor

Schrader TPMS Sensor 29189 Overview

Schrader Valves 29189 is a direct tire pressure monitoring system sensor built for OE-style replacement on select Mitsubishi vehicles. It uses a clamp-in aluminum valve stem, comes pre-programmed, and is supplied with the valve core, cap, nut, and grommets needed for service.

Compatible With Mitsubishi Eclipse, Galant, Montero Sport, Endeavor, Montero, and Eclipse Cross applications that use a 315 MHz direct TPMS sensor. Schrader 29189 is a practical choice when replacing a failed TPMS transmitter on vehicles such as the Mitsubishi Eclipse and Montero Sport.

Key Features

• Direct TPMS sensor for wheel-mounted tire pressure monitoring systems
• 315.0 MHz frequency for supported Mitsubishi applications
• Clamp-in aluminum valve stem with silver finish
• Pre-programmed sensor; not programmable
• Plastic housing with nickel-plated brass valve core
• Valve cap, grommets, nut, and installed valve core included
• Recommended torque: 71 in/lbs. or 8 N-m
• 2-year manufacturer warranty

Detailed Description

Schrader 29189 is a genuine OE replacement TPMS sensor engineered to match the performance expectations of factory tire pressure monitoring systems. Schrader is a long-standing OE supplier and a major global manufacturer of valves and sensing solutions, with direct TPMS technology used across a large share of vehicle platforms worldwide. This sensor is built for wheel mounting and is intended for vehicles that require a 315 MHz direct sensor, including Mitsubishi Eclipse, Galant, Montero Sport, Endeavor, Montero, and Eclipse Cross models listed in the fitment data. This part cross-references Dorman - OE Solutions 974-017 for the same application.

What It Helps Address

• TPMS warning light caused by a failed tire pressure sensor
• Loss of tire pressure data at the instrument cluster
• Sensor replacement after battery or internal transmitter failure
• Service needs after wheel or tire work on TPMS-equipped vehicles
• Restoring proper monitoring on Mitsubishi Eclipse, Galant, Montero Sport, and related models

Installation Notes and Tips

TPMS sensor service requires the proper tools, knowledge, and equipment. After installation, perform the vehicle-specific relearn procedure using a TPMS programming and diagnostic tool with OBD capability. Follow the specified clamp-in torque of 71 in/lbs. or 8 N-m, and verify the sensor frequency and fitment before installation.

Quality Assurance

Schrader sensors undergo OE-level testing, including high-speed and extreme-temperature validation, to support factory-style performance expectations. Part number 29189 is backed by a 2-year manufacturer warranty.
