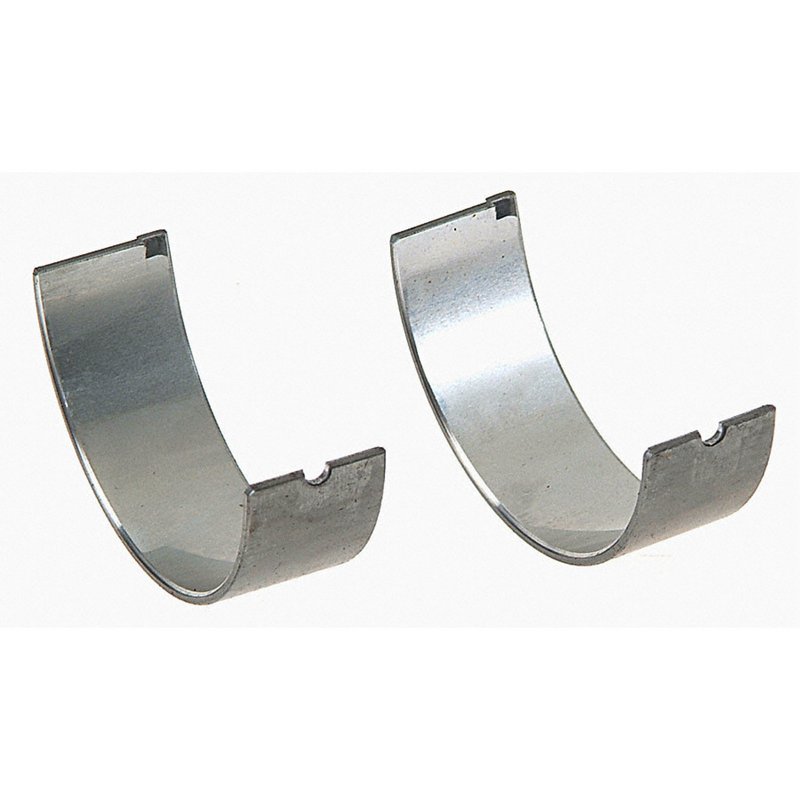

Sealed Power 1460A Engine Connecting Rod Bearing

Sealed Power 1460A Connecting Rod Bearing

Sealed Power 1460A is a standard-size engine connecting rod bearing for A-Series aluminum engines used in select Dodge trucks and vans. Built to precise dimensional limits, it supports proper rod journal clearance and consistent oil film control in service.

Key Features

• Standard size engine connecting rod bearing
• Designed for A-Series aluminum engine applications
• Housing bore range: 2.2500-2.2507 in. (57.1500-57.1680 mm)
• Standard shaft range: 2.1240-2.1250 in. (53.9500-53.9750 mm)
• Oil clearance range: 0.0005-0.0029 in. (0.0130-0.0740 mm)
• Overall length max: 0.7350 in. (18.6700 mm)
• Wall thickness max: 0.0624 in. (1.5850 mm)
• Engineered to meet tight dimensional requirements for bearing fitment

Detailed Description

Sealed Power 1460A engine connecting rod bearing is built for standard-size service in compatible Dodge applications, including 1987-2003 Dodge Dakota, 1994-2001 Dodge Ram 1500, and 1998-1999 Dodge Durango. It also fits select Dodge Ram 1500 Van, B1500, B2500, B150, B250, D150, D250, W150, D100, and W100 models with A-Series aluminum engines. The bearing’s controlled housing bore, shaft diameter, and oil clearance specifications help maintain the correct fit between the connecting rod and crankshaft journal.

Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce engine bearings that meet the demands of current engine service work. Part number 1460A is a direct reference for buyers searching for a standard-size connecting rod bearing for Dodge Dakota and Ram 1500 engine rebuilds.

This part cross-references CB1387A and CB1387P for the same application.

What It Is Used For

• Restoring proper connecting rod bearing clearance during engine rebuilds
• Replacing worn bearings that can cause rod knock or low oil pressure at the journal
• Correcting bearing wear from age, contamination, or lubrication breakdown
• Supporting smooth crankshaft rotation in A-Series aluminum engine service
• Addressing fitment needs in Dodge Dakota, Ram 1500, and Durango engine repairs

Installation Notes and Tips

Verify crankshaft journal size, rod bore condition, and oil clearance before assembly. Clean all mating surfaces thoroughly, follow the engine builder’s torque specifications, and confirm that the bearing shells seat fully in the rod and cap. Because this is a standard-size bearing, confirm that the crankshaft has not been ground undersize before installation. For best results, compare the old bearing and journal measurements with the published dimensions for Sealed Power 1460A.

Quality Assurance

Sealed Power manufactures this bearing using leading-edge materials and ISO- and QS-certified production methods. The result is a precision engine bearing built to meet the dimensional demands of modern engine repair and rebuild work.
