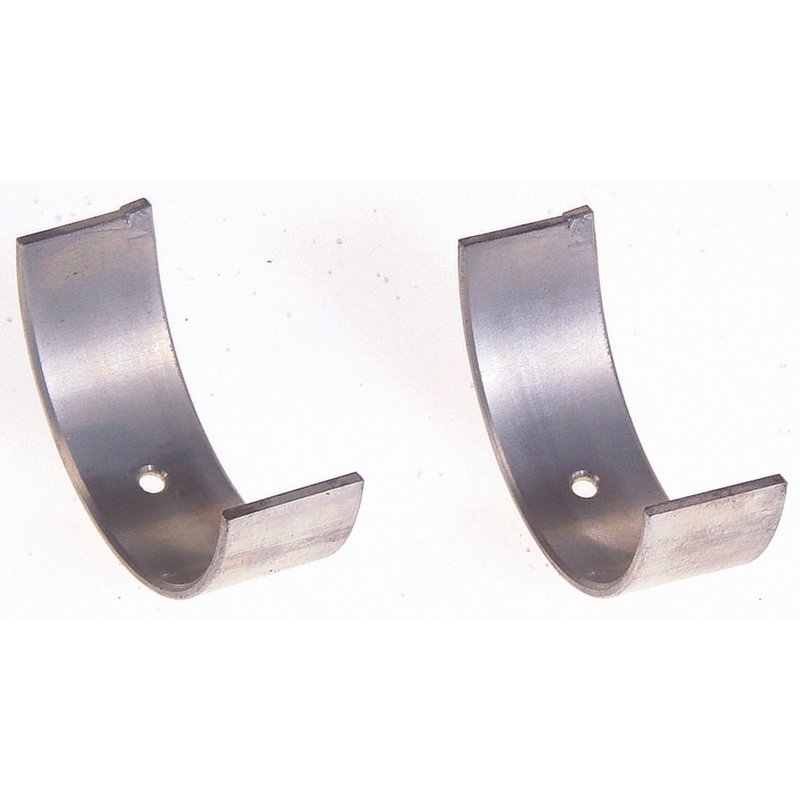

Sealed Power 1505CAA Engine Connecting Rod Bearing
Sealed Power 1505CAA Connecting Rod Bearing
Sealed Power 1505CAA is a vintage engine connecting rod bearing for classic Ford rebuilds that need standard-size fitment and dependable oil control. It is built for 1953 Ford F-100, F-250, and F-350 applications without the 100 horsepower engine, making it a direct-match choice for period-correct engine service.
Key Features
- Standard-size engine connecting rod bearing for vintage rebuilds
- Housing bore range: 2.2905-2.2910 in. (58.1790-58.1910 mm)
- Standard shaft range: 2.1380-2.1390 in. (54.3050-54.3310 mm)
- Oil clearance range: 0.0009-0.0030 in. (0.0230-0.0760 mm)
- Overall length max: 0.7700 in. (19.5600 mm)
- Wall thickness max: 0.0753 in. (1.9130 mm)
- Engineered for classic Ford engine rebuild specifications
Detailed Description
Sealed Power 1505CAA is part of the brand’s vintage component coverage for engines more than 35 years old. It is manufactured with modern materials and produced under ISO- and QS-certified processes to support consistent bearing performance and long service life in restoration work. For builders searching for a Sealed Power 1505CAA connecting rod bearing for 1953 Ford truck engines, this part provides the standard-size dimensions needed for accurate assembly and proper oil clearance.
Compatible With 1953 Ford F-100, 1953 Ford F-250, and 1953 Ford F-350, this bearing is suited to rebuilds where original-spec fitment matters. This part cross-references 1CM6211A and CB15P for the same application.
What It Helps Address
- Rod bearing wear in a vintage Ford engine rebuild
- Excessive clearance from worn original bearings
- Oil pressure loss related to bearing wear
- Noise or knock from connecting rod bearing deterioration
- Restoration work requiring standard-size bearing dimensions
Installation Notes and Tips
Verify crankshaft journal size, housing bore, and oil clearance before assembly. Measure each journal and bearing shell during engine work to confirm the standard-size dimensions match the rebuild specification. Clean all mating surfaces thoroughly and follow the engine builder’s torque and lubrication procedures during installation.
Quality Assurance
Sealed Power vintage components are produced for older applications using controlled manufacturing processes and materials selected for durability in engine rebuild service. The brand’s ISO- and QS-certified production supports consistent dimensional quality for classic Ford engine maintenance.
| Brand | Sealed Power |
|---|---|
| Part Number | 1505CAA |
| Housing Bore Max (Inch) | 2.2910 |
| Housing Bore Max (MM) | 58.1910 |
| Housing Bore Min (Inch) | 2.2905 |
| Housing Bore Min (MM) | 58.1790 |
| Oil Clearance Max (Inch) | 0.0030 |
| Oil Clearance Max (MM) | 0.0760 |
| Oil Clearance Min (Inch) | 0.0009 |
| Oil Clearance Min (MM) | 0.0230 |
| Overall Length Max (Inch) | 0.7700 |
| Overall Length Max (MM) | 19.5600 |
| Standard Shaft Max (Inch) | 2.1390 |
| Standard Shaft Max (MM) | 54.3310 |
| Standard Shaft Min (Inch) | 2.1380 |
| Standard Shaft Min (MM) | 54.3050 |
| Wall Thickness Max (Inch) | 0.0753 |
| Wall thickness Max (MM) | 1.9130 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1953 | Ford | F-100 | 3.9L | V8 | N/A | without 100 Horsepower Engine; Standard |
| 1953 | Ford | F-250 | 3.9L | V8 | N/A | without 100 Horsepower Engine; Standard |
| 1953 | Ford | F-350 | 3.9L | V8 | N/A | without 100 Horsepower Engine; Standard |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
