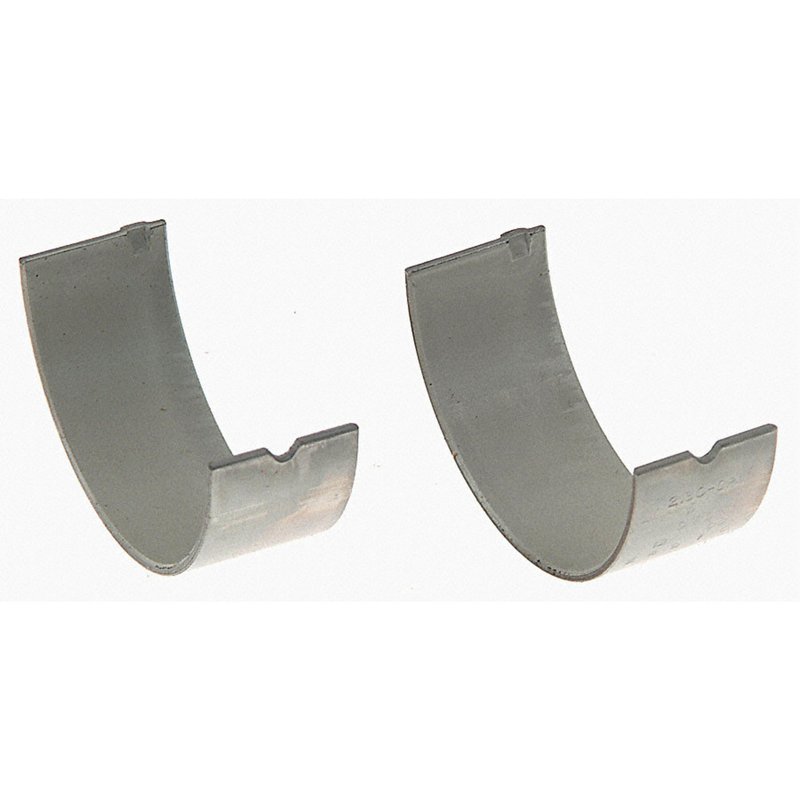

Sealed Power 2130CP Engine Connecting Rod Bearing

Overview of Sealed Power 2130CP Engine Connecting Rod Bearing

The Sealed Power 2130CP engine connecting rod bearing is engineered for reliable performance in a range of Chrysler, Dodge, Jeep, and Plymouth vehicles. Designed to meet precise specifications, this bearing supports smooth engine operation and durability under various driving conditions.

• Compatible with Chrysler, Dodge, Jeep, and Plymouth models including Ram 1500, Grand Cherokee, Charger, and Viper
• Housing bore diameter ranges from 2.2500 to 2.2507 inches (57.1500 to 57.1680 mm)
• Oil clearance tolerance between 0.0005 and 0.0029 inches (0.0130 to 0.0740 mm) for optimal lubrication
• Overall length max of 0.8480 inches (21.5400 mm) ensuring precise fitment
• Wall thickness max of 0.0624 inches (1.5850 mm) for structural integrity

Technical Specifications and Performance Details

The 2130CP connecting rod bearing from Sealed Power is manufactured to exacting standards, with a housing bore max of 2.2507 inches and a minimum of 2.2500 inches, providing a tight fit within the engine assembly. The oil clearance range of 0.0005 to 0.0029 inches ensures adequate lubrication film thickness, reducing friction and wear during engine operation. The bearing’s overall length of 0.8480 inches and wall thickness of 0.0624 inches contribute to its durability and compatibility with standard shaft diameters between 2.1240 and 2.1250 inches. These precise dimensions make it suitable for use in various Chrysler, Dodge, Jeep, and Plymouth engines, including models such as the Ram 2500, Durango, and Challenger.

Compatible Vehicles and Applications

This engine connecting rod bearing is compatible with a wide range of vehicles, including but not limited to:

• Chrysler Aspen, Town & Country, and New Yorker
• Dodge Ram 1500, Ram 2500, Dakota, and Charger
• Jeep Grand Cherokee, Grand Wagoneer, and Viper
• Plymouth Duster and Barracuda models

It is designed to maintain engine reliability and performance in these vehicles by ensuring proper bearing fit and oil clearance.

Common Issues Addressed by the 2130CP Bearing

• Excessive engine noise due to worn or damaged connecting rod bearings
• Reduced engine performance caused by improper bearing clearance
• Engine knocking or vibration linked to bearing failure
• Oil pressure loss related to bearing wear
• Premature engine wear from insufficient lubrication

Installation Notes and Tips

When installing the Sealed Power 2130CP connecting rod bearing, ensure the following:

• Verify the housing bore dimensions match the specified range (2.2500 to 2.2507 inches)
• Check oil clearance with precision measuring tools to maintain between 0.0005 and 0.0029 inches
• Clean all mating surfaces thoroughly before installation to prevent contamination
• Use proper torque specifications for connecting rod bolts to avoid bearing distortion
• Inspect the crankshaft journal for wear or damage prior to bearing installation

Quality Assurance and Warranty Information

Sealed Power manufactures the 2130CP engine connecting rod bearing to meet industry standards for durability and performance. Each bearing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. It is recommended to consult product documentation or authorized sources for exact warranty terms.
