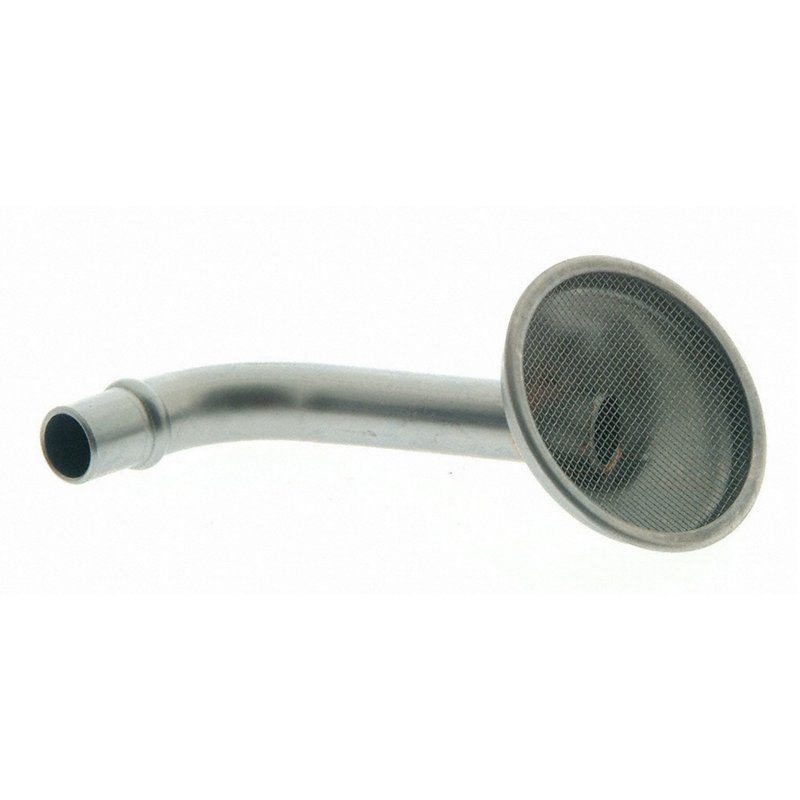

Sealed Power 224-14264 Engine Oil Pump Screen

Engine Oil Pump Screen for Deep Pan Applications

The Sealed Power 224-14264 engine oil pump screen is a premium-grade replacement part for GM truck and van applications that use a 9-inch deep oil pan. It is built with a 2.920-inch screen face diameter, a 0.600-inch tube inside diameter, and a 3.250-inch tube length for the specified fitment.

Sealed Power 224-14264 is a practical choice for maintaining proper oil pickup in compatible Chevrolet Silverado, GMC Sierra, Suburban, and related heavy-duty platforms. This part cross-references APDI 6018126 for the same application.

Key Features

• Premium-grade engine oil pump screen
• 2.920-inch screen face diameter for the listed applications
• 0.600-inch tube inside diameter
• 3.250-inch tube length
• No gasket or seal included
• Built by Sealed Power using modern materials and ISO/QS-certified manufacturing processes

Product Details

This engine oil pump screen is used in the oiling system to help maintain clean pickup flow from the oil pan to the pump. The Sealed Power 224-14264 is specified for vehicles that require a 9-inch deep oil pan, including many Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500, GMC Sierra 2500 HD, GMC Sierra 3500, and Chevrolet/GMC C/K and P-series heavy-duty applications. It also appears in fitment for Chevrolet Avalanche 2500, Suburban 2500, Express 3500, Savana 3500, and select classic 2007 HD truck models.

Compatible With 2001-2006 Chevrolet Silverado 2500 HD, 2001-2006 Chevrolet Silverado 3500, and 2001-2006 GMC Sierra 2500 HD applications that use a 9-inch deep oil pan. Also fits 1977-1986 Chevrolet C20, 1977-1986 Chevrolet C30, and 1977-1988 Chevrolet K-series heavy-duty trucks with the listed oil pan configuration.

What It Helps Address

• Restricted oil pickup caused by a worn or damaged screen
• Oil starvation concerns related to a contaminated pickup screen
• Poor oil pump inlet flow in deep-pan applications
• Service replacement needs during engine rebuild or oiling system repair
• Fitment-specific replacement for GM truck and van oiling systems

Installation Notes and Tips

Verify oil pan depth before ordering; this part is listed for use with a 9-inch deep oil pan. Confirm the tube inside diameter, tube length, and screen face diameter against the original component before installation. No gasket or seal is included, so reuse or replacement of related sealing components should be planned separately if required by the service procedure.

For best results, inspect the oil pump, pickup tube, and pan for debris or wear during installation. This part number, 224-14264, is commonly searched for Chevrolet Silverado and GMC Sierra deep-pan oiling system service.

Quality Assurance

Sealed Power states that its parts use innovative designs, advanced materials, and ISO- and QS-certified manufacturing to meet the demands of modern engines. The 224-14264 is a premium-grade component built to support consistent oil pickup in the listed applications.
