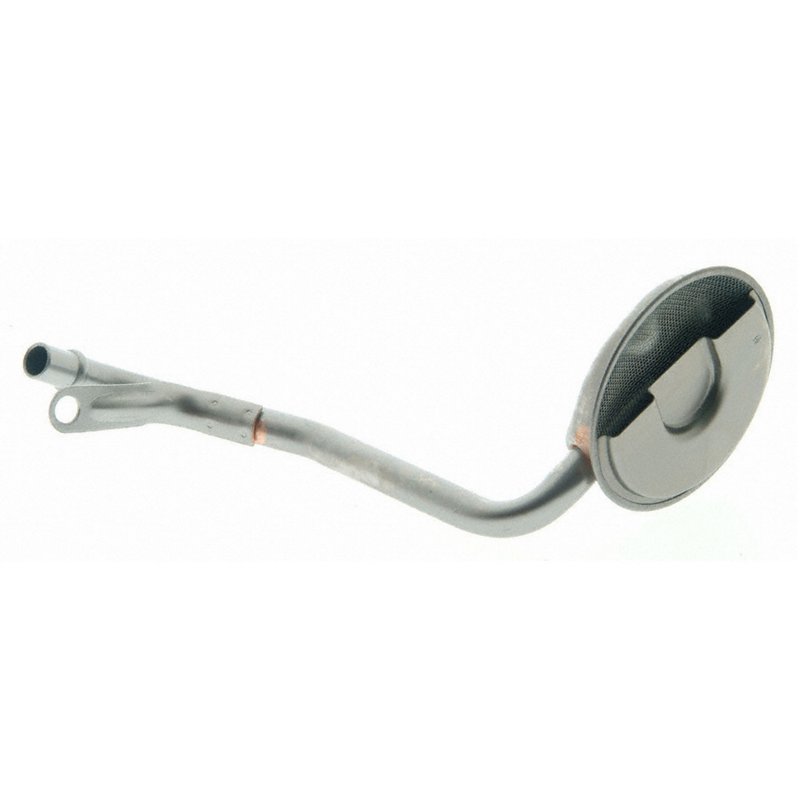

Sealed Power 224-14270 Engine Oil Pump Screen

Engine Oil Pump Screen for Jeep Applications

The Sealed Power 224-14270 engine oil pump screen is a premium-grade replacement part for Jeep engines that need reliable oil pickup performance. It is built with a 4.080-inch screen face diameter, 8.250-inch tube length, and 0.500-inch tube inside diameter to match the specified application.

Compatible With 1987-2006 Jeep Cherokee, Comanche, Grand Cherokee, TJ, Wagoneer, and Wrangler applications, this oil pump screen supports proper oil delivery in a wide range of Jeep engine builds. The Sealed Power 224-14270 is engineered using modern materials and ISO- and QS-certified manufacturing practices.

Key Features

• Part type: engine oil pump screen
• Brand: Sealed Power
• Part number: 224-14270
• Premium grade construction
• Screen face diameter: 4.080 in. (103.55 mm)
• Tube length: 8.250 in. (209.55 mm)
• Tube inside diameter: 0.500 in. (12.70 mm)
• No gasket or seal included

Detailed Description

Sealed Power 224-14270 is an engine oil pump screen designed for Jeep engines that require a precise oil pickup component. Its dimensions are specified for fitment-sensitive service work, helping maintain proper oil flow from the oil pan to the pump pickup assembly. This part cross-references APDI 6018154 for the same application.

Use this screen when servicing Jeep Cherokee, Jeep Wrangler, Jeep Grand Cherokee, Jeep Comanche, and related models where the original pickup screen is worn, damaged, or restricted. The premium-grade design reflects Sealed Power’s focus on modern materials and controlled manufacturing processes.

Common Uses

• Replacing a damaged or corroded oil pump pickup screen
• Restoring oil pickup flow after sludge or debris buildup
• Addressing low oil pressure caused by a restricted screen
• Servicing Jeep engine lubrication components during rebuilds
• Matching OE-style dimensions for Jeep oil system repair

Installation Notes and Tips

Verify tube length, tube inside diameter, and screen face diameter against the original part before installation. Inspect the oil pan, pickup tube, and pump inlet for debris or wear, and clean the lubrication system thoroughly during service. No gasket or seal is included, so confirm any additional sealing components required for your application.

Quality Assurance

Sealed Power parts are produced with leading-edge materials and manufactured under ISO and QS certified processes to support consistent quality for modern engine service. The 224-14270 is a premium replacement option for Jeep oil system maintenance.
