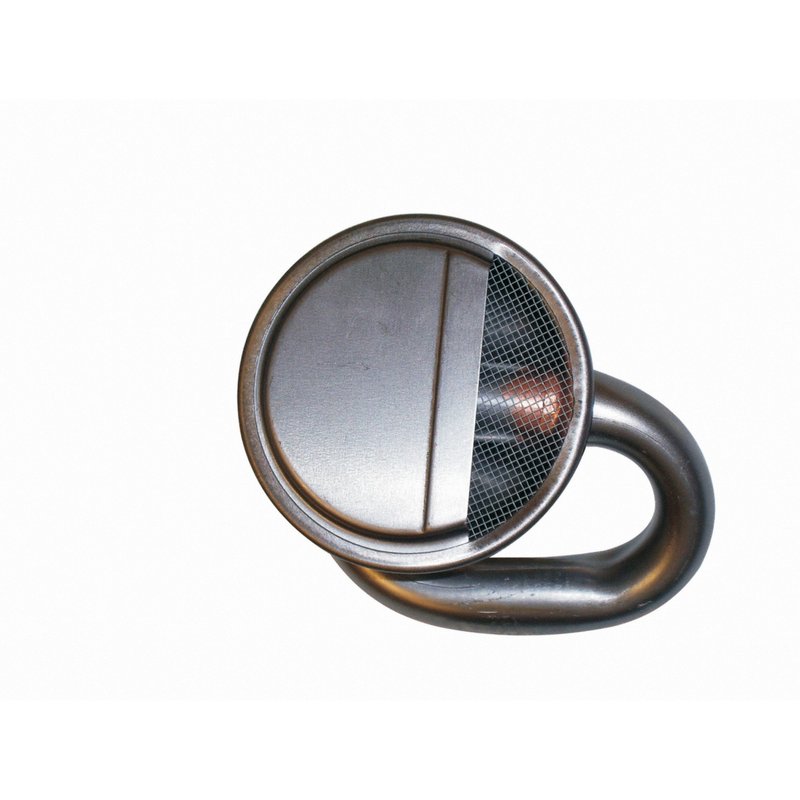

Sealed Power 224-15049 Engine Oil Pump Screen

Engine Oil Pump Screen for GM Applications

Sealed Power 224-15049 is a premium engine oil pump screen built for select GM trucks and SUVs from 1996-2007. It is used in applications such as Chevrolet Silverado 1500, GMC Sierra 1500, Chevrolet S10, and GMC Sonoma where proper oil pickup screening is critical for engine lubrication.

Key Features

• Premium-grade engine oil pump screen
• Tube inside diameter: 0.600 in. (15.24 mm)
• Tube length: 1.520 in. (38.61 mm)
• Screen face diameter: 3.260 in. (82.84 mm)
• No gasket or seal included
• Sealed Power part number 224-15049

Detailed Description

Sealed Power 224-15049 is an engine oil pump screen designed for direct use in compatible GM engine assemblies. The screen helps filter larger debris before oil reaches the pump, supporting clean oil pickup in engines used in Chevrolet Blazer, Chevrolet Express 1500, GMC Savana 1500, and related platforms. Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce components that meet demanding engine service requirements. This part cross-references 258S and 6011744 for the same application.

What It Helps Address

• Restricted oil pickup caused by debris in the sump
• Oil starvation from a damaged or clogged pickup screen
• Poor oil pump inlet flow in high-mileage engines
• Service replacement for worn or corroded pickup hardware
• Oil system maintenance on Chevrolet S10 and GMC Sonoma engines

Installation Notes and Tips

Verify tube inside diameter, tube length, and screen face diameter before installation. Confirm engine configuration and fitment details, including 1996-1999 Chevrolet S10 and GMC Sonoma applications with balance shaft where listed. Inspect the pickup tube and sealing surfaces during service, and replace any damaged related components as needed. Part number 224-15049 should be matched to the engine application before assembly.

Quality Assurance

Sealed Power manufactures this oil pump screen using premium materials and controlled production standards backed by ISO and QS certified processes. The brand positions its engine components for demanding modern engine service, and 224-15049 reflects that manufacturing approach.
