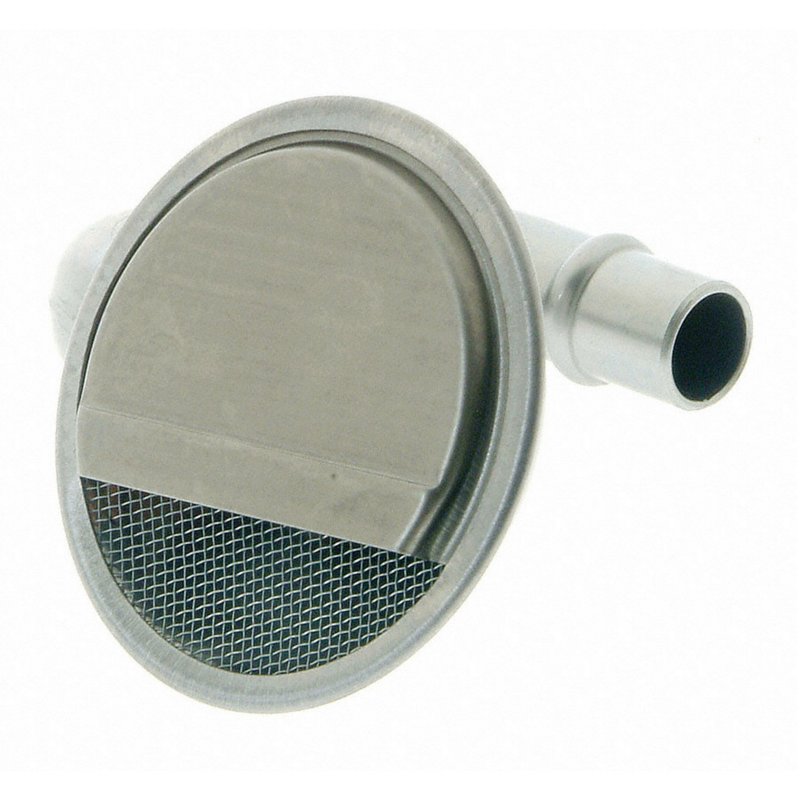

Sealed Power 224-15050 Engine Oil Pump Screen

Engine Oil Pump Screen for GM V6 Applications

The Sealed Power 224-15050 engine oil pump screen is built for select Chevrolet, GMC, Oldsmobile, and Isuzu applications that rely on a precise oil pickup assembly. It is a premium-grade replacement part for maintaining proper oil supply in engines used in the Chevrolet Astro, Blazer, S10, GMC Safari, Sonoma, Jimmy, Oldsmobile Bravada, and Isuzu Hombre.

Key Features

• Part type: engine oil pump screen
• Brand: Sealed Power
• Part number: 224-15050
• Premium grade construction
• Screen face diameter: 3.230 in. (82.12 mm)
• Tube inside diameter: 0.600 in. (15.24 mm)
• Tube length: 2.750 in. (69.85 mm)
• No gasket or seal included

Detailed Description

Sealed Power 224-15050 is an engine oil pump screen engineered for applications where the pickup screen must maintain a clean, unobstructed path to the oil pump. Sealed Power uses modern materials and ISO- and QS-certified manufacturing practices to produce replacement components that meet the demands of today’s engines. This part cross-references 259S and 6011745 for the same application.

Compatible With 1996-2005 Chevrolet Astro, 1996-2005 Chevrolet Blazer, 1996-2004 Chevrolet S10, 1996-2005 GMC Safari, 1996-2004 GMC Sonoma, 1996-2002 GMC Jimmy, 1996-2001 Oldsmobile Bravada, and 1998-2000 Isuzu Hombre. It also fits 1996-1999 Chevrolet S10 with Balance Shaft and 1996-1999 GMC Sonoma with Balance Shaft. The 224-15050 is a direct-fit style oil pump screen for these listed engine applications.

What It Helps Address

• Restricted oil pickup flow from a damaged or clogged screen
• Oil starvation concerns caused by a worn pickup assembly
• Poor oil pump inlet performance during engine service
• Replacement needs during lower-end engine repair or rebuild work

Installation Notes and Tips

Verify tube diameter, tube length, and screen face diameter against the original part before installation. Confirm whether the engine uses the balance shaft configuration on 1996-1999 Chevrolet S10 and GMC Sonoma applications. Because no gasket or seal is included, reuse or replace related sealing components as required by the engine service procedure. Always inspect the oil pan, pickup mounting area, and pump inlet for debris before final assembly.

Quality Assurance

Sealed Power parts are manufactured with attention to material selection and production consistency, using ISO- and QS-certified processes. The 224-15050 is built as a premium replacement oil pump screen for the listed GM and Isuzu applications.
