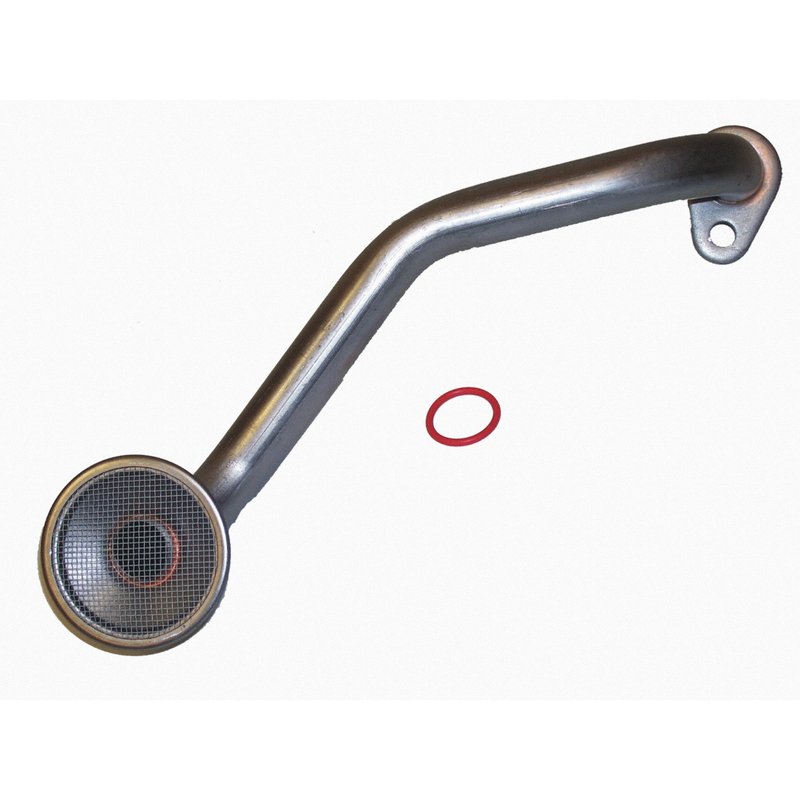

Sealed Power 224-15068 Engine Oil Pump Screen

Engine Oil Pump Screen for Chrysler and Dodge V6 Applications

The Sealed Power 224-15068 engine oil pump screen is a premium replacement component for select Chrysler, Dodge, and Plymouth vehicles. It is built with a gasket or seal included and is sized for the specified oil pump pickup applications used in 1993-1997 Concorde, Intrepid, LHS, New Yorker, and Prowler models.

Key Features

• Engine oil pump screen for cylinder block component service
• Premium grade construction from Sealed Power
• Tube inside diameter: 0.650 in. / 16.51 mm
• Tube length: 4.210 in. / 106.93 mm
• Screen face diameter: 2.270 in. / 57.62 mm
• Gasket or seal included for installation

Detailed Product Information

Sealed Power 224-15068 is an engine oil pump screen engineered for the oil pickup side of the lubrication system. Sealed Power states that its parts use modern designs, advanced materials, and ISO- and QS-certified manufacturing processes to meet the demands of current engine service. This pickup screen is listed for 1993-1997 Chrysler Concorde, 1993-1997 Chrysler Intrepid, 1994-1997 Chrysler LHS, 1993-1997 Dodge Intrepid, 1997 Plymouth Prowler, and 1994-1996 Chrysler New Yorker. This part cross-references 264S and 5281157 for the same application. The Sealed Power 224-15068 is a direct-fit service part for the listed vehicles when the original oil pump screen matches the published dimensions.

What This Part Helps Address

• Restricted oil pickup flow caused by a damaged or clogged screen
• Oil starvation concerns related to a worn pickup assembly
• Service replacement for a cracked or deteriorated screen body
• Oil pump maintenance on Chrysler Concorde, Intrepid, and LHS models
• Lubrication system repair on Plymouth Prowler and Chrysler New Yorker applications

Installation Notes and Tips

Verify the tube diameter, tube length, and screen face diameter against the original part before installation. Confirm the vehicle application and oil pump pickup location on the engine before service. Clean the mating surfaces thoroughly and replace the seal provided with the assembly during installation. For best results, inspect the oil pump and pickup area for sludge, debris, or wear that could affect oil flow.

Quality Assurance

Sealed Power manufactures this premium oil pump screen using controlled production standards and materials selected for engine service. The brand’s manufacturing approach emphasizes consistency and dimensional accuracy for the listed Chrysler, Dodge, and Plymouth applications.
