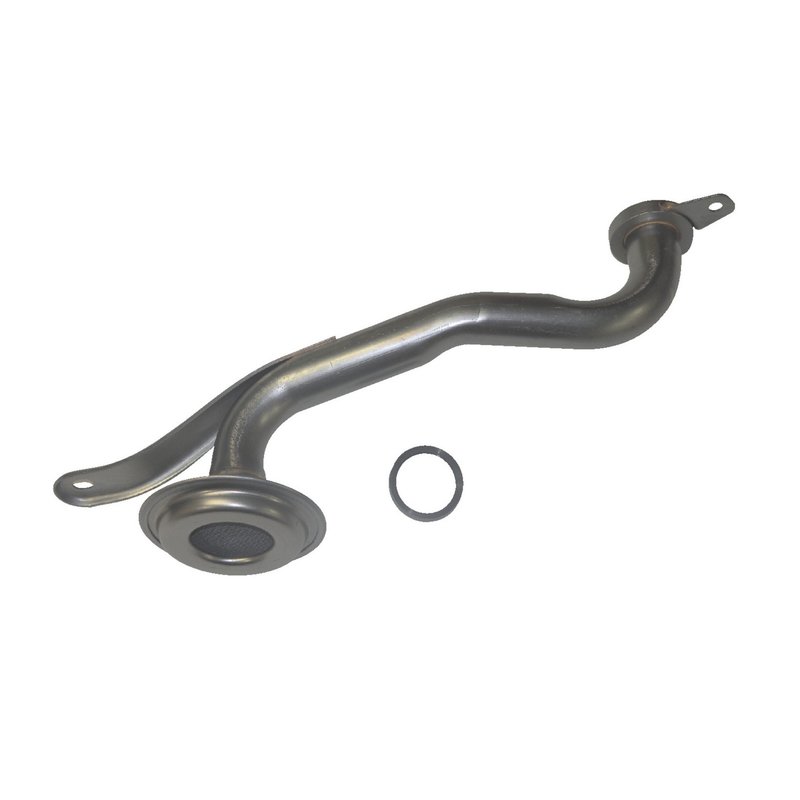

Sealed Power 224-15085 Engine Oil Pump Screen

Sealed Power Engine Oil Pump Screen for GM V6 Applications

The Sealed Power 224-15085 engine oil pump screen is a premium replacement component built for select Cadillac CTS and Chevrolet Camaro applications. It is engineered with a 3.160-inch screen face diameter, a 6.250-inch tube length, and a 0.850-inch tube inside diameter to match the specified oil pickup configuration.

Sealed Power uses modern materials and ISO- and QS-certified manufacturing practices to produce engine components that meet demanding service requirements. This oil pump screen includes a gasket or seal for a more complete service replacement.

Key Features

• Part number 224-15085 engine oil pump screen
• Premium grade replacement for engine oil pickup service
• 3.160-inch screen face diameter for the specified application
• 6.250-inch tube length and 0.850-inch tube inside diameter
• Gasket or seal included
• Built by Sealed Power for select GM engine applications

Application Details

Compatible with 2003 Cadillac CTS, 2005-2012 Cadillac CTS, and 2010-2012 Chevrolet Camaro. This Sealed Power 224-15085 oil pump screen is a direct-fit service part for the listed engine applications and is commonly searched as an engine oil pump screen for Cadillac CTS and Chevrolet Camaro models.

This part cross-references 370S and 12572086 for the same application.

What This Part Helps Address

• Restricted oil pickup flow caused by a damaged or clogged screen
• Oil pressure concerns related to pickup screen wear or contamination
• Service replacement needs during engine repair or rebuild work
• Fitment issues when replacing a worn oil pump pickup assembly component

Installation Notes and Tips

Verify engine application, pickup dimensions, and sealing surface condition before installation. Clean the oil pan and surrounding components thoroughly so debris does not enter the lubrication system during service. Confirm the gasket or seal seats correctly and inspect the pickup tube and pump area for wear or blockage before reassembly.

Quality Assurance

Sealed Power manufactures engine parts using advanced materials and certified production processes to support consistent fit and function. The 224-15085 is a premium-grade replacement designed for the listed Cadillac CTS and Chevrolet Camaro applications.
