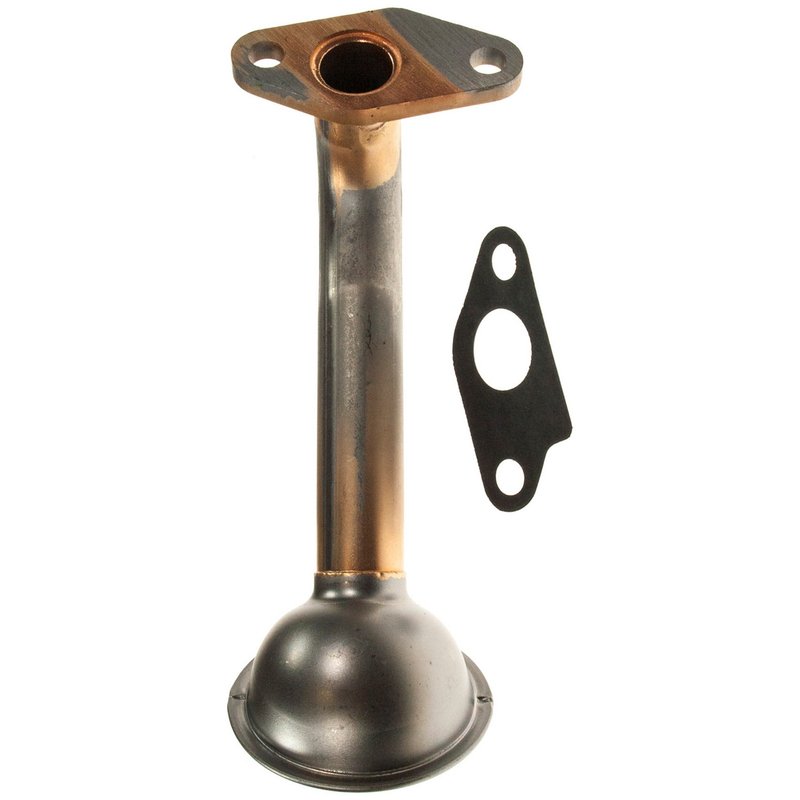

Sealed Power 224-15093 Engine Oil Pump Screen

Engine Oil Pump Screen for Hyundai and Kia

Sealed Power 224-15093 is a premium engine oil pump screen built for select Hyundai Accent and Kia Rio applications. It is engineered with a 5.850-inch tube length, 0.650-inch tube inside diameter, and 2.470-inch screen face diameter to support proper oil pickup function in the engine oiling system.

Key Features

• Engine oil pump screen for select Hyundai Accent, Kia Rio, and Kia Rio5 models
• Premium grade construction for service replacement use
• Includes gasket or seal
• Tube inside diameter: 0.650 in. / 16.51 mm
• Tube length: 5.850 in. / 148.59 mm
• Screen face diameter: 2.470 in. / 62.79 mm
• Part number: 224-15093

Detailed Description

Sealed Power 224-15093 is an engine oil pump screen designed for vehicles that require a direct-fit oil pickup component in the cylinder block oiling system. Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce replacement parts that meet the demands of current engine designs. This part cross-references 399S and 2625026010 for the same application.

Compatible With 2001-2011 Hyundai Accent, 2006-2011 Kia Rio, and 2006-2011 Kia Rio5. The part number 224-15093 is a practical reference when sourcing the correct oil pump screen for these applications.

What It Helps Address

• Restricted oil pickup flow caused by a worn or damaged screen
• Oil pump service needs during engine repair or rebuild work
• Replacement of a missing or deteriorated gasket or seal at the pickup assembly
• Fitment matching for Hyundai Accent and Kia Rio oiling system service

Installation Notes and Tips

Verify engine application, pickup tube dimensions, and screen location before installation. Clean the oiling system thoroughly during service to reduce the chance of debris entering the new screen. Confirm that the gasket or seal seats correctly and that the pickup assembly is aligned before final engine assembly. For fitment confirmation, reference 224-15093 against the vehicle’s engine code and original pickup design.

Quality Assurance

Sealed Power manufactures this part using leading-edge materials and certified production processes to support consistent replacement quality. The 224-15093 oil pump screen is built as a premium service part for select Hyundai and Kia engine applications.
