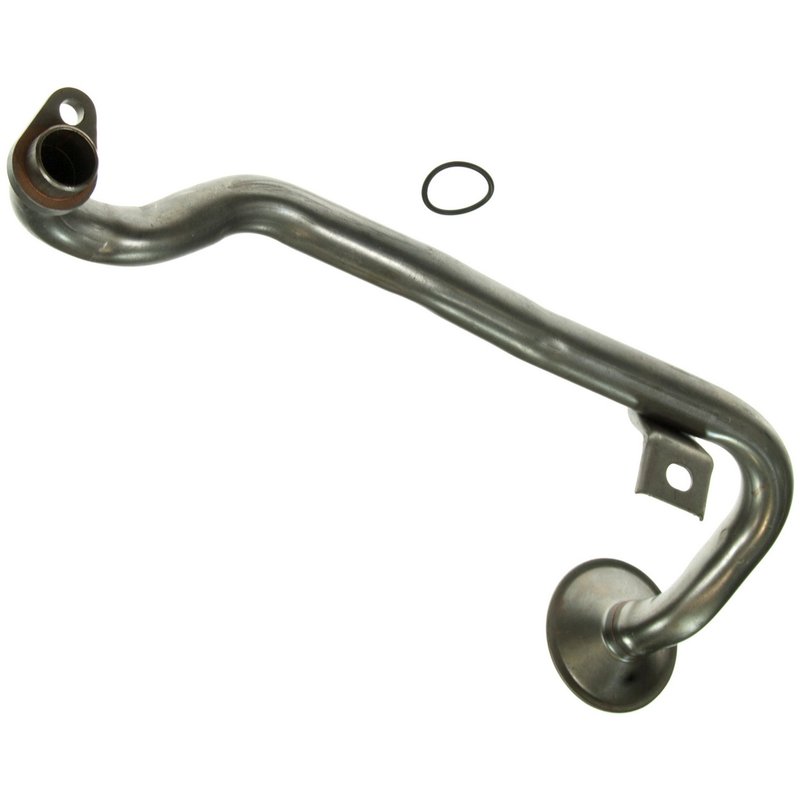

Sealed Power 224-15094 Engine Oil Pump Screen
OE Quality 60-Day Returns
Sealed Power

Sealed Power 224-15094 Engine Oil Pump Screen

Brand Sealed Power 224-15094
Tube Inside Diameter 0.800
Tube Inside Diameter 20.32
Grade Type Premium
Gasket Or Seal Included Yes
Tube Length 161.29
Tube Length 6.350
Screen Face Diameter 2.790
Screen Face Diameter 70.82
Part Description Engine oil pump screen
Fits Chrysler and Dodge · 3 vehicles

Premium grade. Built for demanding modern engines.

Seal included. Ready for a cleaner, more complete installation.

Engine oil pump screen. Helps keep oil pickup flow protected.

Cross-references 394S and 53021699BD for the same application. See all 2.

$77.22Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $77.22
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Pump Screen options

Sealed Power Engine Oil Pump Screen for Chrysler and Dodge

Sealed Power part 224-15094 is an engine oil pump screen built for 2009 Chrysler Aspen and 2009 Dodge Durango applications. It combines a premium-grade design with a gasket or seal included to support a proper oil pickup connection in the engine oiling system.

Key Features

  • Engine oil pump screen for cylinder block component service
  • Premium grade type for demanding engine applications
  • Tube inside diameter: 0.800 in. (20.32 mm)
  • Tube length: 6.350 in. (161.29 mm)
  • Screen face diameter: 2.790 in. (70.82 mm)
  • Gasket or seal included for installation
  • Sealed Power 224-15094 for direct replacement use

Detailed Description

Sealed Power 224-15094 engine oil pump screen is engineered for oil pickup service in the engine block area, where consistent oil supply is critical. The screen dimensions, including the 0.800-inch tube inside diameter and 2.790-inch screen face diameter, support a precise fit in the specified Chrysler Aspen and Dodge Durango 2009 applications. Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce components that meet the demands of current engine designs. This part cross-references Monroe Shocks & Struts (e.g., 394S, 53021699BD) for the same application.

Vehicle Fitment

  • Fits 2009 Chrysler Aspen, N/A
  • Fits 2009 Dodge Durango, N/A

What It Helps Address

  • Restricted oil pickup flow caused by a damaged or clogged screen
  • Oil starvation concerns related to a worn pickup assembly
  • Poor sealing at the pickup connection when the seal is deteriorated
  • Service needs during engine oiling system repair or rebuild work

Installation Notes and Tips

Verify the tube dimensions and screen face diameter against the original part before installation. Inspect the oil pickup area, clean the mounting surfaces, and replace any worn sealing surfaces to help maintain proper oil flow. Confirm vehicle application by year and model before ordering Sealed Power 224-15094 for a 2009 Chrysler Aspen or 2009 Dodge Durango.

Quality Assurance

Sealed Power manufactures this oil pump screen using premium materials and controlled production standards backed by ISO and QS certified manufacturing processes.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypeNotes
2009ChryslerAspen5.7LV8——
2009ChryslerAspen5.7LV8ELECTRIC/GAS—
2009DodgeDurango5.7LV8——
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
394S53021699BD
