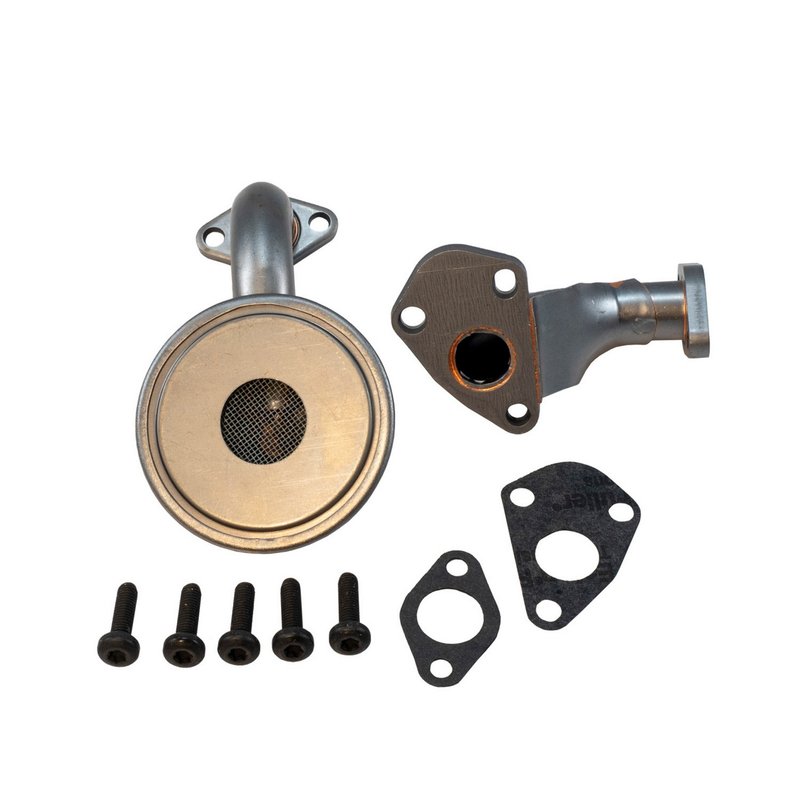

Sealed Power 224-15102 Engine Oil Pump Screen

Engine Oil Pump Screen for Ford and Mercury Applications

Sealed Power 224-15102 is an engine oil pump screen assembly built for select Ford Explorer, Ranger, Explorer Sport Trac, Explorer Sport, and Mercury Mountaineer applications. It combines the pick-up tube, screen, and adapter assembly details needed for proper oil pickup in the engine block system.

Key Features

• Engine oil pump screen assembly for cylinder block component service
• Tube inside diameter: 0.600 in. (15.24 mm)
• Tube length: 2.410 in. (61.21 mm)
• Screen face diameter: 3.030 in. (76.87 mm)
• Gasket or seal included: Yes
• Premium grade construction
• Cross-reference part number: 300SA

Detailed Description

Sealed Power 224-15102 is an engine oil pump screen designed for oil pickup service in compatible Ford and Mercury engines. The assembly is specified with a 0.600-inch tube inside diameter, a 2.410-inch tube length, and a 3.030-inch screen face diameter, helping match the original pickup geometry used in the engine oiling system. This part number is listed for 1997-2010 Ford Explorer, 2001-2010 Ford Ranger, 2007-2010 Ford Explorer Sport Trac, 2001-2005 Ford Explorer Sport Trac, 2001-2003 Ford Explorer Sport, and 1998-2010 Mercury Mountaineer applications. Sealed Power uses modern materials and ISO- and QS-certified manufacturing practices to produce parts for demanding engine service, and 224-15102 is a direct service option for vehicles that need a replacement oil pump screen assembly.

What It Helps Address

• Restricted oil pickup caused by a worn or damaged screen
• Oil starvation concerns related to a compromised pickup tube assembly
• Service replacement for a leaking or deteriorated pickup seal area
• Fitment-specific repair needs on Ford Explorer and Ranger engine oiling systems
• Replacement of a damaged oil pump screen assembly during engine service

Installation Notes and Tips

Verify engine application, pickup tube dimensions, and screen location before installation. Clean the oiling system thoroughly during service, and inspect the mating surfaces and seal area for wear or debris. Confirm that the replacement assembly matches the original pickup tube and screen configuration used in the vehicle.

Quality Assurance

Sealed Power parts are manufactured with leading-edge materials and produced under ISO and QS certified processes to support consistent engine service quality. Part number 224-15102 is built as a premium-grade replacement for the listed Ford and Mercury applications.
