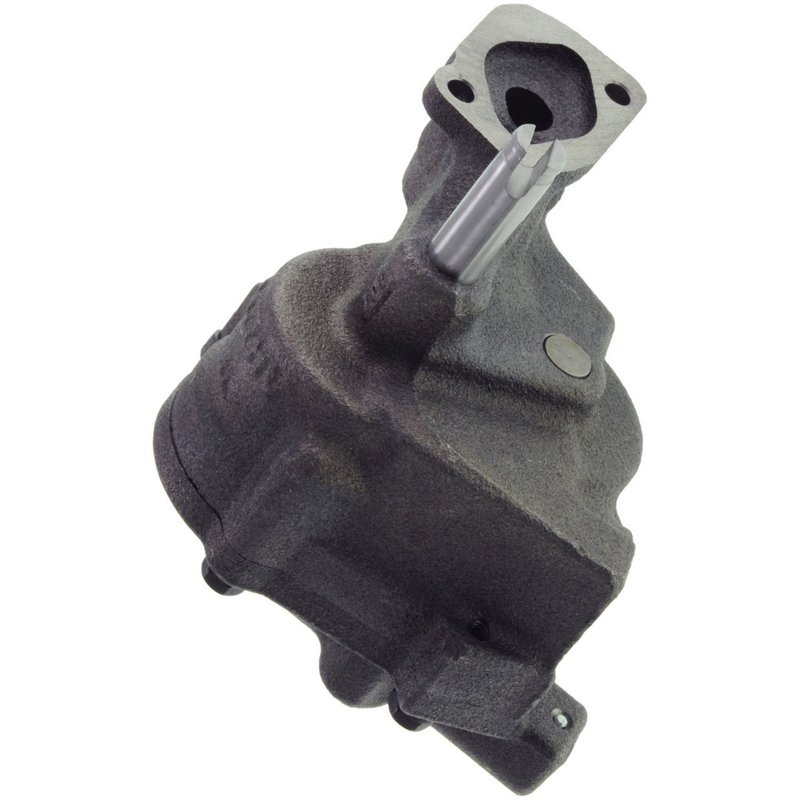

Sealed Power 224-43682 Engine Oil Pump

Sealed Power Engine Oil Pump for GM V8 Applications

The Sealed Power 224-43682 engine oil pump is a premium, high-volume, high-pressure replacement built for select GM truck and van applications. It uses a cast iron housing, a drive shaft design, and spur gears to support consistent oil delivery in demanding engine conditions.

Built for 2001-2007 Chevrolet Silverado 2500 HD, Silverado 3500, Suburban 2500, Avalanche 2500, Express 3500, and select GMC Sierra, Yukon XL, and Savana models, this pump is a direct-fit service part for engines that need dependable oil circulation. The 224-43682 is specified as a high-volume pump with 25% additional volume over stock and does not include the oil pickup tube assembly.

Key Features

• Sealed Power 224-43682 engine oil pump
• High-volume, high-pressure design
• 25% additional volume over stock
• Cast iron housing for durability
• Spur gear oil pump type with drive shaft drive
• Premium grade construction
• Two mounting holes with 0.250 in. / 6.35 mm diameter
• Gasket or seal not included

Detailed Description

Sealed Power builds this oil pump with ISO- and QS-certified manufacturing practices and modern material selection to meet the demands of current engine service work. The gear-style pump design is intended for applications that require stronger oil movement than a standard-volume unit, while the cast iron body adds strength in a critical lubrication component. If you are replacing a worn GM truck oil pump or servicing a high-mileage engine, the 224-43682 provides the specifications needed for a proper repair.

This part cross-references Monroe Shocks & Struts (e.g., M77HV81) for the same application.

What This Oil Pump Helps Address

• Low oil pressure caused by a worn pump
• Reduced oil circulation in high-mileage engines
• Oil delivery concerns after engine service
• Pressure loss from gear wear or housing wear
• Replacement needs on GM truck and van V8 applications

Installation Notes and Tips

• Fits 2007 Chevrolet Silverado 2500 HD Classic, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2007 Chevrolet Silverado 3500 Classic, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2007 GMC Sierra 2500 HD Classic, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2007 GMC Sierra 3500 Classic, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2002-2006 Chevrolet Avalanche 2500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 Chevrolet Silverado 2500 HD, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 Chevrolet Silverado 3500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 Chevrolet Suburban 2500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 GMC Sierra 2500 HD, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 GMC Sierra 3500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2006 GMC Yukon XL 2500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2002 Chevrolet Express 3500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly
• Fits 2001-2002 GMC Savana 3500, N/A; High Volume Pump; Does Not Include Oil Pickup Tube Assembly

Verify engine configuration and oil pickup tube requirements before installation. Prime the pump and confirm proper oil pressure after assembly. The Sealed Power 224-43682 is a direct service replacement for select Chevrolet Silverado and GMC Sierra applications, as well as related Chevrolet and GMC heavy-duty models.

Quality Assurance

Sealed Power uses leading-edge materials and certified manufacturing processes to produce engine components for modern service demands. The 224-43682 is a premium-grade oil pump built to meet the specifications listed for the confirmed GM applications above.
