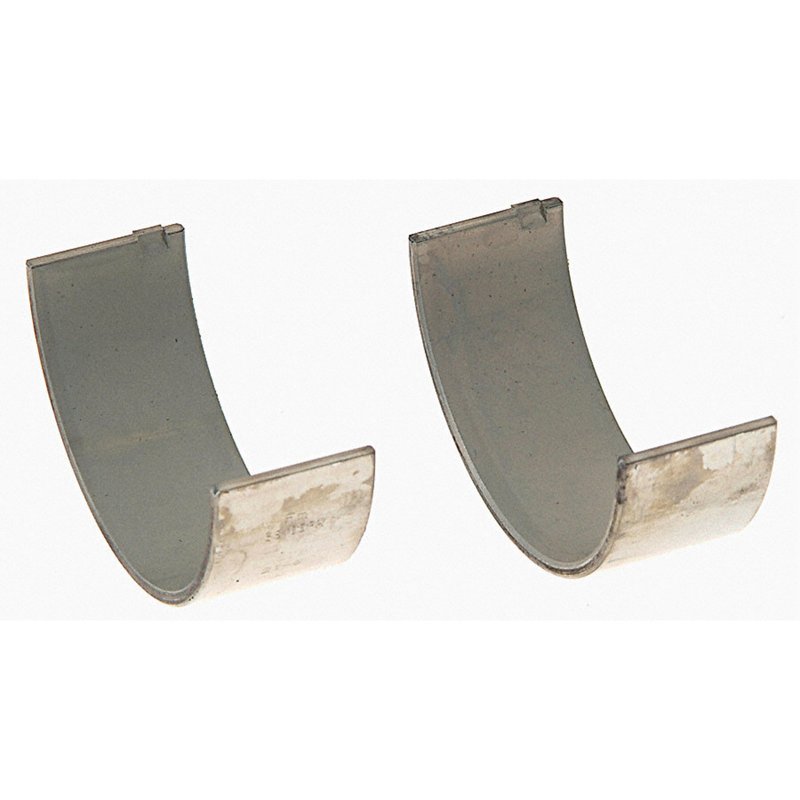

Sealed Power 3810CPA Engine Connecting Rod Bearing

Overview of Sealed Power Engine Connecting Rod Bearing 3810CPA

The Sealed Power 3810CPA engine connecting rod bearing is engineered for reliable performance in Ford trucks and vans. Designed to meet precise specifications, this bearing supports smooth engine operation in models like the Ford E-350 Econoline and F-250 Super Duty.

• Housing Bore Diameter: 2.6905 to 2.6910 inches (68.3390 to 68.3510 mm)
• Oil Clearance Range: 0.0011 to 0.0036 inches (0.0280 to 0.0910 mm)
• Overall Length Max: 0.9640 inches (24.4900 mm)
• Standard Shaft Diameter: 2.4980 to 2.4990 inches (63.4490 to 63.4750 mm)
• Wall Thickness Max: 0.0952 inches (2.4180 mm)

Technical Specifications and Design Details

The 3810CPA connecting rod bearing from Sealed Power is manufactured to exacting tolerances to ensure optimal fit and function. The housing bore dimensions range narrowly between 2.6905 and 2.6910 inches, providing a precise fit for the connecting rod journal. Oil clearance is carefully controlled between 0.0011 and 0.0036 inches, which is critical for maintaining proper lubrication and minimizing wear. The bearing’s overall length of 0.9640 inches and wall thickness of 0.0952 inches contribute to its durability and ability to withstand engine stresses.

Compatible Ford Models for Part Number 3810CPA

This engine connecting rod bearing is compatible with a range of Ford vehicles, including:

• Ford E-350 Club Wagon and Econoline variants
• Ford E-350 Super Duty
• Ford Excursion
• Ford F-250 and F-250 Super Duty
• Ford F-350 and F-350 Super Duty

These fitments ensure that the 3810CPA bearing meets the specific engine requirements for these models, supporting reliable engine performance.

Common Applications and Problem Resolution

• Replacement of worn or damaged connecting rod bearings
• Restoring proper oil clearance to prevent engine knocking
• Reducing bearing wear caused by improper fit or lubrication
• Addressing engine noise related to bearing failure
• Supporting engine rebuilds or overhauls on compatible Ford trucks and vans

Installation Notes and Recommendations

When installing the Sealed Power 3810CPA connecting rod bearing, ensure the housing bore and shaft dimensions are within specified tolerances. Proper cleaning of the bearing surface and lubrication with engine oil before installation is essential. Verify oil clearance using plastigage or a similar method to confirm correct fit. Follow manufacturer torque specifications for connecting rod bolts to avoid bearing damage.

Quality Assurance and Warranty Information

Sealed Power bearings are manufactured under strict quality control standards to meet OEM specifications. The 3810CPA part number undergoes rigorous testing to ensure durability and performance in demanding engine environments. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation for exact warranty terms.
