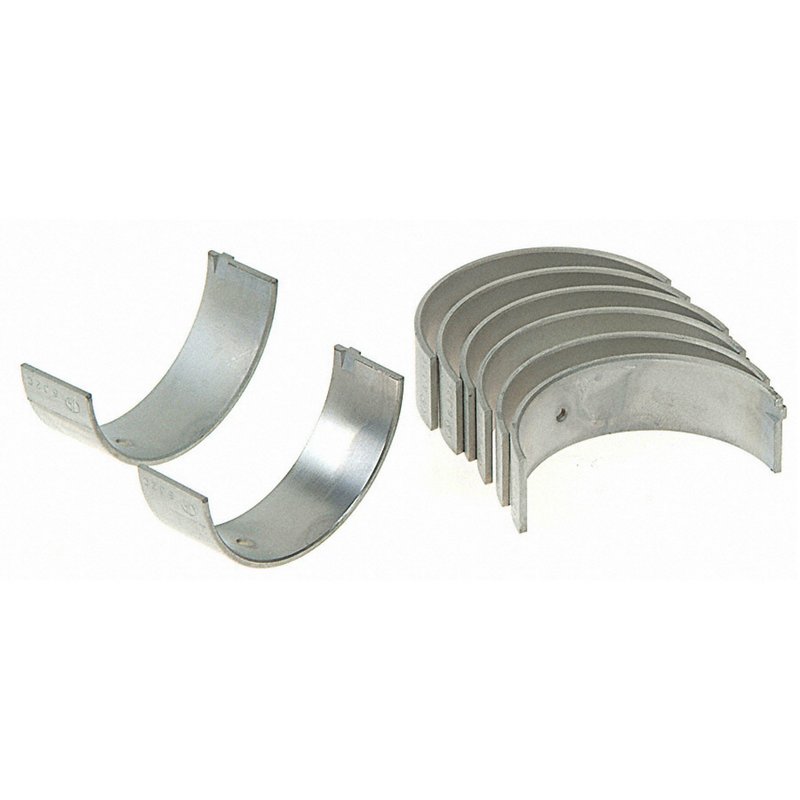

Sealed Power 4-1610CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 4-1610CP

The Sealed Power Engine Connecting Rod Bearing Set 4-1610CP is designed specifically for Toyota Paseo and Tercel models. This bearing set ensures precise fitment and reliable performance by adhering to strict dimensional tolerances.

• Housing Bore Diameter Range: 1.8110 to 1.8118 inches (45.9990 to 46.0200 mm)
• Oil Clearance Range: 0.0005 to 0.0021 inches (0.0130 to 0.0530 mm)
• Overall Length Max: 0.5940 inches (15.0900 mm)
• Standard Shaft Diameter Range: 1.6929 to 1.6935 inches (43.0000 to 43.0150 mm)
• Wall Thickness Max: 0.0587 inches (1.4910 mm)

Technical Details and Specifications

The 4-1610CP connecting rod bearing set from Sealed Power is engineered to meet the exacting standards required for Toyota Paseo and Tercel engines. The housing bore dimensions range narrowly between 1.8110 and 1.8118 inches, ensuring a precise fit within the engine block. Oil clearance specifications are tightly controlled between 0.0005 and 0.0021 inches, which is critical for maintaining proper lubrication and minimizing wear during engine operation. The overall length of the bearing is 0.5940 inches, with a wall thickness maximum of 0.0587 inches, providing durability and strength under high-stress conditions. The standard shaft diameter range of 1.6929 to 1.6935 inches ensures compatibility with the connecting rod journals of the specified Toyota models.

Compatible Vehicles and Applications

This engine connecting rod bearing set is compatible with the following Toyota vehicles:

• Toyota Paseo
• Toyota Tercel

It is intended for use in engine rebuilds or repairs where the connecting rod bearings require replacement due to wear, scoring, or damage.

Common Issues Addressed by This Bearing Set

• Excessive bearing wear causing engine knocking or noise
• Oil clearance irregularities leading to insufficient lubrication
• Connecting rod bearing failure resulting in reduced engine performance
• Engine overheating due to bearing friction
• Vibration or rough engine operation linked to bearing degradation

Installation Notes and Tips

When installing the Sealed Power 4-1610CP connecting rod bearing set, ensure that all mating surfaces are clean and free of debris. Verify the housing bore and shaft dimensions to confirm compatibility. Proper torque specifications should be followed to avoid bearing distortion. It is recommended to check oil clearance with plastigage or a similar measuring tool to confirm correct bearing clearance before final assembly.

Quality Assurance and Warranty

Sealed Power manufactures this connecting rod bearing set to meet OEM specifications for Toyota Paseo and Tercel engines. The part number 4-1610CP is subject to strict quality control processes to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Sealed Power products typically come with a limited warranty against manufacturing defects.
