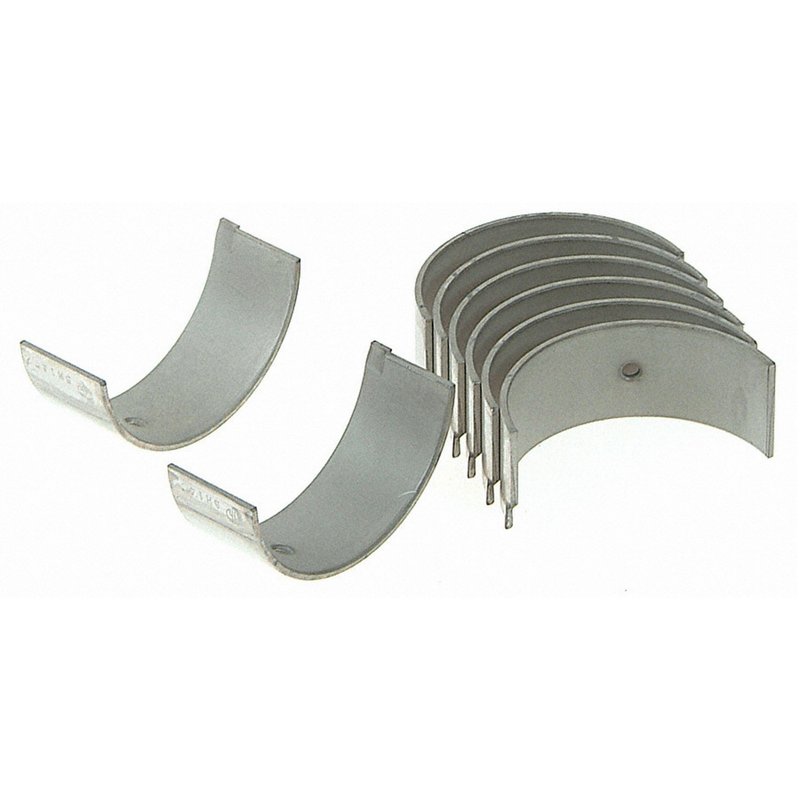

Sealed Power 4-4190CP Engine Connecting Rod Bearing Set

Sealed Power Engine Connecting Rod Bearing Set Overview

The Sealed Power 4-4190CP engine connecting rod bearing set is engineered for precise fitment and reliable performance in select Chevrolet, Geo, GMC, Pontiac, and Suzuki vehicles. Designed to meet exacting specifications, this bearing set supports smooth engine operation and durability.

• Housing bore diameter ranges from 1.8504 to 1.8512 inches (47.0000 to 47.0200 mm)
• Oil clearance between 0.0006 and 0.0028 inches (0.0140 to 0.0710 mm) for optimal lubrication
• Overall length max of 0.7080 inches (18.0000 mm)
• Standard shaft diameter between 1.7316 and 1.7323 inches (43.9820 to 44.0000 mm)
• Wall thickness max of 0.0587 inches (1.4930 mm)

Technical Specifications and Performance Details

This engine connecting rod bearing set is manufactured to precise dimensional tolerances to ensure proper clearance and fit within the engine assembly. The housing bore dimensions, ranging from 1.8504 to 1.8512 inches, provide a secure fit around the crankshaft journal. Oil clearance specifications between 0.0006 and 0.0028 inches allow for adequate lubrication film thickness, reducing friction and wear during engine operation. The overall length and wall thickness are optimized to maintain structural integrity while accommodating engine dynamics. These specifications contribute to consistent engine performance and longevity.

Compatible Vehicles and Applications

The Sealed Power 4-4190CP bearing set is compatible with a range of vehicles including Chevrolet, Geo, GMC, Pontiac, and Suzuki models such as the Esteem, Sidekick, Sunrunner, Swift, Tracker, Vitara, and X-90. This makes it suitable for engine rebuilds or repairs requiring precise connecting rod bearing replacement in these specific makes and models.

• Reduces engine knocking and bearing noise
• Addresses excessive bearing wear or damage
• Restores proper oil clearance to prevent lubrication failure
• Helps correct engine vibration related to bearing issues
• Supports engine rebuilds requiring OEM-spec bearings

Installation Notes and Tips

When installing the Sealed Power 4-4190CP connecting rod bearing set, ensure the crankshaft journals are clean and free of debris. Verify the housing bore and shaft dimensions match the specified tolerances to maintain proper oil clearance. Use assembly lubricant during installation to prevent initial wear. Torque connecting rod bolts to manufacturer specifications and double-check bearing alignment before engine reassembly.

Quality Assurance and Warranty

Sealed Power manufactures this connecting rod bearing set to meet industry standards for durability and performance. Each bearing set undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects, providing confidence in product reliability.
