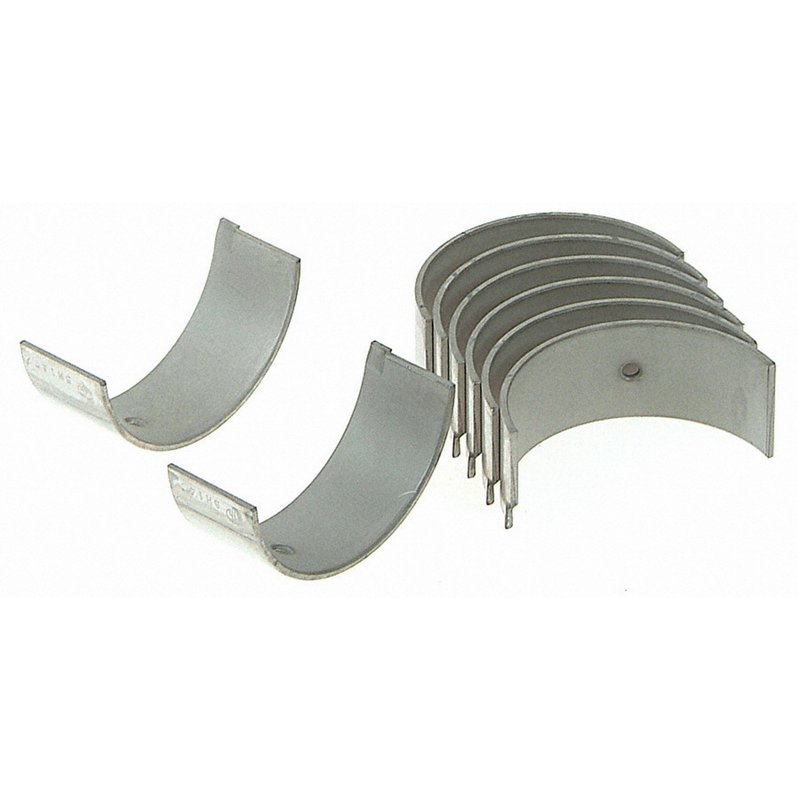

Sealed Power 4-4210CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 4-4210CP

The Sealed Power Engine Connecting Rod Bearing Set 4-4210CP is designed for reliable performance in select Chevrolet and Pontiac vehicles. This bearing set is engineered to meet precise specifications, ensuring proper fit and function in engines such as the Chevrolet Aveo, Aveo5, Pontiac LeMans, Optima, Wave, and Wave5.

• Compatible with Chevrolet Aveo, Aveo5, Pontiac LeMans, Optima, Wave, and Wave5
• Housing bore diameter ranges from 1.8110 to 1.8115 inches (45.9990 to 46.0120 mm)
• Oil clearance between 0.0005 and 0.0025 inches (0.0130 to 0.0640 mm) for optimal lubrication
• Overall length max of 0.6550 inches (16.6400 mm)
• Standard shaft diameter between 1.6918 and 1.6924 inches (42.9720 to 42.9870 mm)
• Wall thickness max of 0.0591 inches (1.5010 mm)

Technical Specifications and Performance Details

The 4-4210CP connecting rod bearing set from Sealed Power is manufactured to precise dimensional tolerances to ensure proper engine operation. The housing bore max and min dimensions (1.8115 and 1.8110 inches respectively) provide a tight fit around the crankshaft, while the oil clearance range of 0.0005 to 0.0025 inches allows for adequate lubrication without excessive play. The overall length and wall thickness are optimized to maintain bearing strength and durability under engine load. These specifications are critical for maintaining engine efficiency and preventing premature wear in the Chevrolet Aveo and Pontiac models listed.

Applications and Common Engine Issues Addressed

• Replacement for worn or damaged connecting rod bearings in Chevrolet Aveo and Pontiac LeMans engines
• Helps resolve engine knocking caused by bearing clearance issues
• Prevents excessive oil consumption related to bearing wear
• Reduces risk of crankshaft damage due to improper bearing fit
• Supports engine rebuilds requiring precise bearing dimensions

Installation Notes and Recommendations

When installing the Sealed Power 4-4210CP bearing set, ensure that all mating surfaces are clean and free of debris. Verify the housing bore and shaft dimensions to confirm compatibility with the specified tolerances. Proper lubrication during installation is essential to prevent initial wear. It is recommended to follow the vehicle manufacturer’s torque specifications for connecting rod bolts and to inspect the crankshaft journal for scoring or damage before assembly.

Quality Assurance and Warranty Information

Sealed Power manufactures the 4-4210CP connecting rod bearing set to meet industry standards for durability and performance. Each bearing set undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
