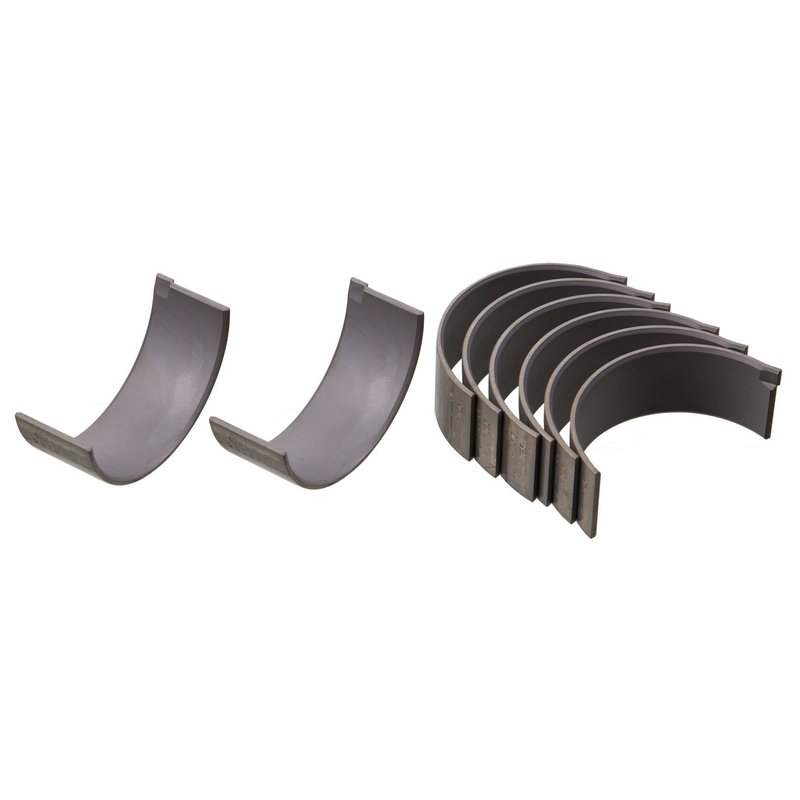

Sealed Power 4-4965P Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 4-4965P

The Sealed Power Engine Connecting Rod Bearing Set 4-4965P is designed specifically for Honda Civic and Civic del Sol models. This bearing set ensures precise fitment and reliable performance by matching exact housing bore and shaft dimensions.

• Housing Bore Max: 1.8905 inches (48.02 mm)
• Overall Length Max: 0.7630 inches (19.4 mm)
• Standard Shaft Diameter Range: 1.7707 to 1.7717 inches (44.976 to 45.001 mm)
• Wall Thickness Max: 0.0587 inches (1.492 mm)

Technical Specifications and Design Details

The 4-4965P connecting rod bearing set features a housing bore maximum diameter of 1.8905 inches, providing a precise fit within the engine block. The overall length of each bearing is 0.7630 inches, ensuring proper coverage and support along the connecting rod journal. The bearing is engineered to accommodate a standard shaft diameter ranging from 1.7707 to 1.7717 inches, which corresponds to 44.976 to 45.001 millimeters, maintaining tight tolerances for optimal engine performance. Additionally, the wall thickness of 0.0587 inches contributes to durability and wear resistance under operating conditions.

Compatible Vehicles and Applications

This Sealed Power engine connecting rod bearing set is compatible with the following Honda models:

• Honda Civic
• Honda Civic del Sol

It is intended for use in engine rebuilds or repairs where the connecting rod bearings require replacement due to wear or damage.

Common Issues Addressed by This Bearing Set

• Reducing engine knocking caused by worn connecting rod bearings
• Restoring proper clearance between the connecting rod and crankshaft
• Preventing premature bearing failure due to incorrect sizing or wear
• Improving oil film retention for smoother engine operation
• Minimizing metal-to-metal contact to reduce engine damage

Installation Notes and Tips

When installing the Sealed Power 4-4965P connecting rod bearing set, ensure the following:

• Verify the housing bore and shaft dimensions match the specified tolerances
• Clean all mating surfaces thoroughly before installation
• Use proper lubrication on bearing surfaces during assembly
• Check for correct bearing orientation and alignment
• Torque connecting rod bolts to manufacturer specifications

Quality Assurance and Warranty

Sealed Power manufactures this connecting rod bearing set to meet OEM specifications for Honda engines. The product undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Sealed Power products typically come with a limited warranty against manufacturing defects.
