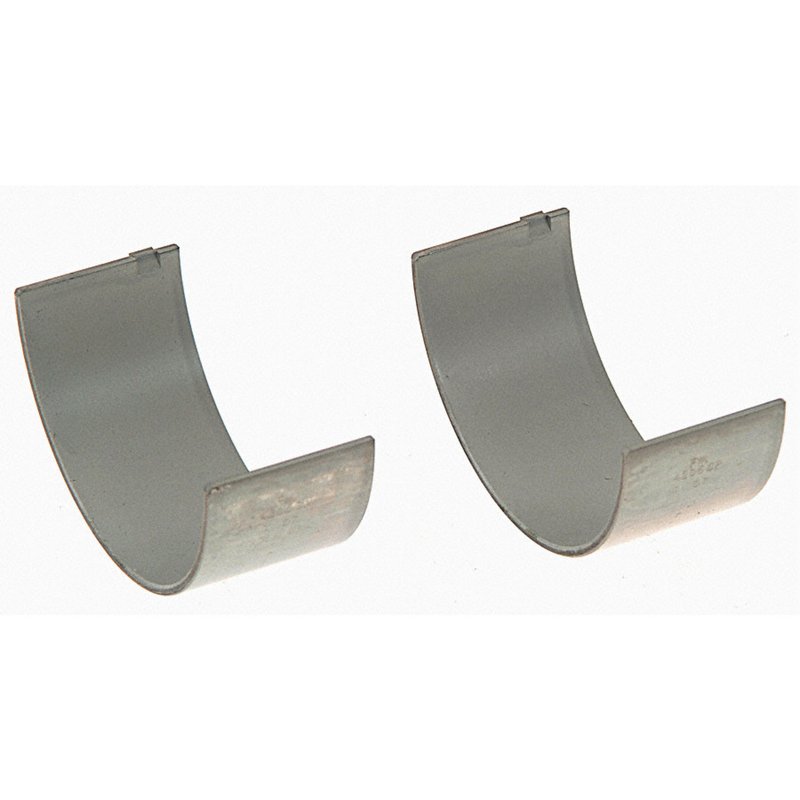

Sealed Power 4205CP Engine Connecting Rod Bearing

Overview of Sealed Power 4205CP Engine Connecting Rod Bearing

The Sealed Power 4205CP engine connecting rod bearing is engineered for reliable performance in heavy-duty vehicles. Designed to meet precise specifications, this bearing supports smooth engine operation in Chevrolet, Dodge, and GMC models including the D250, D350, P30, P3500, Ram 2500, Ram 3500, W250, and W350.

• Housing Bore Diameter: 2.8735 to 2.8745 inches (72.9870 to 73.0130 mm)
• Oil Clearance Range: 0.0015 to 0.0045 inches (0.0380 to 0.1140 mm)
• Overall Length Max: 1.2250 inches (31.1300 mm)
• Standard Shaft Diameter: 2.7161 to 2.7170 inches (68.9870 to 69.0130 mm)
• Wall Thickness Max: 0.0774 inches (1.9680 mm)
• Designed for flange type P installation

Technical Specifications and Design Details

The 4205CP connecting rod bearing from Sealed Power is manufactured to exacting tolerances to ensure optimal fit and function. The housing bore dimensions range narrowly between 2.8735 and 2.8745 inches, providing a precise fit for the connecting rod housing. Oil clearance is carefully controlled between 0.0015 and 0.0045 inches, which is critical for maintaining proper lubrication and reducing wear during engine operation. The bearing’s overall length of 1.2250 inches and wall thickness of 0.0774 inches contribute to its durability and compatibility with standard shaft diameters between 2.7161 and 2.7170 inches. This bearing is designed for flange type P configurations, commonly used in heavy-duty engine assemblies.

Compatible Vehicles and Applications

This engine connecting rod bearing is compatible with a range of Chevrolet, Dodge, and GMC heavy-duty trucks and vans. Specifically, it fits models such as Chevrolet D250 and D350, Dodge Ram 2500 and Ram 3500, GMC P30, P3500, W250, and W350. The part number 4205CP ensures you are selecting the correct bearing for these applications, supporting engine reliability and performance.

• Reduces engine knocking and vibration caused by worn bearings
• Prevents excessive wear on connecting rods and crankshaft journals
• Maintains proper oil clearance to avoid lubrication failure
• Helps restore engine compression and smooth operation
• Addresses bearing noise and overheating issues

Installation Notes and Tips

When installing the Sealed Power 4205CP connecting rod bearing, ensure the housing bore and shaft dimensions are within specified tolerances. Proper cleaning of the bearing surfaces and lubrication with engine oil before installation is recommended. Use appropriate tools to avoid damage to the bearing shell and verify oil clearance with plastigage or similar measuring tools. Follow manufacturer torque specifications for connecting rod bolts to maintain bearing alignment and performance.

Quality Assurance and Warranty

Sealed Power bearings are manufactured under strict quality control standards to meet OEM specifications. The 4205CP bearing undergoes rigorous dimensional and material testing to ensure durability and performance in demanding engine environments. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects, providing confidence in the part’s reliability for Chevrolet, Dodge, and GMC heavy-duty vehicle applications.
