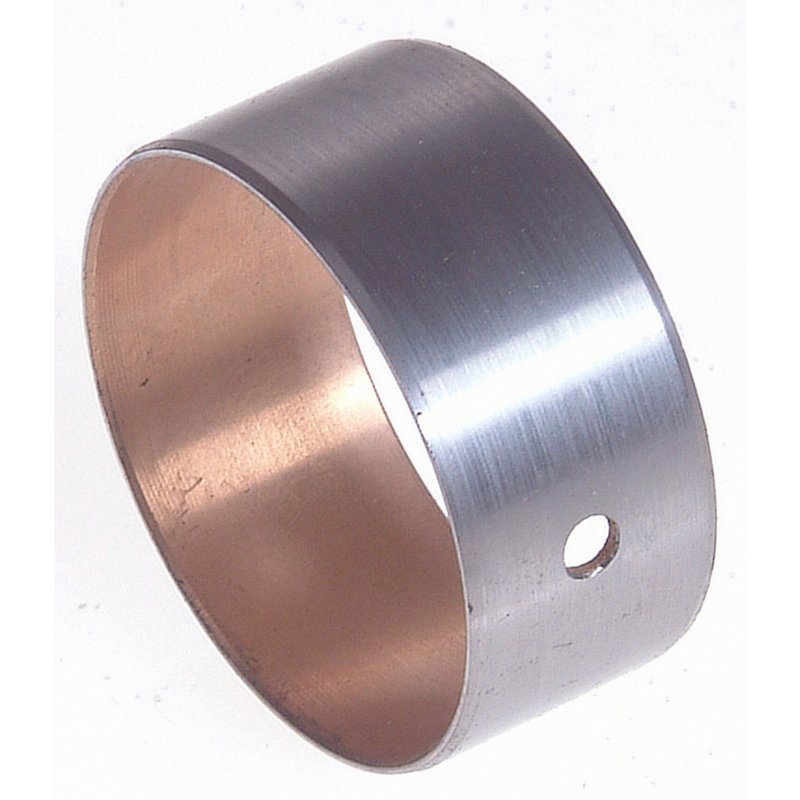

Sealed Power 4207DR Engine Camshaft Bearing

Reliable Engine Camshaft Bearing for Dodge Ram 2500 and 3500

The Sealed Power 4207DR engine camshaft bearing is engineered to meet the precise specifications required for Dodge Ram 2500 and Ram 3500 models. Designed to ensure optimal camshaft performance, this bearing supports smooth engine operation and durability under demanding conditions.

• Housing Bore Diameter: 2.3316 to 2.3326 inches (59.2230 to 59.2480 mm)
• Oil Clearance Range: 0.0030 to 0.0064 inches (0.0760 to 0.1630 mm)
• Overall Length: Maximum 1.0100 inches (25.6500 mm)
• Standard Shaft Diameter: 2.1255 to 2.1265 inches (53.9880 to 54.0130 mm)
• Wall Thickness: Maximum 0.1010 inches (2.5650 mm)

Technical Specifications and Performance Details

The Sealed Power 4207DR camshaft bearing is manufactured with tight tolerances to fit the housing bore diameter between 2.3316 and 2.3326 inches, ensuring a secure and precise fit within the engine block. The oil clearance is carefully controlled between 0.0030 and 0.0064 inches, providing the necessary lubrication gap to reduce friction and wear on the camshaft. With an overall length of up to 1.0100 inches, this bearing maintains proper alignment and support for the camshaft during engine operation. The standard shaft diameter compatibility ranges from 2.1255 to 2.1265 inches, matching the camshaft specifications for Dodge Ram 2500 and 3500 engines. Wall thickness of up to 0.1010 inches contributes to the bearing's structural integrity and durability under high load conditions.

Compatible Vehicles and Applications

This engine camshaft bearing is specifically compatible with Dodge Ram 2500 and Ram 3500 models, making it suitable for maintenance and repair of these heavy-duty trucks. It is designed to address common engine issues such as:

• Excessive camshaft wear or scoring
• Oil pressure loss due to bearing clearance issues
• Engine knocking or unusual noises from the camshaft area
• Reduced engine performance caused by bearing failure
• Preventative replacement during engine rebuilds

Installation Notes and Tips

Proper installation of the Sealed Power 4207DR camshaft bearing is critical for engine longevity. Ensure the housing bore is clean and free of debris before installation. Verify the bearing orientation and alignment to maintain correct oil clearance. Use appropriate tools to avoid damaging the bearing surface during installation. It is recommended to check oil clearance with plastigage or a similar measuring tool after installation to confirm specifications are met.

Quality Assurance and Warranty Information

Sealed Power manufactures the 4207DR camshaft bearing to meet OEM standards for durability and performance. Each bearing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against manufacturing defects, providing confidence in the part's reliability for Dodge Ram 2500 and 3500 engine repairs.
