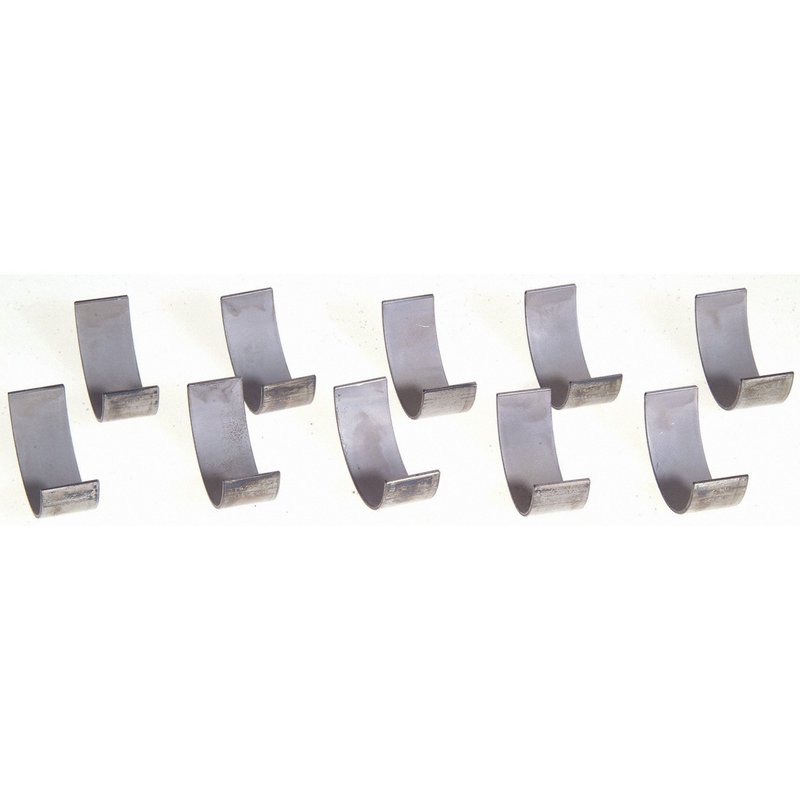

Sealed Power 5-4535P Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 5-4535P

The Sealed Power Engine Connecting Rod Bearing Set 5-4535P is designed for reliable performance in Volvo vehicles including the 850, C70, S60, S70, and V70 models. This bearing set ensures precise fitment and optimal oil clearance for smooth engine operation.

• Compatible with Volvo 850, C70, S60, S70, and V70 models
• Housing bore diameter ranges from 2.0866 to 2.0871 inches (53.0000 to 53.0120 mm)
• Oil clearance between 0.0008 and 0.0024 inches (0.0200 to 0.0610 mm) for proper lubrication
• Overall length max of 0.7677 inches (19.4900 mm)
• Standard shaft diameter between 1.9679 and 1.9685 inches (49.9850 to 50.0000 mm)
• Wall thickness max of 0.0589 inches (1.4960 mm) for durability

Technical Specifications and Performance Details

The 5-4535P connecting rod bearing set from Sealed Power is engineered to meet exacting standards for Volvo engines. The housing bore dimensions ensure a precise fit within the engine block, minimizing play and wear. Oil clearance specifications are tightly controlled to maintain adequate lubrication without excessive leakage, which is critical for bearing longevity and engine efficiency. The overall length and wall thickness provide structural integrity under high-stress conditions typical in Volvo 850, C70, S60, S70, and V70 engines.

Applications and Problem Resolution

This engine connecting rod bearing set is used primarily in the bottom end of Volvo engines to support the connecting rods and allow smooth rotation around the crankshaft. It addresses several common engine issues:

• Reduces bearing wear caused by improper oil clearance
• Prevents engine knocking due to loose bearing fit
• Minimizes risk of connecting rod failure from insufficient wall thickness
• Helps maintain engine oil pressure by ensuring proper bearing dimensions
• Supports engine longevity by providing consistent bearing performance

Installation Notes and Tips

When installing the Sealed Power 5-4535P bearing set, ensure the housing bore dimensions match the engine block specifications. Verify oil clearance using plastigage or a similar measuring tool to confirm it falls within the 0.0008 to 0.0024 inch range. Proper lubrication during installation is essential to prevent initial wear. Follow Volvo manufacturer torque specifications for connecting rod bolts to avoid distortion of the bearing surfaces.

Quality Assurance and Warranty

Sealed Power manufactures the 5-4535P bearing set to meet industry standards for durability and precision. Each bearing is inspected for dimensional accuracy and surface finish to ensure reliable engine performance. While specific warranty details may vary, Sealed Power products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation for exact warranty terms.
