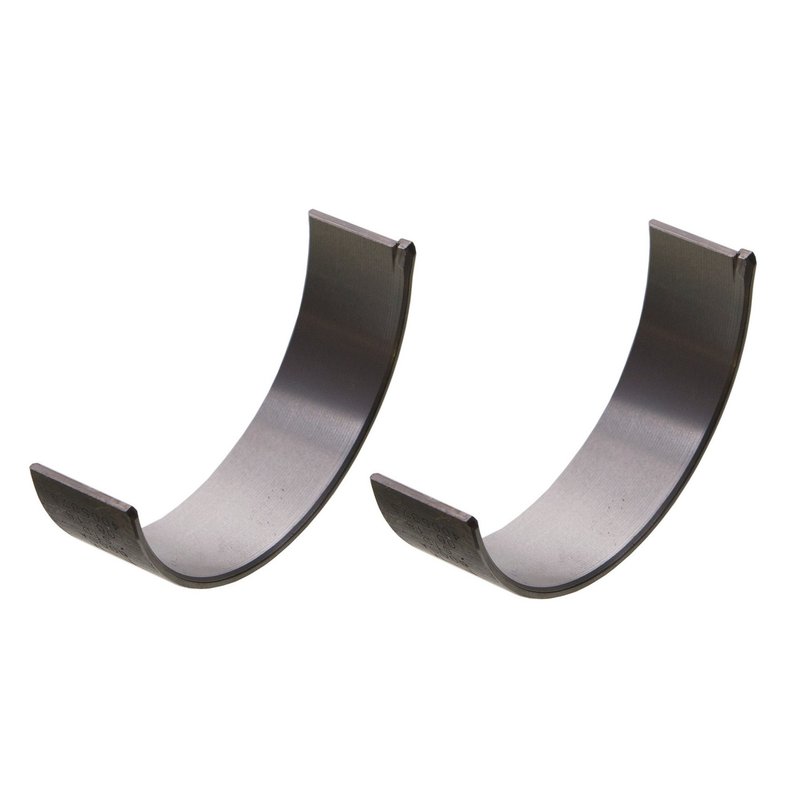

Sealed Power 5070A Engine Connecting Rod Bearing

Sealed Power 5070A Engine Connecting Rod Bearing

Sealed Power 5070A is a standard-size engine connecting rod bearing built for precise fitment in a range of GM and Suzuki applications. With controlled oil clearance and consistent housing bore dimensions, it supports proper rod bearing service on engines used in vehicles such as the Chevrolet Malibu, Cadillac CTS, and Buick Enclave.

Key Features

• Standard-size engine connecting rod bearing for OE-style service work
• Housing bore range: 2.347-2.348 in. (59.619-59.637 mm)
• Standard shaft range: 2.204-2.205 in. (55.992-56.007 mm)
• Oil clearance range: 0.0005-0.0023 in. (0.012-0.058 mm)
• Overall length max: 0.726 in. (18.542 mm)
• Wall thickness max: 0.071 in. (1.804 mm)
• Manufactured with modern materials and ISO/QS certified processes
• Cross-references 12636003 and CB1877A for the same application

Detailed Description

Sealed Power 5070A is engineered as a standard connecting rod bearing for engines that require accurate dimensional control and stable oil film performance. The listed housing bore, shaft diameter, wall thickness, and oil clearance specifications help support proper bearing fit during engine rebuild or repair work. This part number is used across multiple platforms, including Chevrolet Malibu, Buick Enclave, and Cadillac CTS applications, making it a practical choice for technicians servicing GM-based engines. Sealed Power uses advanced materials and certified manufacturing processes to produce components that meet the demands of modern engine operation.

What It Is Used For

• Replacing worn or damaged connecting rod bearings during engine repair
• Restoring proper oil clearance in engines with bearing wear
• Addressing rod knock caused by bearing deterioration
• Supporting rebuilds where standard-size bearing dimensions are required
• Maintaining correct rod-to-crankshaft interface in serviceable engines

Installation Notes and Tips

Verify crankshaft journal size, housing bore, and oil clearance before installation. Clean all mating surfaces thoroughly and confirm that the bearing shells match the engine’s standard-size specification. For best results, follow factory service procedures for torque values, lubrication, and clearance checks. Fits 2008-2012 Chevrolet Malibu, N/A; Fits 2008-2011 Buick Enclave, N/A; Fits 2004-2011 Cadillac CTS, N/A; Fits 2007-2011 GMC Acadia, N/A; Fits 2006-2009 Saab 9-3, N/A.

Quality Assurance

Sealed Power parts are produced using leading-edge materials and ISO- and QS-certified manufacturing practices to support consistent quality and dimensional accuracy. Part number 5070A is built to meet the demands of modern engine service.
