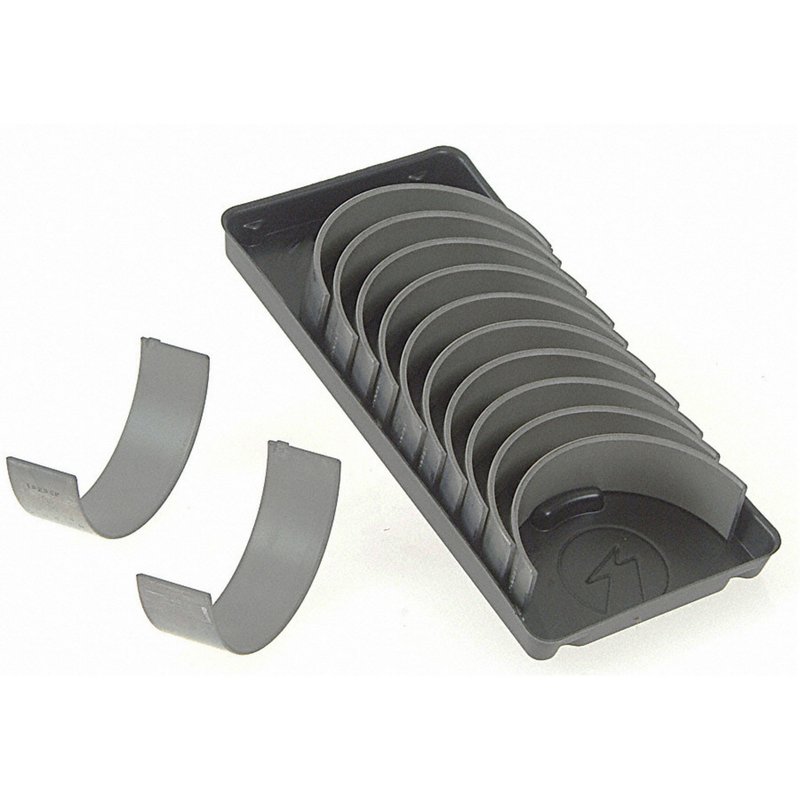

Sealed Power 6-1020CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 6-1020CP

The Sealed Power 6-1020CP engine connecting rod bearing set is designed for reliable performance in a range of Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac vehicles. This bearing set meets precise specifications to ensure proper fit and function in engines requiring exact housing bore and oil clearance tolerances.

• Housing Bore Diameter Range: 2.3747 to 2.3757 inches (60.3170 to 60.3430 mm)
• Oil Clearance Range: 0.0010 to 0.0036 inches (0.0250 to 0.0910 mm)
• Overall Length Max: 0.7530 inches (19.1300 mm)
• Standard Shaft Diameter Range: 2.2492 to 2.2498 inches (57.1300 to 57.1450 mm)
• Wall Thickness Max: 0.0620 inches (1.5750 mm)

Technical Details and Specifications

The 6-1020CP connecting rod bearing set from Sealed Power is engineered to maintain tight tolerances critical for engine durability and smooth operation. The housing bore dimensions ensure a precise fit within the engine block, while the oil clearance specifications provide optimal lubrication between the connecting rod and crankshaft. The bearing's overall length and wall thickness are designed to match OEM standards, supporting consistent engine performance across compatible models.

Compatible Vehicles and Applications

This bearing set is compatible with a variety of Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac models, including but not limited to the Chevrolet Silverado 1500, GMC Sierra 1500, Chevrolet Blazer, Pontiac Grand Prix, and Oldsmobile Bonneville. It is suitable for engines in trucks, SUVs, and passenger cars such as the Chevrolet C10, GMC Jimmy, and Isuzu Hombre, ensuring reliable engine component replacement for these vehicles.

• Resolves excessive bearing wear and reduces engine knocking
• Addresses oil clearance issues that cause low oil pressure
• Corrects bearing fitment problems leading to crankshaft damage
• Prevents premature engine failure due to bearing fatigue
• Improves engine smoothness and reduces vibration

Installation Notes and Tips

When installing the Sealed Power 6-1020CP connecting rod bearing set, ensure the engine block housing bore is within the specified diameter range of 2.3747 to 2.3757 inches. Verify oil clearance using plastigage or a similar measuring tool to maintain the recommended 0.0010 to 0.0036 inch clearance. Proper lubrication during installation is essential to prevent initial wear. Follow manufacturer torque specifications for connecting rod bolts and inspect all mating surfaces for cleanliness and damage before assembly.

Quality Assurance and Warranty

Sealed Power manufactures the 6-1020CP bearing set to meet stringent quality standards, ensuring durability and performance in demanding engine environments. The product is backed by Sealed Power's quality assurance protocols, providing confidence in fitment and function. Warranty coverage details are available through Sealed Power and typically cover defects in materials and workmanship under normal use conditions.
