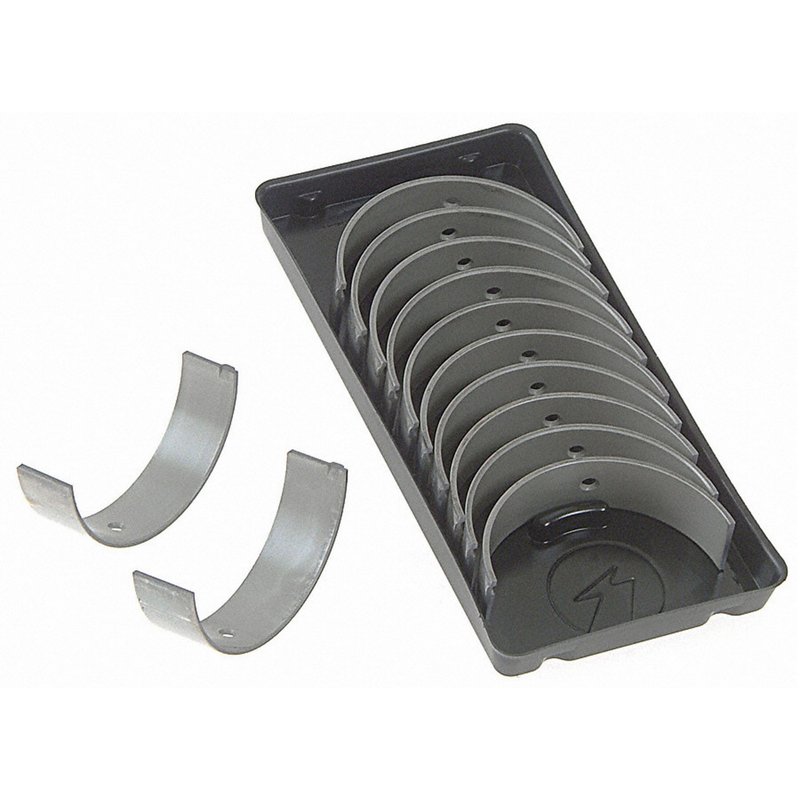

Sealed Power 6-1950CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 6-1950CP

The Sealed Power Engine Connecting Rod Bearing Set 6-1950CP is designed for reliable performance in Chevrolet and Pontiac engines. This bearing set is engineered to meet precise specifications, ensuring proper fit and function in classic models like the Bel Air, Corvette, El Camino, Impala, Laurentian, and Parisienne.

• Housing Bore Diameter: 2.4367 to 2.4372 inches (61.8920 to 61.9050 mm)
• Oil Clearance Range: 0.0007 to 0.0032 inches (0.0180 to 0.0810 mm)
• Overall Length Max: 1.0330 inches (26.2400 mm)
• Standard Shaft Diameter: 2.3110 to 2.3120 inches (58.6990 to 58.7250 mm)
• Wall Thickness Max: 0.0620 inches (1.5750 mm)

Technical Specifications and Features

The 6-1950CP connecting rod bearing set from Sealed Power is manufactured to exacting tolerances to ensure optimal engine performance. The housing bore dimensions range narrowly between 2.4367 and 2.4372 inches, providing a precise fit for the connecting rod journals. Oil clearance is carefully controlled between 0.0007 and 0.0032 inches, which is critical for maintaining proper lubrication and minimizing wear. The overall length and wall thickness are designed to match OEM specifications, supporting durability and engine reliability.

Compatible Vehicles and Applications

This engine connecting rod bearing set is compatible with a range of Chevrolet and Pontiac vehicles, including the Bel Air, Corvette, El Camino, Impala, Laurentian, and Parisienne models. The part number 6-1950CP is specifically suited for engines requiring these precise bearing dimensions, making it a suitable replacement for maintaining engine integrity in these classic cars.

• Resolves excessive bearing wear and clearance issues
• Addresses engine knocking caused by worn connecting rod bearings
• Prevents oil pressure loss due to improper bearing fit
• Reduces risk of engine damage from bearing failure
• Supports engine rebuilds requiring OEM specification bearings

Installation Notes and Tips

When installing the Sealed Power 6-1950CP connecting rod bearing set, ensure that the housing bore and shaft diameters are measured accurately to confirm compatibility. Proper oil clearance is essential; verify clearances with a plastigage or micrometer during installation. Clean all components thoroughly to prevent contamination, and follow manufacturer torque specifications for connecting rod bolts. It is recommended to inspect the crankshaft journals for wear or damage before installation.

Quality Assurance and Warranty

Sealed Power bearings are manufactured under strict quality control standards to meet or exceed OEM requirements. The 6-1950CP bearing set undergoes rigorous dimensional and material testing to ensure durability and performance. While specific warranty details are not provided here, Sealed Power products typically come with a limited warranty against manufacturing defects. Consult product documentation or authorized sources for warranty terms.
