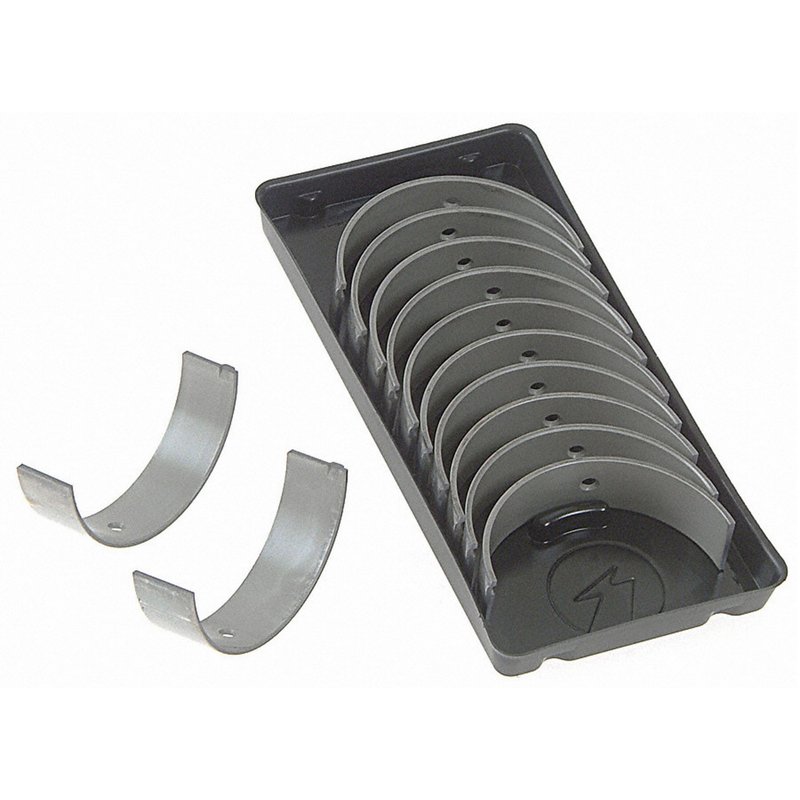

Sealed Power 6-2385CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 6-2385CP

The Sealed Power 6-2385CP engine connecting rod bearing set is engineered for precision and durability in automotive engine rebuilds. Designed to meet exact housing bore and oil clearance specifications, this bearing set supports reliable engine performance in compatible vehicles.

• Housing bore diameter range: 1.9247 to 1.9252 inches (48.887 to 48.900 mm)
• Oil clearance range: 0.0007 to 0.0032 inches (0.018 to 0.081 mm)
• Overall length max: 0.6790 inches (17.25 mm)
• Standard shaft diameter range: 1.7990 to 1.8000 inches (45.695 to 45.720 mm)
• Wall thickness max: 0.0620 inches (1.575 mm)

Technical Specifications and Performance Details

The 6-2385CP connecting rod bearing set from Sealed Power is manufactured to precise tolerances, ensuring optimal fit within the engine's connecting rod housing bore. The tight housing bore range between 1.9247 and 1.9252 inches allows for consistent bearing seating, while the oil clearance specifications between 0.0007 and 0.0032 inches provide adequate lubrication film thickness to reduce friction and wear. The bearing's overall length and wall thickness are designed to maintain structural integrity under engine load conditions. These specifications make the 6-2385CP suitable for use in various automotive engines requiring these exact dimensions.

Applications and Problem Solving

This engine connecting rod bearing set is typically used in engine rebuilds or repairs where precise bearing fitment is critical. It addresses common engine issues such as:

• Excessive bearing wear due to improper oil clearance
• Engine knocking caused by worn or damaged connecting rod bearings
• Reduced engine performance from bearing misalignment
• Oil pressure loss related to bearing clearance problems
• Premature engine failure from bearing fatigue

Installation Notes and Tips

When installing the Sealed Power 6-2385CP bearing set, ensure the housing bore dimensions are within the specified range of 1.9247 to 1.9252 inches. Verify oil clearance using plastigage or a micrometer to maintain the recommended 0.0007 to 0.0032 inch clearance. Proper lubrication during installation is essential to prevent initial wear. Follow manufacturer torque specifications for connecting rod bolts and inspect the crankshaft journal for scoring or damage before assembly.

Quality Assurance and Warranty

Sealed Power manufactures the 6-2385CP bearing set to meet industry standards for durability and performance. Each bearing set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include a limited warranty against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
