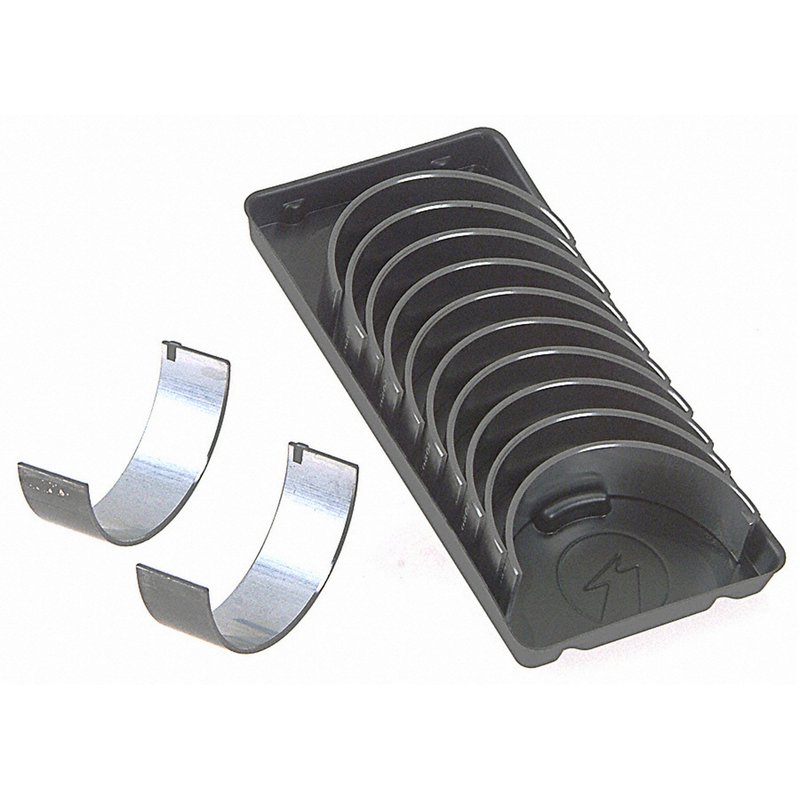

Sealed Power 6-4385RA Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 6-4385RA

The Sealed Power Engine Connecting Rod Bearing Set 6-4385RA is designed for Toyota 4Runner, Pickup, and T100 models. This bearing set ensures precise fitment and reliable performance within the engine's cylinder block components.

• Compatible with Toyota 4Runner, Pickup, and T100 vehicles
• Housing bore diameter ranges from 2.2835 to 2.2842 inches (58.0010 to 58.0200 mm)
• Oil clearance between 0.0009 and 0.0024 inches (0.0230 to 0.0610 mm) for optimal lubrication
• Overall length max of 0.6670 inches (16.9500 mm)
• Wall thickness max of 0.0586 inches (1.4880 mm) for durability

Technical Specifications and Performance Details

This engine connecting rod bearing set features precise housing bore dimensions, with a maximum of 2.2842 inches and a minimum of 2.2835 inches, ensuring a tight and accurate fit within the engine block. The oil clearance is carefully controlled between 0.0009 and 0.0024 inches, which supports proper lubrication and reduces wear during engine operation. The overall length of the bearing is 0.6670 inches, and the wall thickness is maintained at a maximum of 0.0586 inches, providing structural integrity under high-stress conditions. The standard shaft diameter ranges from 2.1650 to 2.1654 inches, matching OEM specifications for Toyota engines.

Applications and Problem Solving

• Replaces worn or damaged connecting rod bearings in Toyota 4Runner, Pickup, and T100 engines
• Addresses engine knocking caused by bearing wear or clearance issues
• Helps prevent oil pressure loss due to improper bearing fit
• Reduces risk of engine overheating from increased friction
• Supports engine rebuilds requiring precise bearing dimensions

Installation Notes and Tips

When installing the Sealed Power 6-4385RA connecting rod bearing set, ensure the housing bore dimensions are within specified tolerances to maintain proper oil clearance. Clean all mating surfaces thoroughly before installation to avoid contamination. Use the correct torque specifications for connecting rod bolts to prevent bearing distortion. It is recommended to inspect the crankshaft journal for wear or damage prior to installation to ensure compatibility.

Quality Assurance and Warranty

Sealed Power manufactures this connecting rod bearing set to meet strict OEM standards for fit and durability. The 6-4385RA part number undergoes rigorous quality control to ensure consistent dimensions and material integrity. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against manufacturing defects, providing confidence in long-term engine performance.
