Sealed Power 6-4500AA Engine Connecting Rod Bearing Set
OE Quality 60-Day Returns
Sealed Power

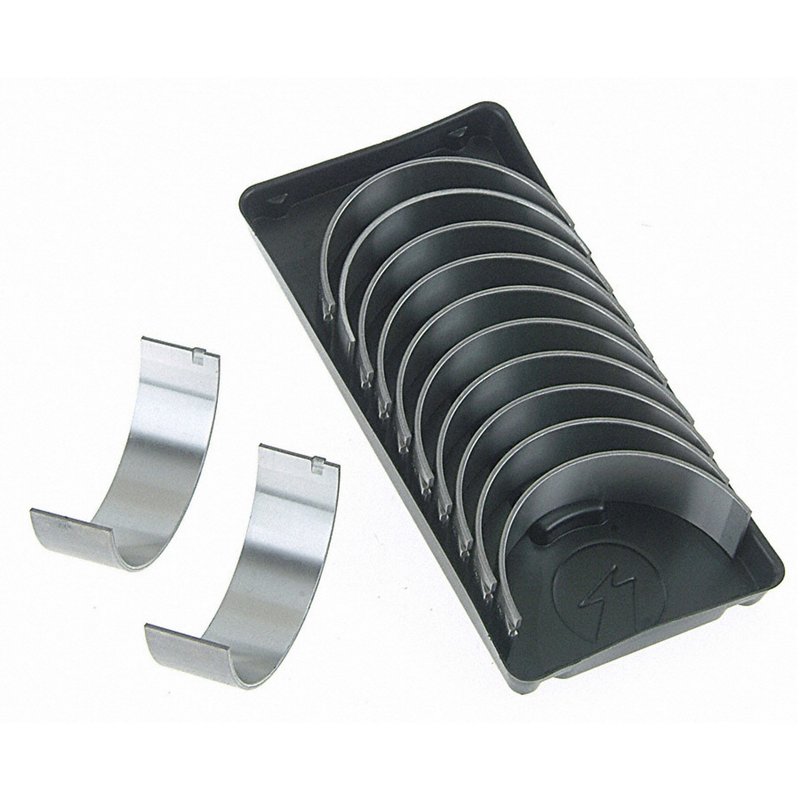

Sealed Power 6-4500AA Engine Connecting Rod Bearing Set

Brand Sealed Power 6-4500AA
Housing Bore Max (Inch) 2.4271
Housing Bore Max (MM) 61.6480
Housing Bore Min (Inch) 2.4264
Housing Bore Min (MM) 61.6310
Oil Clearance Max (Inch) 0.0026
Oil Clearance Max (MM) 0.0660
Oil Clearance Min (Inch) 0.0005
Oil Clearance Min (MM) 0.0130
Overall Length Max (Inch) 0.7840
Overall Length Max (MM) 19.9100
Standard Shaft Max (Inch) 2.3111
Standard Shaft Max (MM) 58.7020
Standard Shaft Min (Inch) 2.3103
Standard Shaft Min (MM) 58.6820
Wall Thickness Max (Inch) 0.0575
Wall thickness Max (MM) 1.4610
Fits Ford and Mercury · 63 vehicles

Standard size. Full set for a precise engine connecting rod bearing replacement.

Leading-edge materials. Built with innovative designs for modern engine demands.

ISO & QS certified. Manufactured to rigorous quality standards.

Cross-references CB1667P6 and CR6712SI for the same application. See all 2.

$127.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $127.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Connecting Rod Bearing Set options

Sealed Power Connecting Rod Bearing Set for Ford A-Series Engines

Sealed Power 6-4500AA is a standard-size engine connecting rod bearing set for Ford A-Series aluminum engines. It is built for precise housing bore and shaft dimensions, controlled oil clearance, and dependable bearing support in service applications such as the Ford F-150, Mustang, Windstar, and related models.

Key Features

  • Standard size connecting rod bearing set for A-Series aluminum engines
  • Full set configuration for engine rebuild and repair work
  • Housing bore range: 2.4264-2.4271 in. (61.6310-61.6480 mm)
  • Standard shaft range: 2.3103-2.3111 in. (58.6820-58.7020 mm)
  • Oil clearance range: 0.0005-0.0026 in. (0.0130-0.0660 mm)
  • Overall length: up to 0.7840 in. (19.9100 mm)
  • Wall thickness: up to 0.0575 in. (1.4610 mm)
  • Cross-reference part numbers: CB1667P6, CR6712SI

Detailed Description

Sealed Power 6-4500AA is engineered for standard-size connecting rod bearing service in Ford engines that use the A-Series aluminum design. The bearing dimensions are specified for consistent fitment, with tight housing bore and shaft tolerances that support proper oil film control during engine operation. Sealed Power states that its parts use advanced materials and ISO- and QS-certified manufacturing processes to meet the demands of modern engines. This part is listed for Ford F-150, Ford Mustang, Ford Windstar, Ford Freestar, Ford E-150, Ford E-250, Ford Thunderbird, Mercury Cougar, and related applications across the 1996-2008 model years.

Vehicle Fitment

  • Fits 2005-2008 Ford F-150, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1997-2003 Ford F-150, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 2004-2007 Ford Freestar, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 2004 Ford F-150 Heritage, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1996-2004 Ford Mustang, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 2003 Ford E-150, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 2003 Ford E-150 Club Wagon, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 2003 Ford E-250, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1996-2003 Ford Windstar, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1997-2002 Ford E-150 Econoline, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1997-2002 Ford E-150 Econoline Club Wagon, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1997-2002 Ford E-250 Econoline, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1996-1997 Ford Thunderbird, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.
  • Fits 1996-1997 Mercury Cougar, N/A. Fits standard size engine connecting rod bearings for A-Series aluminum engines.

Common Repair Uses

  • Replacing worn connecting rod bearings during an engine rebuild
  • Restoring proper oil clearance in Ford A-Series aluminum engines
  • Addressing rod bearing noise caused by bearing wear or damage
  • Correcting low oil pressure concerns related to bearing clearance
  • Repairing engine bottom-end wear in high-mileage Ford F-150 and Mustang applications

Installation Notes and Tips

Verify crankshaft journal size, housing bore, and oil clearance before assembly. Clean all bearing surfaces thoroughly and follow factory torque specifications and assembly procedures. Confirm that the engine uses the standard-size A-Series aluminum application listed for this part number 6-4500AA before installation.

Quality Assurance

Sealed Power uses modern materials and certified manufacturing processes to produce engine components that meet demanding service requirements. Part number 6-4500AA is built to standard-size specifications for accurate fit and repeatable engine rebuild results.

Related reading

This part fits 63 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2008FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007FordFreestar4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007FordFreestar3.9LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006FordFreestar4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006FordFreestar3.9LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005FordFreestar4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005FordFreestar3.9LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004FordF-150 Heritage4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004FordFreestar4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004FordFreestar3.9LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004FordMustang3.9LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordE-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordE-150 Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordE-2504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1998FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordE-150 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordE-150 Econoline Club Wagon4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordE-250 Econoline4.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordF-1504.2LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordThunderbird3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1997MercuryCougar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1996FordMustang3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1996FordThunderbird3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1996FordWindstar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1996MercuryCougar3.8LV6N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
CB1667P6CR6712SI
