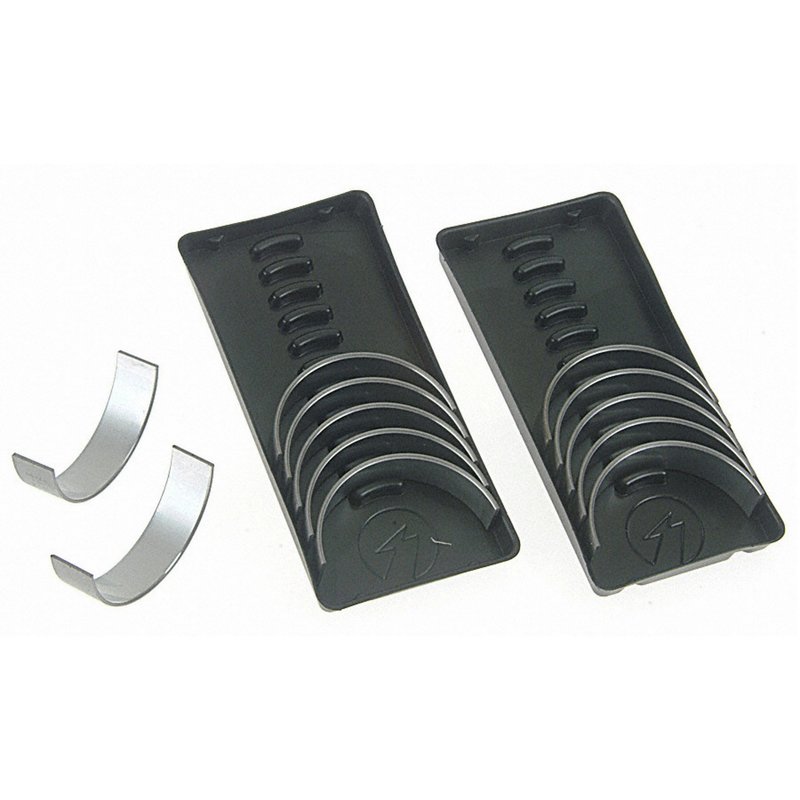

Sealed Power 6-4840A Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 6-4840A

The Sealed Power Engine Connecting Rod Bearing Set 6-4840A is designed for reliable performance in Dodge, Jeep, and Ram vehicles. This bearing set is engineered to meet precise specifications, ensuring proper fit and function in models such as the Ram 1500, Jeep Grand Cherokee, and Dodge Dakota.

• Housing Bore Diameter: 2.4092 to 2.4097 inches (61.1940 to 61.2060 mm)
• Oil Clearance Range: 0.0005 to 0.0018 inches (0.0130 to 0.0460 mm)
• Overall Length Max: 0.6550 inches (16.6400 mm)
• Standard Shaft Diameter: 2.2794 to 2.2797 inches (57.8970 to 57.9040 mm)
• Wall Thickness Max: 0.0646 inches (1.6410 mm)

Technical Specifications and Performance Details

The 6-4840A connecting rod bearing set from Sealed Power is manufactured to exacting tolerances to ensure optimal engine performance and durability. The housing bore dimensions range narrowly between 2.4092 and 2.4097 inches, providing a precise fit for the connecting rod journals. Oil clearance is carefully controlled between 0.0005 and 0.0018 inches, which is critical for maintaining proper lubrication and minimizing wear during engine operation. The overall length and wall thickness specifications contribute to the bearing’s structural integrity and compatibility with the engine block components.

Compatible Vehicles and Applications

This engine connecting rod bearing set is compatible with a range of Dodge, Jeep, and Ram models, including:

• Dodge Dakota
• Dodge Durango
• Jeep Commander
• Jeep Grand Cherokee
• Jeep Liberty
• Jeep Nitro
• Ram 1500

It is specifically designed to meet the requirements of these vehicles’ engine cylinder block components, ensuring proper fitment and reliable operation.

Common Issues Addressed by This Bearing Set

• Excessive engine noise due to worn connecting rod bearings
• Reduced oil pressure caused by improper bearing clearances
• Engine knocking or vibration from bearing failure
• Premature bearing wear from inadequate lubrication
• Engine overheating related to bearing friction

Installation Notes and Tips

When installing the Sealed Power 6-4840A connecting rod bearing set, ensure that all mating surfaces are clean and free of debris. Verify the housing bore and shaft dimensions to confirm compatibility. Proper torque specifications should be followed to avoid distortion or damage to the bearings. It is recommended to check oil clearance with plastigage or a similar measuring tool during installation to maintain the specified range of 0.0005 to 0.0018 inches.

Quality Assurance and Warranty Information

Sealed Power manufactures this connecting rod bearing set to meet industry standards for durability and performance. The product undergoes rigorous quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power typically offers coverage against manufacturing defects, providing confidence in the reliability of part number 6-4840A for your Dodge, Jeep, or Ram engine repair needs.
