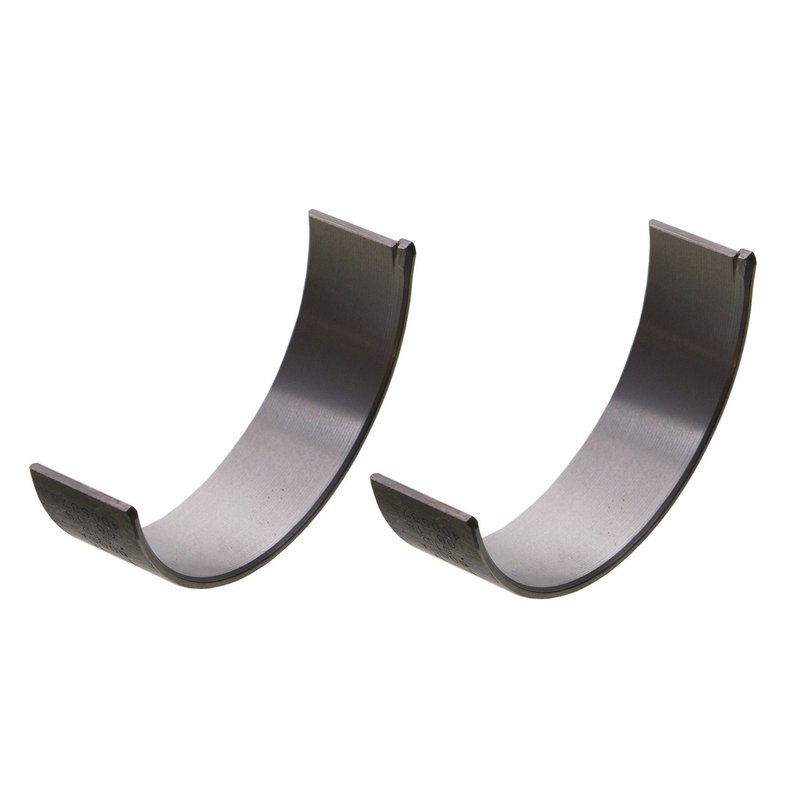

Sealed Power 6000A Engine Connecting Rod Bearing

Reliable Engine Connecting Rod Bearing for Chrysler and Dodge Vehicles

The Sealed Power 6000A engine connecting rod bearing is engineered to meet precise specifications for a range of Chrysler, Dodge, Jeep, Ram, and Volkswagen models. Designed to maintain optimal oil clearance and housing bore dimensions, this bearing supports smooth engine operation and durability.

• Housing Bore Diameter: 62.174 mm (min) to 62.186 mm (max)
• Oil Clearance Range: 0.011 mm (min) to 0.061 mm (max)
• Overall Length: 17.64 mm (min) to 17.90 mm (max)
• Standard Shaft Diameter: 58.991 mm (min) to 59.009 mm (max)
• Wall Thickness Maximum: 1.577 mm

Precision Engine Bearing Specifications

The Sealed Power 6000A connecting rod bearing is manufactured to tight tolerances to ensure proper fit and function within the engine assembly. The housing bore dimensions between 62.174 mm and 62.186 mm provide a secure fit, while the oil clearance range from 0.011 mm to 0.061 mm allows for adequate lubrication and heat dissipation. The overall length and shaft diameter specifications ensure compatibility with standard engine shafts, maintaining engine balance and reducing wear. This bearing is suitable for use in various Chrysler, Dodge, Jeep, Ram, and Volkswagen engines, including models such as the Dodge Charger, Jeep Wrangler JK, Ram 1500 Classic, and Volkswagen Routan.

Compatible Vehicles and Applications

• Chrysler 200, 300, Town & Country, and Grand Caravan
• Dodge Avenger, Challenger, Charger, Durango, Journey
• Jeep Grand Cherokee, Wrangler, Wrangler JK
• Ram 1500, 1500 Classic, ProMaster 1500, 2500, 3500
• Volkswagen Routan

Common Engine Issues Addressed

• Excessive bearing wear causing engine knocking
• Improper oil clearance leading to lubrication failure
• Reduced engine performance due to bearing misfit
• Overheating from insufficient bearing wall thickness
• Vibration and noise from worn connecting rod bearings

Installation Notes and Tips

Ensure the engine block and connecting rod journals are clean and free of debris before installation. Verify the housing bore and shaft dimensions match the bearing specifications to maintain proper oil clearance. Use appropriate assembly lubricant during installation to prevent initial wear. Follow manufacturer torque specifications for connecting rod bolts to avoid bearing distortion.

Quality Assurance and Warranty

Sealed Power engine bearings are manufactured to meet industry standards for durability and performance. The 6000A bearing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Sealed Power products typically conform to OEM quality requirements for engine components.
