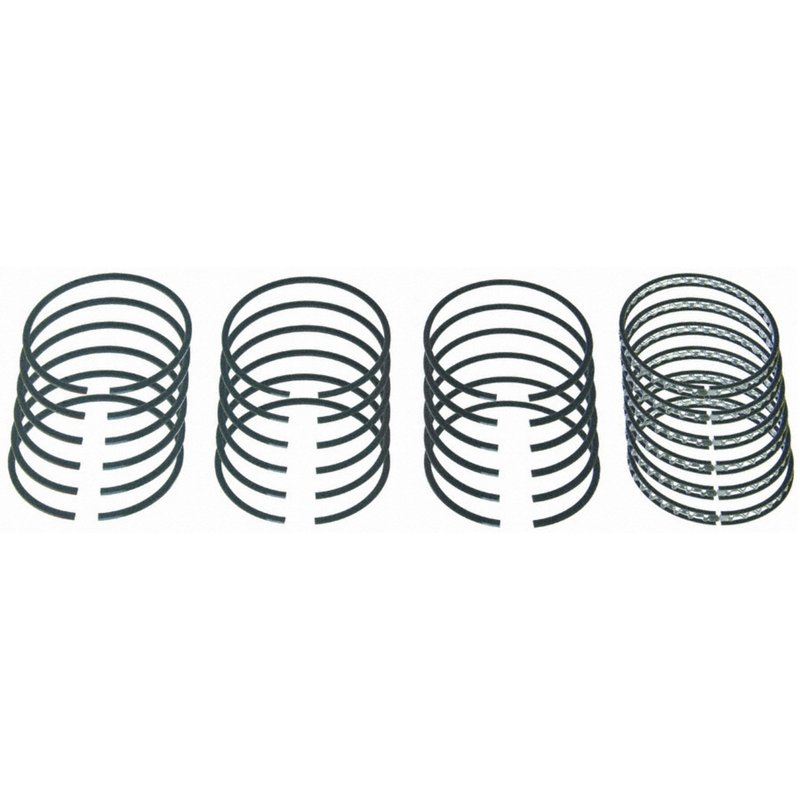

Sealed Power 677X Engine Piston Ring Set

Sealed Power 677X Vintage Piston Ring Set

Sealed Power 677X is a vintage engine piston ring set for standard 3.5625-inch bore applications. Built for 6-cylinder rebuilds, it uses grey iron top rings, a grey iron second ring with phosphate coating, and a 3-piece flex vent oil ring design for classic engine service.

Key Features

• Standard size piston ring set for 3.5625-inch bore diameter
• Top ring uses reverse torsional face design for controlled sealing
• Second ring uses taper face design with grey iron and phosphate coating
• Oil ring uses a 3-piece flex vent design
• Ring groove widths: 3/32 x 1/8 x 3/16
• Built for 6-cylinder engine applications
• Sealed Power 677X is intended for vintage rebuilds over 35 years old

Detailed Description

The Sealed Power 677X piston ring set is made for classic engine rebuilds that require standard-size rings with a 3.5625-inch bore. The ring package includes a grey iron top ring with a reverse torsional face, a grey iron second ring with phosphate coating and taper face, and a 3-piece flex vent oil ring to support cylinder sealing and oil control in older engines. This part number is a practical choice for vintage 6-cylinder rebuilds where original-style dimensions matter. If you are restoring a classic Chevrolet, Ford, or Plymouth six-cylinder engine, Sealed Power 677X provides the ring dimensions and materials needed for a proper rebuild.

Sealed Power Vintage components are built for applications more than 35 years old and are manufactured under ISO and QS certified processes to support consistent fit and long service life. This part cross-references Anchor 2567 for the same application.

Common Rebuild Issues It Can Address

• Low compression from worn or out-of-round piston rings
• Excessive oil consumption caused by tired oil control rings
• Blow-by from poor cylinder sealing
• Smoke during acceleration from worn ring packs
• Loss of performance in a vintage 6-cylinder engine rebuild

Installation Notes and Tips

Confirm bore diameter, ring groove widths, and cylinder condition before assembly. The Sealed Power 677X is a standard-size set and is not file fit, so ring end gaps should be checked during installation and matched to the engine builder’s specifications. Proper cylinder honing, cleaning, and ring orientation are important for sealing performance in classic engine rebuilds.

Quality Assurance

Sealed Power Vintage components are produced with leading-edge materials and ISO- and QS-certified manufacturing processes to support durability and rebuild consistency. Part number 677X is built for vintage engine service where correct dimensions and dependable ring sealing are critical.
