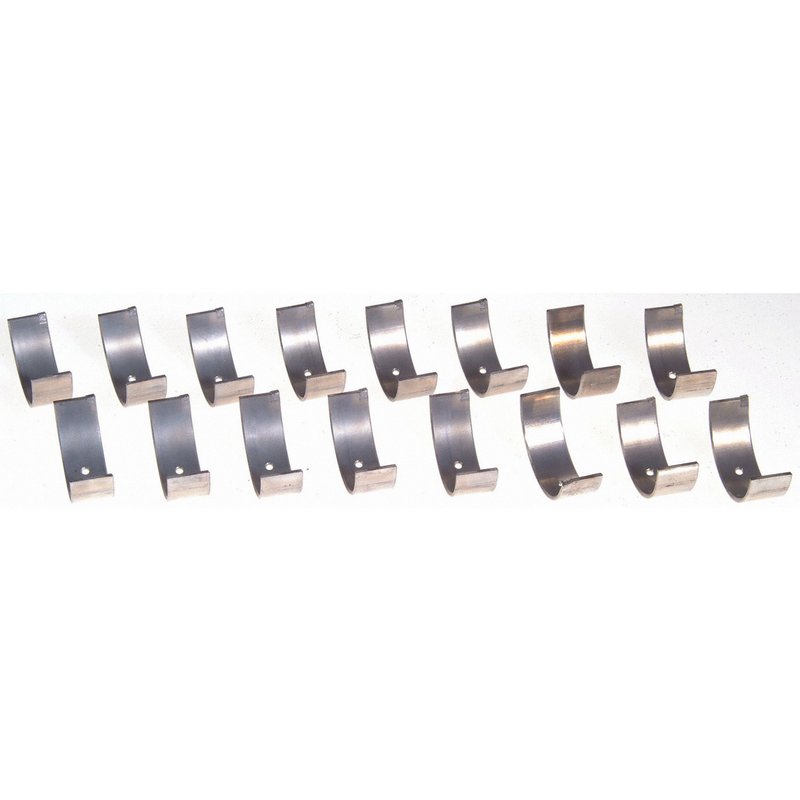

Sealed Power 8-1505CAA Engine Connecting Rod Bearing Set

Sealed Power 8-1505CAA Connecting Rod Bearings

Sealed Power 8-1505CAA is a standard-size engine connecting rod bearing set for vintage Ford rebuilds. It is built for 1953 Ford F-100, F-250, and F-350 applications where correct oil clearance, shaft fit, and housing bore dimensions matter during engine service.

Key Features

• Standard size connecting rod bearing set for classic engine rebuilds
• Fits 1953 Ford F-100, F-250, and F-350
• Housing bore range: 2.2905-2.2910 in. (58.1790-58.1910 mm)
• Standard shaft range: 2.1380-2.1390 in. (54.3050-54.3310 mm)
• Oil clearance range: 0.0009-0.0030 in. (0.0230-0.0760 mm)
• Overall length: 0.7700 in. (19.5600 mm)
• Wall thickness up to 0.0753 in. (1.9130 mm)
• Sealed Power Vintage components are made for applications over 35 years old

Detailed Description

Sealed Power 8-1505CAA is engineered for vintage engine service where accurate bearing dimensions are critical to restoring proper rod journal support and oil control. The standard-size design supports rebuild work on 1953 Ford F-100, F-250, and F-350 engines, and the published housing bore, shaft, and oil clearance specifications help match the bearing to the engine’s original requirements. Sealed Power’s Vintage component line is aimed at older applications and uses modern materials with ISO- and QS-certified manufacturing practices for consistent rebuild results. This part cross-references Monroe Shocks & Struts (e.g., 8B1945, CB15P8) for the same application.

Common Repair Uses

• Restoring rod bearing clearance in a vintage Ford engine rebuild
• Replacing worn connecting rod bearings that cause low oil pressure or bearing noise
• Correcting rod knock related to bearing wear or fatigue
• Addressing scoring, pitting, or loss of bearing material on older engines
• Bringing a classic 1953 Ford F-100, F-250, or F-350 engine back to service

Installation Notes

Verify crankshaft journal size, rod bore condition, and oil clearance before assembly. Clean all mating surfaces thoroughly, measure each journal during rebuild, and confirm that the bearing dimensions match the engine specification before final torque. For best results, follow the factory service manual for the specific 1953 Ford engine being serviced. Search phrase support: 1953 Ford F-100 connecting rod bearing set, 1953 Ford F-250 engine bearing replacement, and 1953 Ford F-350 standard-size rod bearings.

Quality Assurance

Sealed Power Vintage components are manufactured for older applications using modern materials and ISO/QS-certified processes to support consistent fit and long-term durability in classic engine rebuilds.
