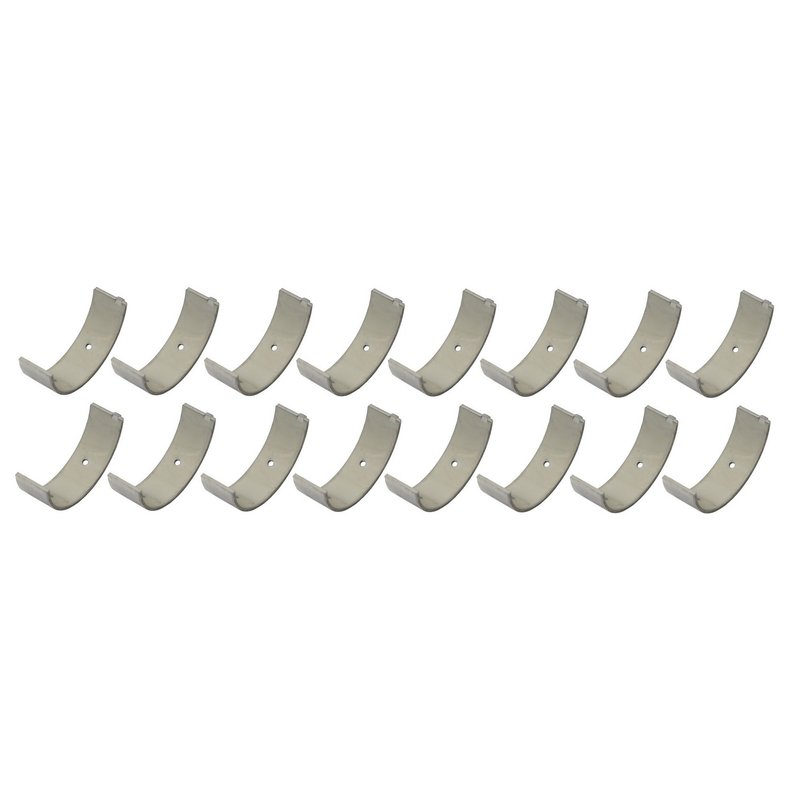

Sealed Power 8-2000CPA Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 8-2000CPA

The Sealed Power Engine Connecting Rod Bearing Set 8-2000CPA is designed for reliable performance in Ford and Mercury engines. This bearing set is engineered to meet precise specifications, ensuring proper fit and function in models like the Ford F-100, F-250, F-350, Colony Park, and Mercury Thunderbird.

• Housing Bore Diameter: 2.3120 to 2.3128 inches (58.7250 to 58.7450 mm)
• Oil Clearance Range: 0.0005 to 0.0028 inches (0.0130 to 0.0710 mm)
• Overall Length Max: 0.7460 inches (18.9500 mm)
• Standard Shaft Diameter: 2.1880 to 2.1888 inches (55.5750 to 55.5960 mm)
• Wall Thickness Max: 0.0615 inches (1.5620 mm)

Technical Specifications and Performance Details

The 8-2000CPA connecting rod bearing set from Sealed Power is manufactured to exacting tolerances to ensure optimal engine performance and durability. The housing bore dimensions range narrowly between 2.3120 and 2.3128 inches, providing a precise fit for the connecting rod housing. Oil clearance is critical for bearing lubrication and wear prevention; this set maintains a clearance between 0.0005 and 0.0028 inches, supporting efficient oil flow and minimizing friction. The overall length and wall thickness are engineered to maintain structural integrity under engine stress, with a maximum length of 0.7460 inches and wall thickness up to 0.0615 inches. These specifications make the bearing set suitable for heavy-duty applications in Ford and Mercury vehicles.

Compatible Vehicles and Applications

This engine connecting rod bearing set is compatible with a range of Ford and Mercury models, including:

• Ford F-100
• Ford F-250
• Ford F-350
• Ford Colony Park
• Mercury Thunderbird

It is designed to replace worn or damaged bearings in these vehicles, ensuring smooth engine operation and longevity.

Common Issues Addressed by This Bearing Set

• Excessive engine noise due to worn connecting rod bearings
• Reduced oil pressure caused by improper bearing clearance
• Engine knocking or vibration from bearing failure
• Premature bearing wear from inadequate lubrication
• Overheating of engine components related to bearing friction

Installation Notes and Tips

• Verify housing bore and shaft dimensions before installation to ensure compatibility
• Clean all mating surfaces thoroughly to prevent contamination
• Use proper torque specifications when tightening connecting rod caps
• Check oil clearance with plastigage or micrometer to confirm correct fit
• Replace bearings in matched sets to maintain engine balance

Quality Assurance and Warranty Information

Sealed Power manufactures the 8-2000CPA bearing set to meet industry standards for durability and precision. Each bearing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
