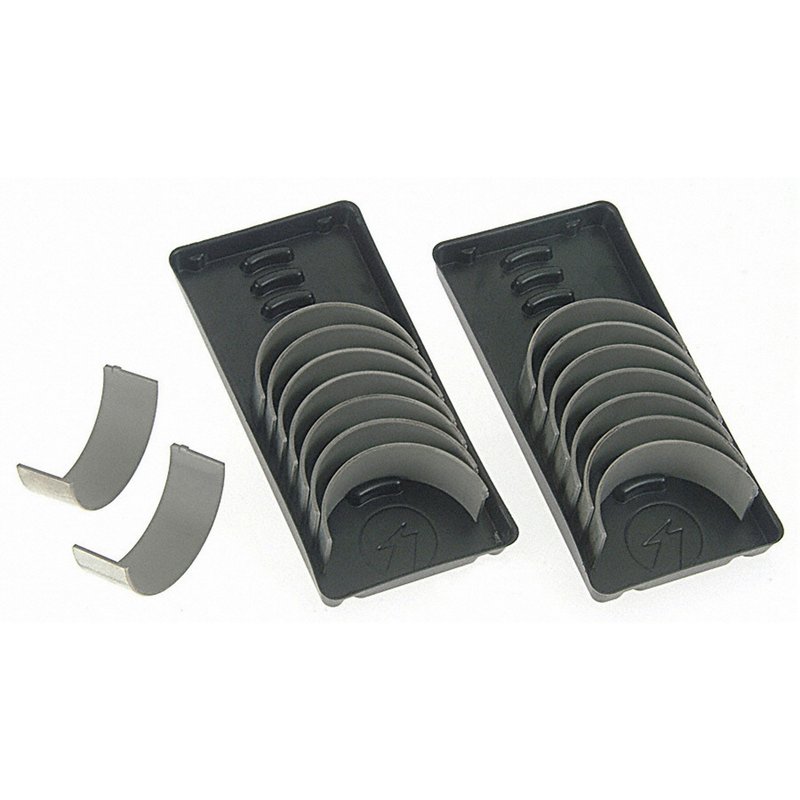

Sealed Power 8-2410CP Engine Connecting Rod Bearing Set
| Brand | Sealed Power 8-2410CP |
|---|---|
| Housing Bore Max (Inch) | 2.5000 |
| Housing Bore Max (MM) | 63.5000 |
| Housing Bore Min (Inch) | 2.4995 |
| Housing Bore Min (MM) | 63.4870 |
| Oil Clearance Max (Inch) | 0.0036 |
| Oil Clearance Max (MM) | 0.0910 |
| Oil Clearance Min (Inch) | 0.0011 |
| Oil Clearance Min (MM) | 0.0280 |
| Overall Length Max (Inch) | 0.9750 |
| Overall Length Max (MM) | 24.7700 |
| Standard Shaft Max (Inch) | 2.3740 |
| Standard Shaft Max (MM) | 60.3000 |
| Standard Shaft Min (Inch) | 2.3730 |
| Standard Shaft Min (MM) | 60.2740 |
| Wall Thickness Max (Inch) | 0.0622 |
| Wall thickness Max (MM) | 1.5800 |
| Fits | — |
Standard size. Full connecting rod bearing set for a precise rebuild fit.
Vintage components. Restores classic engines with like-new performance.
ISO & QS certified. Manufactured with leading-edge materials for lasting reliability.
Cross-references 8B581P, CB581P and CB581P8 for the same application. See all 4.
Sealed Power 8-2410CP Connecting Rod Bearings
Sealed Power 8-2410CP is a vintage engine connecting rod bearing set for classic rebuilds that need standard-size fitment and consistent oil clearance control. Built for applications over 35 years old, it supports restoration work on older Chevrolet and Ford engine builds where accurate bearing dimensions matter.
Key Features
- Standard size connecting rod bearing set for vintage engine rebuilds
- Full set configuration for complete rod bearing service
- Housing bore range: 2.4995-2.5000 in. (63.4870-63.5000 mm)
- Standard shaft range: 2.3730-2.3740 in. (60.2740-60.3000 mm)
- Oil clearance range: 0.0011-0.0036 in. (0.0280-0.0910 mm)
- Overall length: 0.9750 in. (24.7700 mm)
- Wall thickness up to 0.0622 in. (1.5800 mm)
- Interchanges with 8B581P, CB581P, CB581P8, and CR827CP
Detailed Description
Sealed Power 8-2410CP is engineered for classic engine rebuilds that require standard-size connecting rod bearings with precise dimensional control. The bearing geometry is specified for a 2.4995-2.5000 inch housing bore and a 2.3730-2.3740 inch standard shaft, helping maintain the oil clearance needed for stable lubrication in restored engines. For buyers searching for vintage Chevrolet or Ford engine connecting rod bearings, this part number provides a direct service option for older applications where original-style dimensions are critical. Sealed Power’s vintage component line is aimed at engines over 35 years old and uses certified manufacturing processes and modern materials to support rebuild consistency.
Common Repair Uses
- Restoring low oil pressure caused by worn rod bearings
- Correcting bearing noise from excessive clearance
- Replacing damaged bearings during a full engine rebuild
- Returning classic Chevrolet or Ford engines to standard-size service
- Addressing scoring or wear found during teardown inspection
Installation Notes and Tips
Verify crankshaft journal size, rod housing bore, and oil clearance before assembly. Clean all mating surfaces thoroughly, measure each journal with proper precision tools, and confirm that the bearing shells match the engine’s standard-size specification. Follow the engine builder’s torque and lubrication procedures during installation, and inspect clearances after final assembly to confirm proper fit.
Quality Assurance
Sealed Power vintage components are manufactured with ISO- and QS-certified processes and are intended for long-term service in classic engine rebuilds. Part number 8-2410CP cross-references 8B581P and CB581P for the same application.
