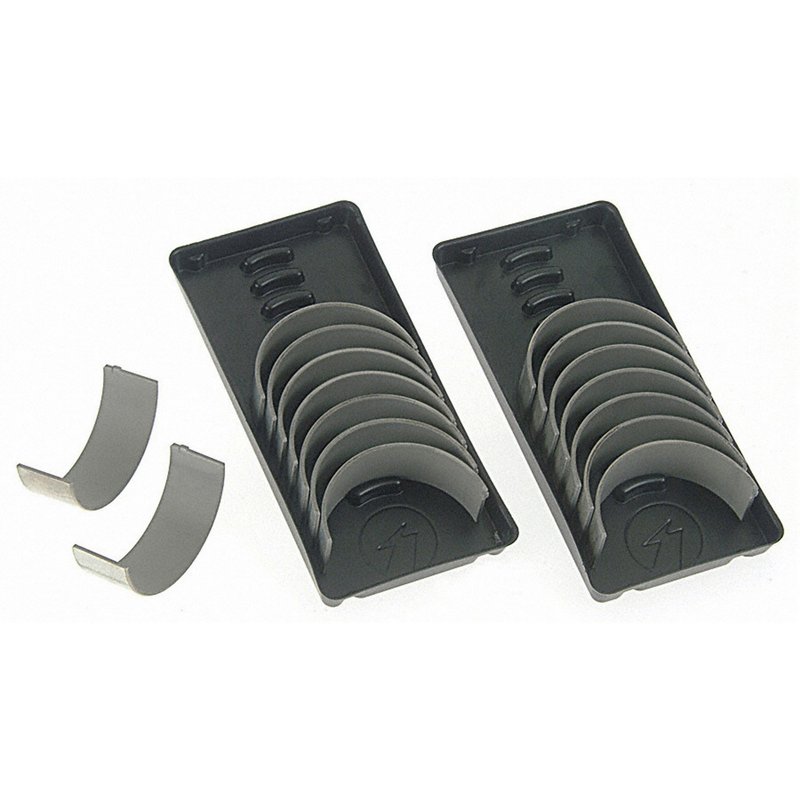

Sealed Power 8-3345P Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 8-3345P

The Sealed Power Engine Connecting Rod Bearing Set 8-3345P is engineered for reliable performance in Cadillac and Oldsmobile vehicles. Designed to meet precise specifications, this bearing set supports smooth engine operation in models such as the Cutlass, DeVille, and Eldorado.

• Housing Bore Diameter: 2.6243 to 2.6250 inches (66.6570 to 66.6750 mm)
• Oil Clearance Range: 0.0005 to 0.0028 inches (0.0130 to 0.0710 mm)
• Overall Length Max: 0.8310 inches (21.1100 mm)
• Standard Shaft Diameter: 2.4990 to 2.5000 inches (63.4750 to 63.5000 mm)
• Wall Thickness Max: 0.0619 inches (1.5720 mm)

Technical Specifications and Performance Details

This engine connecting rod bearing set is manufactured to exacting tolerances to ensure optimal fit and function within the engine block. The housing bore dimensions range narrowly between 2.6243 and 2.6250 inches, providing a precise fit for the connecting rod journals. Oil clearance is carefully controlled between 0.0005 and 0.0028 inches, which is critical for maintaining proper lubrication and minimizing wear during engine operation. The overall length and wall thickness specifications contribute to the bearing's durability and ability to withstand engine stresses.

Compatible Vehicles and Applications

Compatible with a range of Cadillac and Oldsmobile models, this bearing set is suitable for:

• Cadillac DeVille, Eldorado, Fleetwood, Seville, and Toronado
• Oldsmobile Cutlass, Cutlass Supreme, Cutlass Salon, Delta 88, Starfire, Commercial Chassis, and Custom Cruiser

Part number 8-3345P is specifically designed to meet the requirements of these vehicles' engine connecting rod bearing assemblies.

Common Issues Addressed by This Bearing Set

• Excessive bearing wear causing engine knocking
• Insufficient oil clearance leading to bearing seizure
• Vibration and noise from worn connecting rod bearings
• Reduced engine performance due to bearing failure
• Preventing premature engine damage from improper bearing fit

Installation Notes and Tips

• Ensure the housing bore dimensions match the specified range for proper fit
• Check oil clearance with plastigage or micrometer to confirm within 0.0005 to 0.0028 inches
• Clean all mating surfaces thoroughly before installation
• Follow manufacturer torque specifications for connecting rod bolts
• Inspect crankshaft journals for wear or damage prior to bearing installation

Quality Assurance and Warranty Information

Sealed Power bearings are manufactured to meet industry standards for durability and precision. The 8-3345P bearing set undergoes rigorous quality control to ensure consistent performance. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation for exact warranty terms.
