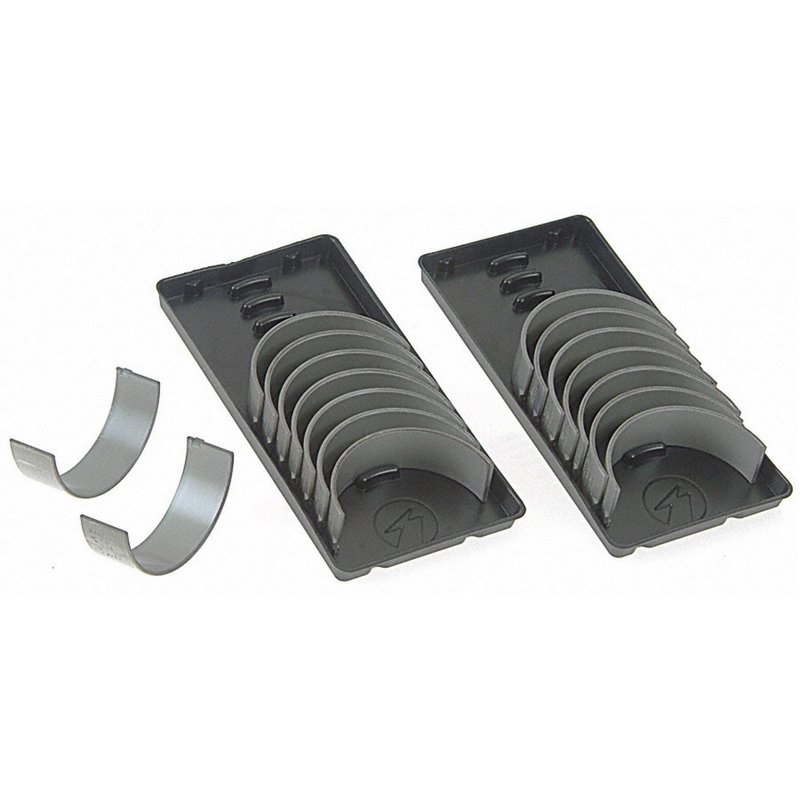

Sealed Power 8-3360CPA Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 8-3360CPA

The Sealed Power 8-3360CPA engine connecting rod bearing set is designed as an OE replacement for Ford 429 and 460 engines. This rod set is engineered to meet precise specifications, ensuring reliable performance in vehicles such as the Ford Mustang, F-150, and Lincoln Continental.

• OE replacement quality for Ford 429 and 460 engine families
• Overplated copper-lead alloy material for durability and wear resistance
• Available in standard and undersized bore sizes (Std-1-10-20-30-40)
• Precise housing bore dimensions: 2.6522 to 2.6530 inches (67.3660 to 67.3860 mm)
• Oil clearance range from 0.0005 to 0.0024 inches (0.0130 to 0.0610 mm)
• Compatible with multiple Ford, Lincoln, and Mercury models

Technical Specifications and Material Details

This engine connecting rod bearing set is manufactured using an overplated copper-lead alloy, providing a balance of strength and conformability. The housing bore maximum and minimum dimensions range narrowly between 2.6522 and 2.6530 inches, ensuring a precise fit within the engine block. The oil clearance specifications, from 0.0005 to 0.0024 inches, support optimal lubrication and reduce wear during engine operation. The overall length maxes out at 0.8660 inches, with wall thickness up to 0.0762 inches, designed to maintain structural integrity under high stress.

Compatible Vehicles and Applications

The Sealed Power 8-3360CPA rod bearing set is compatible with a range of Ford, Lincoln, and Mercury vehicles equipped with 429 and 460 cubic inch displacement engines. Notable compatible models include:

• Ford Mustang and Thunderbird
• Ford F-100, F-150, F-250, F-350, and Econoline series (E-100, E-250, E-350, including Club Wagon variants)
• Lincoln Continental, Grand Marquis, and Mark series such as Marauder and Marquis
• Mercury Cougar and Montego

Common Issues Addressed by This Rod Bearing Set

• Excessive bearing wear causing engine knocking or noise
• Oil clearance irregularities leading to lubrication failure
• Reduced engine performance due to worn connecting rod bearings
• Engine overheating caused by improper bearing fit
• Vibration and imbalance from damaged or undersized bearings

Installation Notes and Tips

When installing the Sealed Power 8-3360CPA connecting rod bearing set, ensure the engine block housing bore dimensions are within specified tolerances (2.6522 to 2.6530 inches). Use proper measuring tools to verify oil clearance between 0.0005 and 0.0024 inches for optimal lubrication. It is recommended to replace bearings in matched sets and inspect connecting rods for wear or damage before installation. Follow manufacturer torque specifications and lubrication procedures during assembly.

Quality Assurance and Warranty Information

Sealed Power manufactures this connecting rod bearing set to meet OEM standards for durability and performance. The overplated copper-lead alloy material is selected for its wear resistance and compatibility with Ford 429 and 460 engines. This product is backed by Sealed Power's quality assurance protocols, ensuring consistent manufacturing quality. Warranty coverage details should be confirmed with the product documentation or manufacturer.
